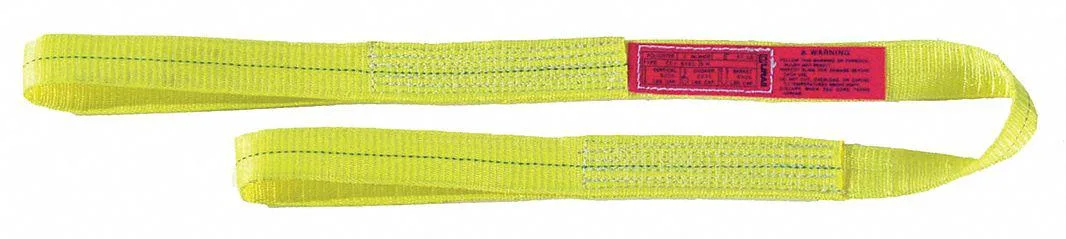

Yellow polyester web sling flat webbing 20 feet long 3 inches wide with reinforced eyes

Lift-all

Lift-all EE1803DFX20 Web Sling Type 3 20 ft 3 in Polyester Yellow

SKU CH-TKJ7-JM8ER

A 20 ft polyester web sling with 11 in eyes rated for 4,800 lb vertical, 3,800 lb choker and 9,600 lb basket hitches

  • Type 3 eye-and-eye design enables versatile hitch configurations
  • 20 ft length provides extended reach for large loads
  • 4,800 lb vertical capacity handles heavy lifting tasks
  • Polyester construction resists abrasion and UV degradation
  • Meets ASME B30.9 and OSHA 1910.184 safety standards

Lift-all EE1803DFX20 Web Sling

The Lift-all EE1803DFX20 is a Type 3 web sling made from single-ply polyester for lifting, pulling and conveying tasks. It measures 20 ft in length with an overall width of 3 in and a thickness of 5/32 in. The yellow colour aids visual inspection on site. This sling suits riggers who need a flat-eye configuration for vertical, choker or basket hitches.

Sustained load behaviour

Under continuous tension the polyester webbing resists stretch and maintains its rated capacities of 4,800 lb vertical, 3,800 lb choker and 9,600 lb basket. The material meets ASME B 30.9 and OSHA 1910.184 standards for repeated use. No basket-hitch ratings are provided for 30- or 60-degree angles, so those configurations must be avoided. Users who require angled basket lifts should select a sling with published angle ratings.

Installation and common issues

Each eye is 11 in long to fit standard hooks and shackles without hardware modification. The single-ply construction keeps the sling light but offers less abrasion resistance than multi-ply alternatives. Inspect the yellow surface for cuts, UV damage or chemical contamination before every lift; any defect requires immediate removal from service.

Highlights

  • Type 3 eye-and-eye design enables versatile hitch configurations
  • 20 ft length provides extended reach for large loads
  • 4,800 lb vertical capacity handles heavy lifting tasks
  • Polyester construction resists abrasion and UV degradation
  • Meets ASME B30.9 and OSHA 1910.184 safety standards

Specifications

BrandLIFT-ALL

Questions about this item

Does the 3 in wide polyester sling generate noticeable heat or require power when left under a 4,800 lb vertical load all day?

No, the sling is a passive polyester web with no electrical components, so it produces no heat and draws no power while supporting its rated vertical capacity of 4,800 lb.

What attachment hardware must I already have to use the 11 in eyes on this Type 3 sling?

You need a suitable hook, shackle or master link that fits an 11 in flat eye and is rated for at least the sling's 4,800 lb vertical capacity.

Can this 20 ft, 3 in wide sling replace an older wire-rope sling rated to the same 9,600 lb basket capacity?

Yes, the polyester web sling meets the same 9,600 lb basket rating and complies with ASME B30.9 and OSHA 1910.184, so it can serve as a direct replacement in compatible rigging.
