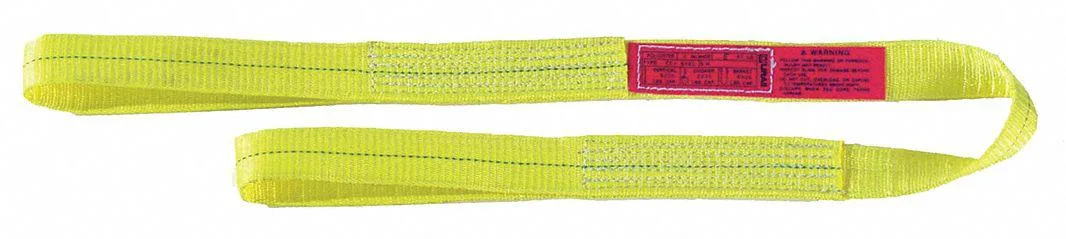

Yellow polyester web sling, flat eye, three inches wide, twelve feet long

Lift-all

Lift-all EE1803DFX12 Web Sling Type 3 12 ft 3 in Polyester Yellow

SKU CH-0D0S-X6KF2

A 12 ft polyester web sling rated for 4,800 lb vertical, 3,800 lb choker and 9,600 lb basket hitches, meeting ASME B 30.9 and OSHA 1910.184 standards

  • Type 3 flat-eye design enables versatile hitch configurations
  • 12 ft length with 11 in eyes provides extended reach for large loads
  • 4,800 lb vertical capacity handles heavy lifting tasks
  • Polyester construction meets ASME B30.9 and OSHA 1910.184 standards
  • 3 in width and 5/32 in thickness balance strength with flexibility

Web Sling Type 3 12 ft

The Lift-all EE1803DFX12 is a flat web sling built from single-ply polyester webbing. It measures twelve feet in overall length with a three-inch width and an eleven-inch eye at each end. The yellow colour aids visual inspection on site. It conforms to ASME B30.9 and OSHA 1910.184 requirements.

Lifting crews needing a light synthetic sling

Teams that require a flexible, non-marring sling for vertical, choker or basket hitches will find the rated capacities of four thousand eight hundred pounds vertical, three thousand eight hundred pounds choker and nine thousand six hundred pounds basket suitable. Operations that need multi-leg assemblies, wire-rope or chain construction, or hardware such as hooks and master links should select a different configuration.

Vertical capacity 4,800 lb

The vertical hitch rating of four thousand eight hundred pounds is the primary figure that determines whether this sling matches the load. Choker and basket ratings derive from this value, so the vertical capacity alone confirms if the part is correct for the intended lift.

Highlights

  • Type 3 flat-eye design enables versatile hitch configurations
  • 12 ft length with 11 in eyes provides extended reach for large loads
  • 4,800 lb vertical capacity handles heavy lifting tasks
  • Polyester construction meets ASME B30.9 and OSHA 1910.184 standards
  • 3 in width and 5/32 in thickness balance strength with flexibility

Specifications

BrandLIFT-ALL

Questions about this item

How wide is the sling body and what is the eye length for rigging hardware?

The sling body is 3 in wide and each eye measures 11 in, suitable for shackles or hooks sized to that width.

What is the correct orientation when placing the Type 3 flat eye into a shackle or hook?

Lay the sling flat so both eyes sit in the same plane, then seat each eye fully into the bow of the shackle or hook saddle without twisting the 5/32 in thick webbing.

When should this polyester web sling be taken out of service?

Remove it if you find cuts, tears, abrasion exposing core yarns, melted or charred fibres, broken stitching, illegible capacity tag, or damage to the 11 in eyes.
