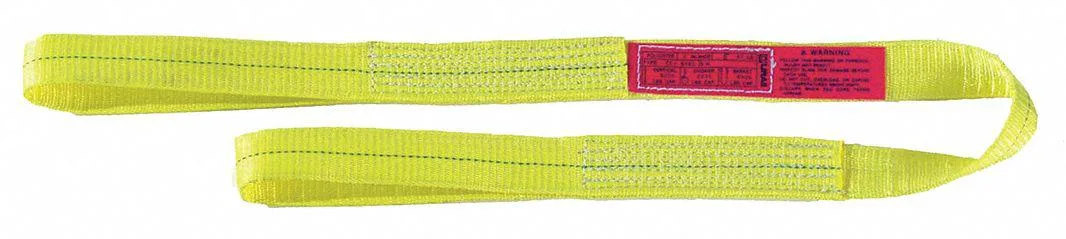

Yellow polyester web sling, flat 3-inch wide body with 11-inch eye loops at each end

Lift-all

Lift-all EE1603DFX4 Web Sling Type 3 4 ft 3 in Polyester Yellow

SKU CH-CMPC-G9GX5

Type 3 flat-eye polyester web sling, 4 ft long by 3 in wide, rated for 3,600 lb vertical, 2,900 lb choker and 7,200 lb basket hitches, meeting ASME B30.9 and OSHA 1910.184

  • Vertical capacity 3,600 lb for heavy lifts
  • Choker capacity 2,900 lb secures loads safely
  • Basket capacity 7,200 lb handles wide items
  • 11 in eyes allow quick hook attachment
  • Meets ASME B 30.9 and OSHA 1910.184 standards

Lift-All EE1603DFX4 Web Sling

The Lift-All EE1603DFX4 is a Type 3 flat web sling made from single-ply polyester webbing. It measures four feet in length with an overall width of three inches and an eye length of eleven inches. The bright yellow colour aids visual inspection on site. It is built for general-purpose lifting, pulling and conveying tasks.

Sustained load behaviour

Under a vertical hitch the sling is rated for three thousand six hundred pounds. A choker hitch reduces the working limit to two thousand nine hundred pounds, while a basket hitch raises it to seven thousand two hundred pounds. The polyester construction resists stretch and abrasion during repeated lifts. Capacity at thirty or sixty degree basket angles is not applicable for this model.

Replaces older slings

This sling replaces worn or damaged web slings that no longer meet ASME B30.9 or OSHA 1910.184 requirements. The upgrade is worthwhile when inspection reveals cuts, heat damage or illegible identification tags on the existing equipment. It is not suited for applications requiring multi-leg bridle configurations or specialised end fittings.

Highlights

  • Vertical capacity 3,600 lb for heavy lifts
  • Choker capacity 2,900 lb secures loads safely
  • Basket capacity 7,200 lb handles wide items
  • 11 in eyes allow quick hook attachment
  • Meets ASME B 30.9 and OSHA 1910.184 standards

Specifications

BrandLIFT-ALL

Questions about this item

Will the polyester webbing overheat or degrade if the sling is left under a 3,600 lb vertical load all day?

The sling is rated for 3,600 lb vertical hitch capacity; polyester webbing does not generate heat under static load and meets ASME B30.9 and OSHA 1910.184 requirements for continuous use.

What hardware must I already have to attach this Type 3 sling, since no hooks are included?

You need suitable shackles, master links or other rigging hardware that match the 3 in eye width and 11 in eye length for a secure connection.

Can I use this 4 ft sling with older alloy-steel shackles rated to WSTDA standards?

Yes, the sling conforms to WSTDA and ASME B30.9, so it is compatible with existing shackles that meet those same standards.
