Yellow polyester web sling, flat eye-and-eye, 3 ft 3 in long, 3 in wide, single ply, 1/8 in thick

Lift-all

Lift-all EE1603DFX3 Web Sling Type 3 3 ft 3 in Polyester Yellow

SKU CH-FMAG-RBYFW

Polyester web sling rated for 3,600 lb vertical, 2,900 lb choker and 7,200 lb basket hitches, meeting ASME B30.9 and OSHA 1910.184 standards

  • Type 3 flat-eye design suits vertical, choker and basket hitches
  • 3,600 lb vertical capacity lifts heavy loads safely
  • 2,900 lb choker rating handles tight-grip lifts
  • 7,200 lb basket capacity supports wide-load rigging
  • Meets ASME B30.9 and OSHA 1910.184 standards

Lift-all Web Sling Type 3

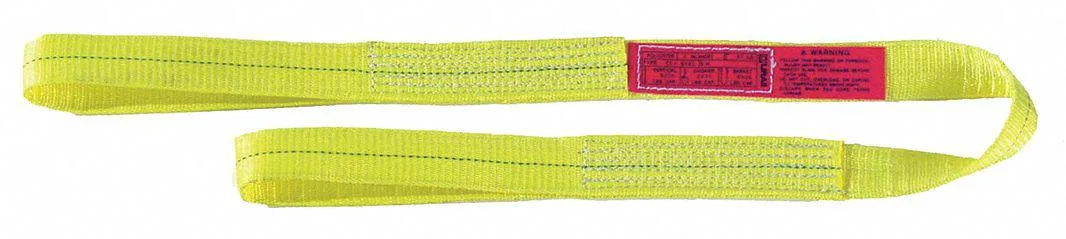

The Lift-all EE1603DFX3 is a flat web sling made from single-ply polyester with reinforced eyes. It measures three feet long and three inches wide with an eye length of eleven inches. The yellow colour aids visual inspection on site. It is rated for vertical hitches up to 3,600 lb, choker hitches up to 2,900 lb and basket hitches up to 7,200 lb.

Simple attachment with reinforced eyes

The sewn eyes slip over hooks, shackles or load points without extra hardware. A single ply keeps the sling light and flexible for quick rigging. Damage usually appears as cuts, abrasion or UV degradation on the flat surface. Inspect the full length and both eyes before each lift and remove the sling if red core fibres become visible.

ASME B30.9 and OSHA 1910.184 compliance

The sling meets ASME B30.9 and OSHA 1910.184 requirements for synthetic web slings. Capacity drops sharply when the basket angle falls below sixty degrees so avoid shallow angles. The polyester material resists many common chemicals but is not suitable for high-temperature environments or prolonged exposure to strong acids or alkalis.

Highlights

  • Type 3 flat-eye design suits vertical, choker and basket hitches
  • 3,600 lb vertical capacity lifts heavy loads safely
  • 2,900 lb choker rating handles tight-grip lifts
  • 7,200 lb basket capacity supports wide-load rigging
  • Meets ASME B30.9 and OSHA 1910.184 standards

Specifications

BrandLIFT-ALL

Questions about this item

How do I verify the sling is safe to use after rigging it?

Check the yellow tag for ASME B30.9 and OSHA 1910.184 markings, confirm the 3 ft 3 in length and 11 in eye length match the job, and inspect the single-ply polyester webbing for cuts or abrasion before every lift.

What comes with the EE1603DFX3 and what must I supply?

The package contains the Type 3 web sling only — 3 ft long, 3 in wide, 1/8 in thick, with 11 in eyes rated for 3,600 lb vertical, 2,900 lb choker and 7,200 lb basket. You must provide hooks, shackles or other end fittings separately.

Which capacity rating should I use when choosing this sling for my lift?

Use 3,600 lb for a straight vertical hitch, 2,900 lb for a choker hitch, or 7,200 lb for a basket hitch; do not apply 30 or 60 degree basket ratings because they are not applicable to this Type 3 configuration.
