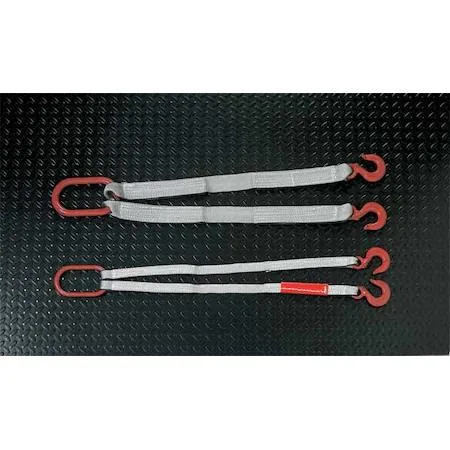

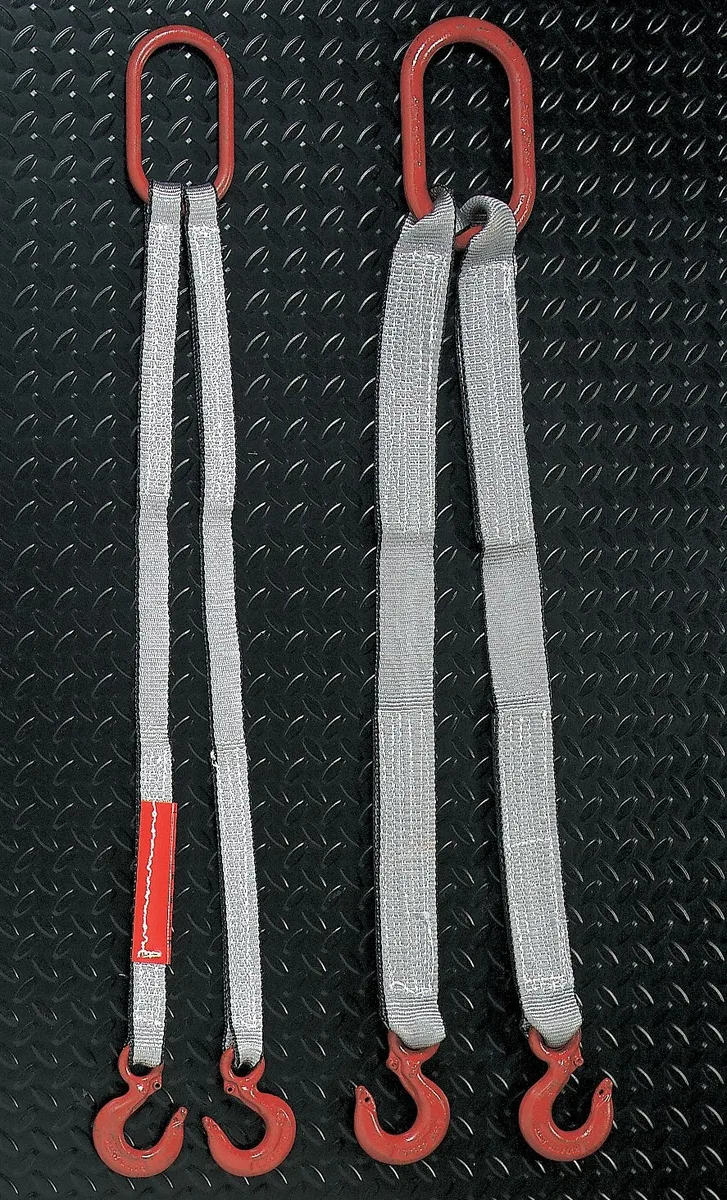

Blue and silver polyester web sling with two legs, one inch wide, six feet long

Lift-all

Lift-all DOSEE1801TFX6 Web Sling Type X 6 ft 1 in Polyester Silver

SKU CH-WDSH-XXAA5

Two-leg polyester web sling rated 1,600 lb at 30 degrees and 2,700 lb at 60 degrees, 6 ft long and 1 in wide, meeting ASME B30.9 and OSHA 1910.184

  • Rated for 1,600 lb basket hitch at 30 degrees
  • Rated for 2,700 lb basket hitch at 60 degrees
  • Meets ASME B30.9 and OSHA 1910.184 standards
  • Two-leg bridle design for balanced load handling
  • Single-ply polyester construction, 5/32 in thick

Bridle web sling for two-leg lifts

This bridle web sling uses a single-ply polyester body with two legs for balanced load handling. The overall width is 1 in and the sling length is 6 ft, giving a compact profile for tight rigging points. It meets ASME B 30.9 and OSHA 1910.184 standards for lifting applications. The blue and silver colour coding helps quick visual identification on site.

Single-ply polyester construction

The Type X design relies on a single ply of polyester webbing rated for the listed basket capacities. At 30 degrees the basket hitch capacity is 1,600 lb, rising to 2,700 lb at 60 degrees. Thickness measures 5/32 in, so the sling remains flexible while resisting abrasion. No tag features are included, so users must follow standard inspection procedures.

Check your rigging angles

Vertical, choker and standard basket hitch capacities are not applicable for this model, so the sling must only be used in basket configurations at the specified angles. Verify that the load weight stays within the 1,600 lb or 2,700 lb limits depending on the angle achieved. Ensure the 1 in width fits your hardware and that the 6 ft length suits the span required.

Highlights

  • Rated for 1,600 lb basket hitch at 30 degrees
  • Rated for 2,700 lb basket hitch at 60 degrees
  • Meets ASME B30.9 and OSHA 1910.184 standards
  • Two-leg bridle design for balanced load handling
  • Single-ply polyester construction, 5/32 in thick

Specifications

BrandLIFT-ALL

Questions about this item

How often should the single-ply polyester webbing be inspected for cuts or abrasion?

Inspect the sling before each use and remove it from service if cuts, tears, or abrasion expose the core fibres, following ASME B30.9 and OSHA 1910.184 inspection intervals.

Which basket-hitch rating limits the load first as the angle narrows?

At 30 degrees the basket capacity is 1,600 lb, which is lower than the 2,700 lb rating at 60 degrees, so the 30-degree figure governs the maximum load.

Does the silver-coloured polyester retain heat or become noisy during continuous lifting?

The 5/32 in thick polyester webbing produces no mechanical noise and does not retain heat; it remains ambient temperature during all-day rigging operations.
