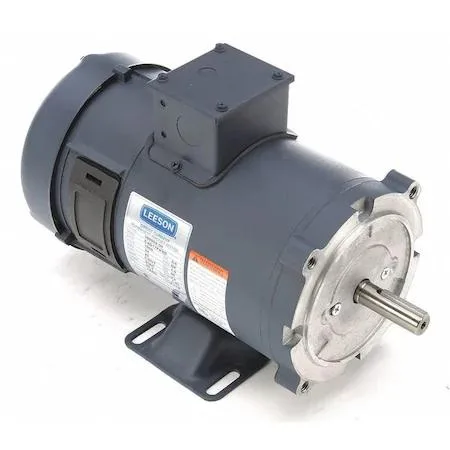

Leeson 108052.00 DC permanent magnet motor, 56C frame, transparent finish

Leeson

Leeson 108052.00 DC Permanent Magnet Motor 56C hvac control

SKU CH-RM62-GMS7A

DC permanent magnet motor delivers 3/4 HP at 800 RPM from 24 V, 56C frame, 26.3 in-lb torque, 29.0 A full-load current, totally enclosed fan-cooled, continuous duty

  • ColorTransparent
  • Delivers 3/4 HP at 800 RPM for reliable HVAC performance
  • 24 V DC input with 29.0 A full-load current simplifies low-voltage integration
  • 56C face/base mount with removable base fits standard HVAC installations
  • Totally enclosed fan-cooled design rated for 40 °C ambient ensures durable operation
  • CW/CCW reversible rotation with ball bearings provides flexible airflow control

Motor Overview

The Leeson 108052.00 is a DC permanent magnet motor built for HVAC control applications. It delivers 3/4 horsepower at a nameplate speed of 800 RPM while operating on a 24V DC supply. The 56C frame size and face or base mounting style suit standard industrial installations.

Voltage Compatibility

This motor requires a 24V DC power source and draws 29.0 A at full load. Supplying the correct voltage is the single specification that determines whether the unit will function properly in your system. Verify your control circuit matches this requirement before purchase.

Torque and Thermal Limits

Continuous duty operation produces 26.3 in-lb of full-load torque with a 1.0 service factor, offering no overload headroom. Class F insulation allows a maximum ambient temperature of 40 degrees C, so the motor runs out of thermal margin in hotter environments.

Highlights

  • Delivers 3/4 HP at 800 RPM for reliable HVAC performance
  • 24 V DC input with 29.0 A full-load current simplifies low-voltage integration
  • 56C face/base mount with removable base fits standard HVAC installations
  • Totally enclosed fan-cooled design rated for 40 °C ambient ensures durable operation
  • CW/CCW reversible rotation with ball bearings provides flexible airflow control

Specifications

BrandLEESON
ColorTransparent

Questions about this item

What does the 1,800 RPM nameplate speed mean once the motor is running under load?

The nameplate speed of 1,800 RPM is the rated full-load speed at 24 V DC; under the continuous duty cycle the motor will operate at this speed when delivering its rated 3/4 HP output.

How does the 24 V DC supply and 29.0 A full-load current limit what the motor can deliver?

At 24 V DC the motor draws 29.0 A at full load, producing 3/4 HP and 26.3 in-lb of torque; the voltage and current combination sets the maximum continuous power available.

What does the 56C frame with face/base mounting and removable base require for installation?

The 56C frame provides a 5/8 in shaft diameter and 1 7/8 in shaft length with a face and base mounting pattern; the removable base allows either face-only or foot-mounted installation.
