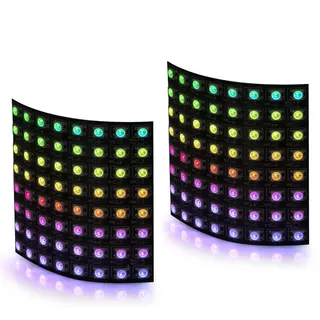

Two square flexible LED panels with black backing and 64 addressable pixels each

KEHIPI

KEHIPI WS2812B 2 Pack 8x8 64 Pixel LED Matrix Control

SKU CH-3ZXE-1PGS9 MPN WS2812B

Two flexible 8×8 panels with 64 individually addressable RGB LEDs each, chainable via JST connectors for custom text, graphics and animation at 5 V DC

  • MaterialPlastic
  • Individually addressable WS2812B LEDs enable custom pixel art
  • Two 8×8 panels provide 64 pixels each for modular displays
  • Flexible FPCB with JST connectors allows curved installations
  • 256 gray levels and 24-bit colour deliver smooth animations
  • 50 000-hour lifespan at 5 V DC for long-term use

Compact 8×8 LED matrix kit

This pack contains two 8×8 LED matrices, each with 64 individually addressable WS2812B pixels on a flexible black FPCB. The panels measure 8 cm square and run on 5 V DC, drawing up to 19 W per matrix at full brightness. They connect via 3-pin JST headers so you can chain them into larger displays for text, graphics or video playback.

Check your power and controller

Verify that your 5 V supply can deliver at least 4 A per matrix to avoid voltage drop. The LEDs use GRB colour order and the WS2811 protocol, so your controller firmware must match that timing. The FPCB is rated IP30 and bends gently; sharp folds will damage the copper traces. Operating temperature range is –20 °C to 40 °C.

Suits hobbyists building programmable light panels

Makers who want affordable, chainable matrices for wearables, signage or interactive art will find these panels a good fit. Buyers who need weather-sealed modules, higher pixel densities or gold-bonded wire reliability for long-term installations should look at other product lines.

Highlights

  • Individually addressable WS2812B LEDs enable custom pixel art
  • Two 8×8 panels provide 64 pixels each for modular displays
  • Flexible FPCB with JST connectors allows curved installations
  • 256 gray levels and 24-bit colour deliver smooth animations
  • 50 000-hour lifespan at 5 V DC for long-term use

Specifications

BrandBTF-LIGHTING
MaterialPlastic

Questions about this item

What comes in the box and what do I need to buy separately?

The pack contains two 8×8 WS2812B LED matrix panels with 3-pin JST connectors; you must supply a DC 5 V power source (4 A recommended) and a compatible controller such as an Arduino, Raspberry Pi, SP802E or WLED device.

Both panels are identical — is there any version or capacity choice to make?

No, each panel is the same 64-pixel WS2812B matrix with GRB colour order, 256 grey levels and 120° beam angle; simply add more panels via the JST links if you need a larger display.

The spec lists 19 W power draw — what does that mean when the panels are running at full brightness?

At maximum white output both panels together draw about 19 W from a 5 V supply, so a 5 V 4 A adapter provides enough headroom for continuous operation without voltage drop.
