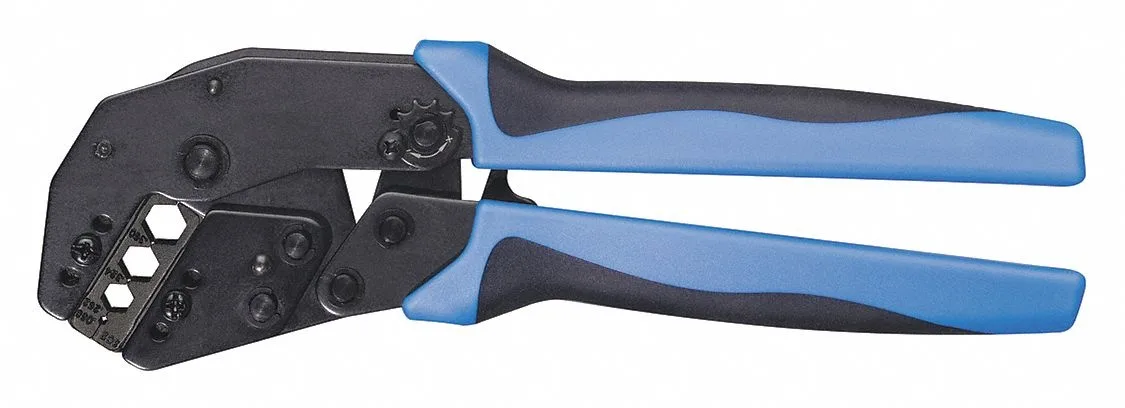

Jonard UC-8012 universal crimper with coax die, 9-1/2 inch overall length, cushion grip handles

Jonard

Jonard UC-8012 Universal Crimper 9-1/2 In Coax Die

SKU CH-9F90-KAF3S MPN UC-8012

Crimps CATV F-connectors on coax cable using four die cavities sized .068, .262, .324 and .360 in, with cushioned handles and a replaceable UCD-2045 die set

  • Crimps voice and data cables with four cavity sizes .068, .262, .324, .360 in
  • Includes coax die for CATV F connectors on RG-59 and RG-6 cables
  • Cushion-grip handles reduce hand fatigue during repetitive crimping tasks
  • Adjustable manual mechanism lets you set precise crimp pressure per job
  • Replacement die UCD-2045 available for extended tool life

Universal Crimper for Voice and Data Cable

The Jonard UC-8012 is a manual crimping tool designed for voice and data cable work. It includes a coax die and features a 9-1/2 inch overall length with cushion grip handles. This tool suits installers terminating F connectors on CATV cables from Corning Gilbert and Belden. It does not cut or strip conductors.

Adjustable Manual Operation Without Ratchet

The crimper uses an adjustable manual mechanism without a rated maximum crimping force. Force depends entirely on the user's hand strength, so repeatability varies between operators. There is no ratchet to enforce a full cycle, meaning incomplete crimps are possible if pressure is released early. The tool is restricted from sale in California due to Proposition 65 chemical warnings.

Four Cavity Die for Coax Connectors

The included die provides four crimping cavities sized at .068, .262, .324 and .360 inch (1.73, 6.65, 8.23 and 9.14 mm). These cover common F connector sizes for RG59, RG6 and RG360 type cables. The die is replaceable using code UCD-2045. Installers needing different connector types or insulated terminal crimping require a separate tool.

Highlights

  • Crimps voice and data cables with four cavity sizes .068, .262, .324, .360 in
  • Includes coax die for CATV F connectors on RG-59 and RG-6 cables
  • Cushion-grip handles reduce hand fatigue during repetitive crimping tasks
  • Adjustable manual mechanism lets you set precise crimp pressure per job
  • Replacement die UCD-2045 available for extended tool life

Specifications

BrandJonard
ModelUC-8012

Questions about this item

Which crimping capacity should I select for my cable?

The die set crimps four specific sizes: 0.068 in (1.73 mm), 0.262 in (6.65 mm), 0.324 in (8.23 mm) and 0.360 in (9.14 mm). Match your cable diameter to one of these.

What does the 9-1/2 in overall length mean when I am working?

At 9-1/2 in the tool gives enough leverage for the listed coax capacities while still fitting in a standard tool pouch.

Does the UC-8012 use a standard die interface so I can swap dies later?

Yes, the replacement die code is UCD-2045, so compatible dies can be fitted to the same frame.
