Jansicotek

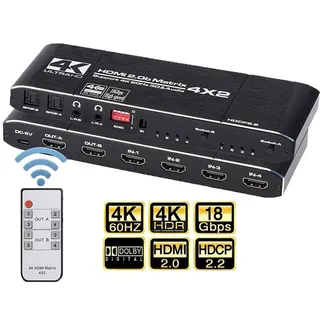

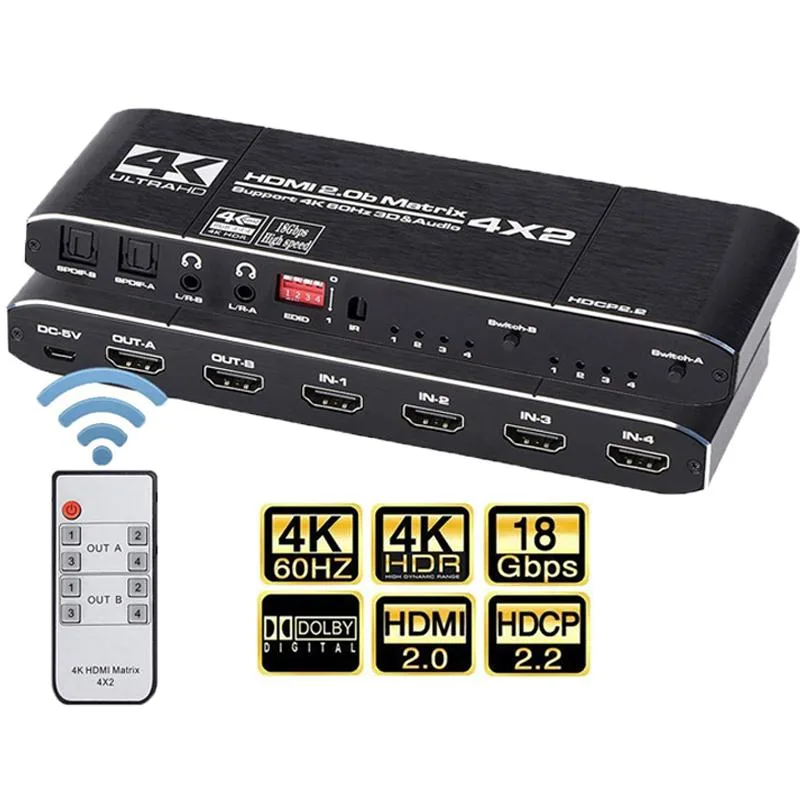

Jansicotek OZJ2 4x2 HDMI Matrix Switch
Routes four HDMI sources to two displays at 4K 60 Hz with ARC audio extraction and eight EDID modes
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes
- Routes four sources to two displays independently
- 4K at 60 Hz with 18.5 Gbps bandwidth
- HDMI 2.0b and HDCP 2.2 compliance
- ARC plus optical and 3.5 mm audio extraction

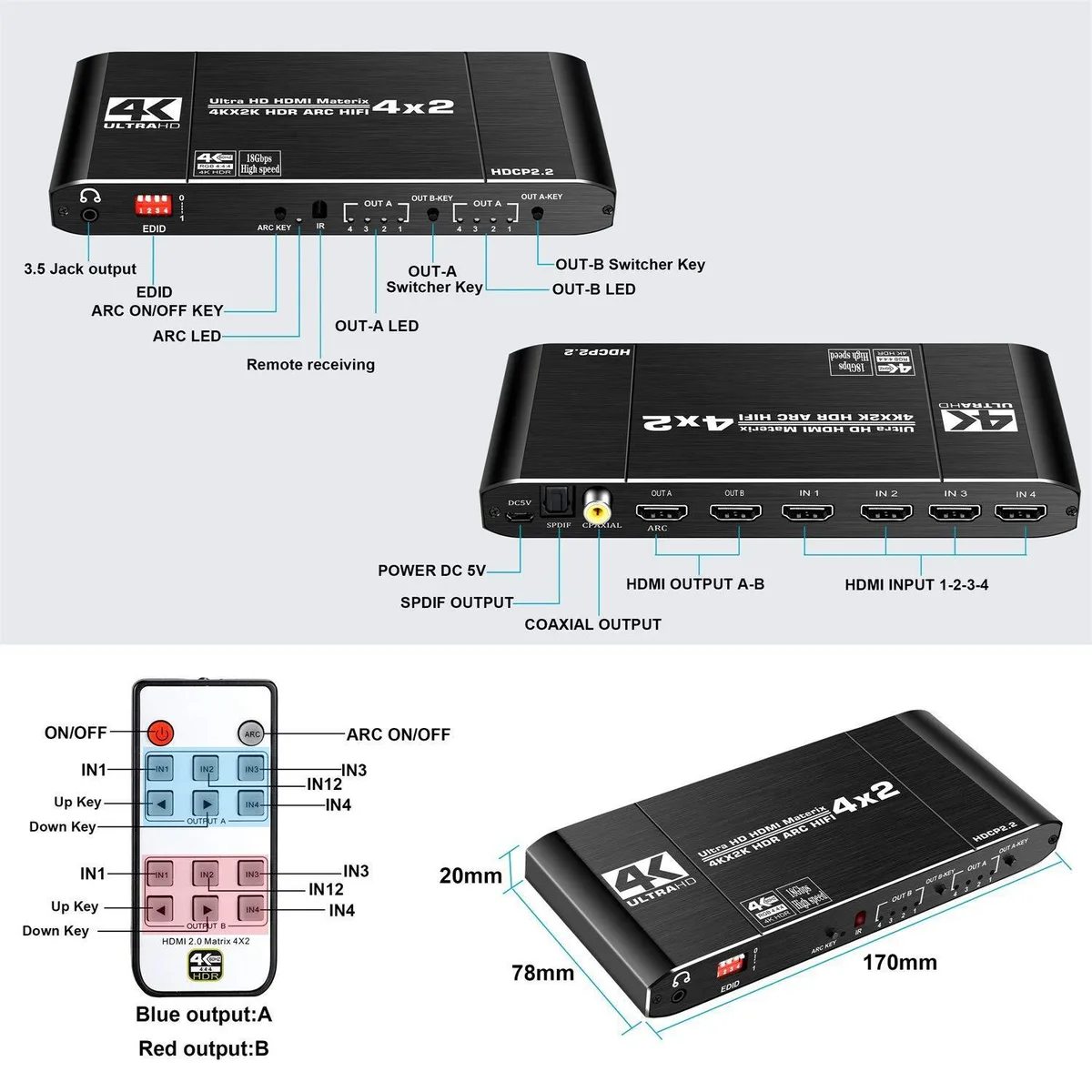

- IR remote and front-panel button control
What this 4x2 HDMI matrix does

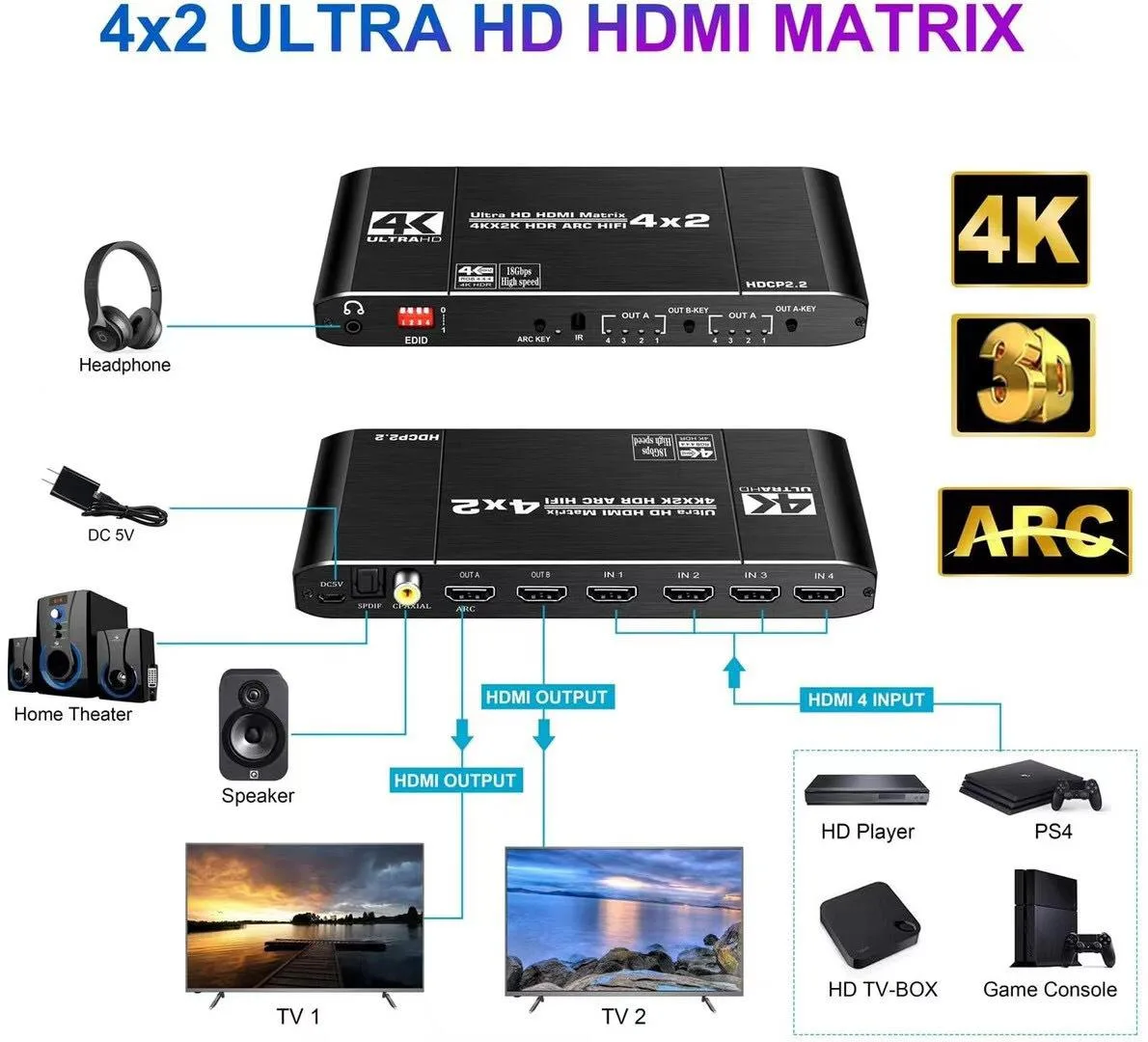

The Jansicotek OZJ2 routes four HDMI sources to two displays simultaneously. It combines splitter and switcher functions so each output can show the same or a different 4K source. HDMI 2.0b and HDCP 2.2 are supported up to 4K at 60 Hz with HDR. An IR remote and front-panel buttons change the routing.
Who should use it and who should not
Installers needing independent 4K60 routing to two screens from four sources will find the EDID extractor and ARC on output A useful. Buyers who require more than two simultaneous outputs or audio formats beyond the provided optical, coaxial and 3.5 mm jack should look at other solutions.
The spec that decides fit
Maximum resolution is 3840 by 2160 at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2. If your sources or displays need higher refresh rates or greater bandwidth this matrix will not pass the signal.
Highlights
- Routes four sources to two displays independently
- 4K at 60 Hz with 18.5 Gbps bandwidth
- HDMI 2.0b and HDCP 2.2 compliance
- ARC plus optical and 3.5 mm audio extraction
- IR remote and front-panel button control
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ2 |
| Model | OZJ2 |
| Part Number | OZJ2 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | Product Type:HDMI Splitter 4x2 Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
How do I decide between using all four inputs on one display or splitting them across both outputs?
The matrix lets you route any of the four sources to either output independently, so you can mirror the same source on both screens or show two different sources at once.
What does the 18.5Gbps bandwidth actually deliver on a 4K screen?
It carries 4K at 60 Hz with full 4:4:4 chroma and deep colour up to 48-bit, plus HDR, so the picture stays sharp and colour-accurate without compression.
Which HDMI version and HDCP level does the switch use, and what does that limit?
HDMI 2.0b with HDCP 2.2 caps the link at 18.5Gbps, so 4K 60 Hz 4:4:4 is the maximum supported format.
