Stainless steel 16mm panel-mount latching push button with orange LED ring, IP67 rated

JacobsParts Inc.

JacobsParts LTCH-B3-ORG 16mm Latching Push Button Disconnect Orange LED IP67 250V 3A

SKU CH-ZAJF-7X6GA MPN LTCH-B3-ORG

16 mm panel-mount latching push button with orange LED, stainless-steel IP67 body rated 250 V 3 A

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialMetal
  • FeaturesWaterproof
  • Latching action keeps circuit state without holding
  • IP67 rating withstands heavy rain and splashes
  • Orange LED runs at 12V 15mA separate from switch
  • Stainless steel body resists corrosion in marine use
  • Fits 16mm panel cutout with included nut and O-ring

16mm Latching Push Button Switch

The JacobsParts LTCH-B3-ORG is a 16mm panel-mount pushbutton rated for 250V AC/DC at 3A. It suits automotive, marine and electronics projects that need a maintained on-off action with an orange illuminated ring.

Stainless Steel Build with IP67 Seal

The switch body is made from corrosion-resistant stainless steel and carries an IP67 protection rating against heavy rain and splashes. A 16mm mounting hole accepts the threaded neck, which secures with the supplied metal nut and optional rubber O-ring for extra sealing.

SPDT Contacts and 12V LED Indicator

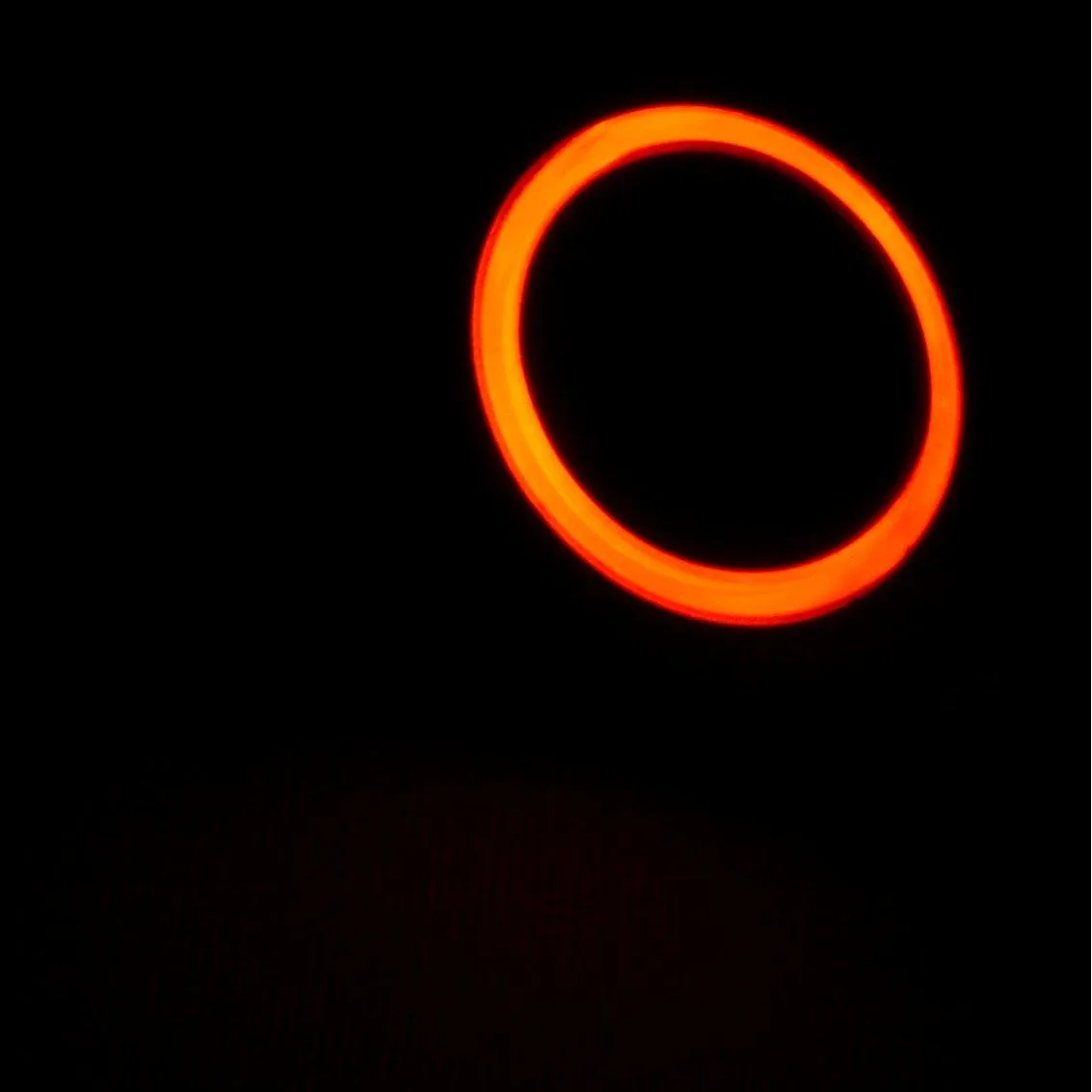

The switch uses a single-pole double-throw circuit with one normally open and one normally closed contact pair, wired via screw terminals. The separate orange LED runs on 12V DC at 15mA and can be wired to stay lit constantly or only when the switch is active. Operating temperature spans -20C to 55C.

Highlights

  • Latching action keeps circuit state without holding
  • IP67 rating withstands heavy rain and splashes
  • Orange LED runs at 12V 15mA separate from switch
  • Stainless steel body resists corrosion in marine use
  • Fits 16mm panel cutout with included nut and O-ring

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialMetal
BrandJacobsParts
ModelLTCH-B3-ORG
FeaturesWaterproof

Questions about this item

What current does the 250 V rating allow in practice?

The switch handles up to 3 A at 250 V AC or DC, matching its maximum switch rating.

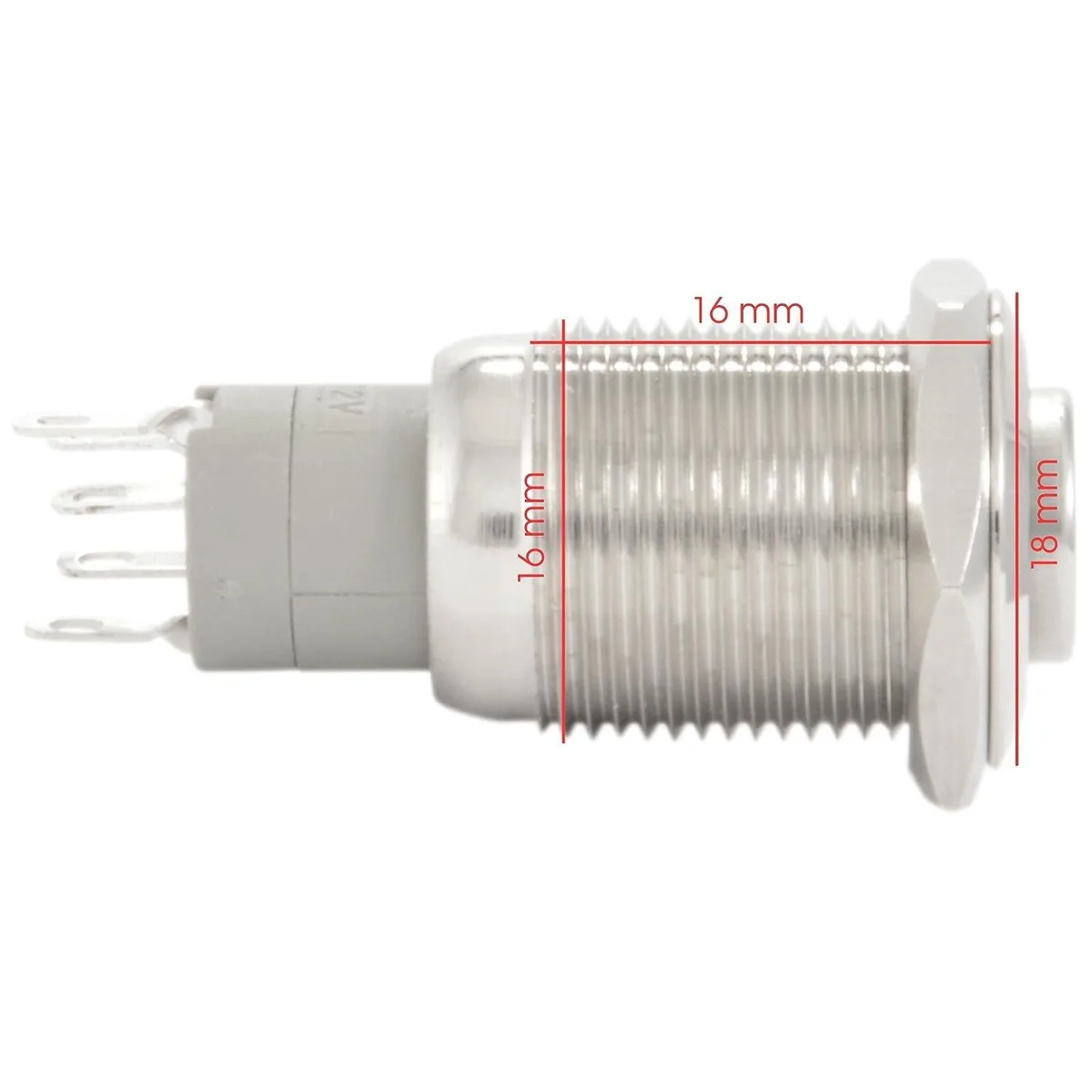

What panel cutout and depth are required for the 16 mm thread?

Drill a 16 mm hole; the switch needs 16 mm thread depth and 36 mm total depth behind the panel.

How is the orange LED wired during installation?

Connect the LED to a 12 V DC source at 15 mA; it can stay on constantly or light only when the switch is latched ON.
