Orange waterproof toggle switch with protective cap and two screw terminals

JacobsParts Inc.

JacobsParts Inc. TOGGLE-A 15A 125V SPST Waterproof Toggle Disconnect ORG

SKU CH-AWEA-CSY8W

A 15 A, 125 V SPST toggle switch with a waterproof cap, rated for 50,000 mechanical cycles and operation from -25 to 80 °C

  • TypeScrew
  • MaterialCopper
  • Handles 15A at 125V for reliable power switching

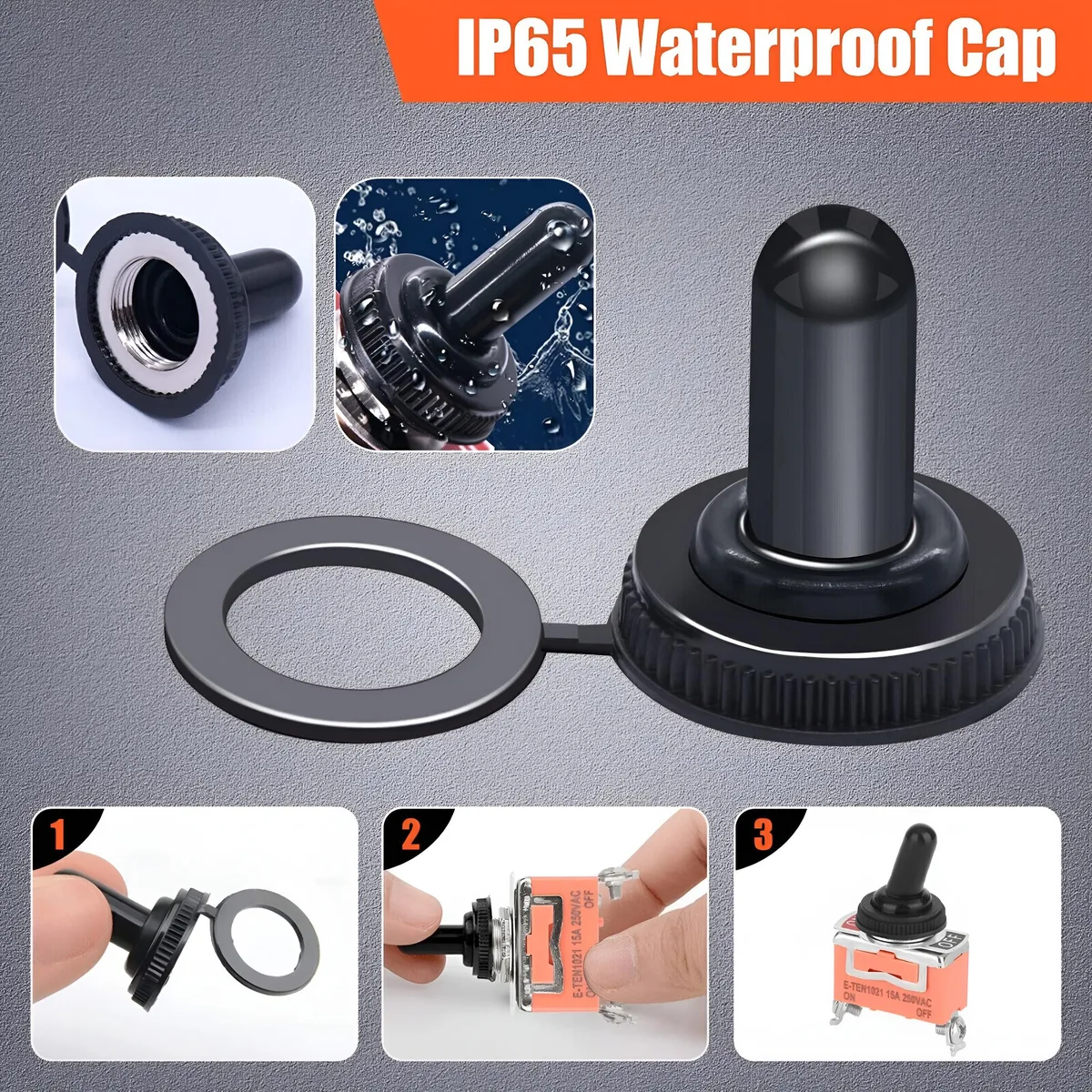

  • Waterproof cap protects against moisture in marine and automotive use
  • Operates from -25 to 80 degrees for extreme environments
  • Mechanical life exceeds 50,000 cycles for long-term durability
  • Vibration resistant at 10-55Hz with 1.5mm amplitude

Heavy Duty Waterproof Toggle Switch

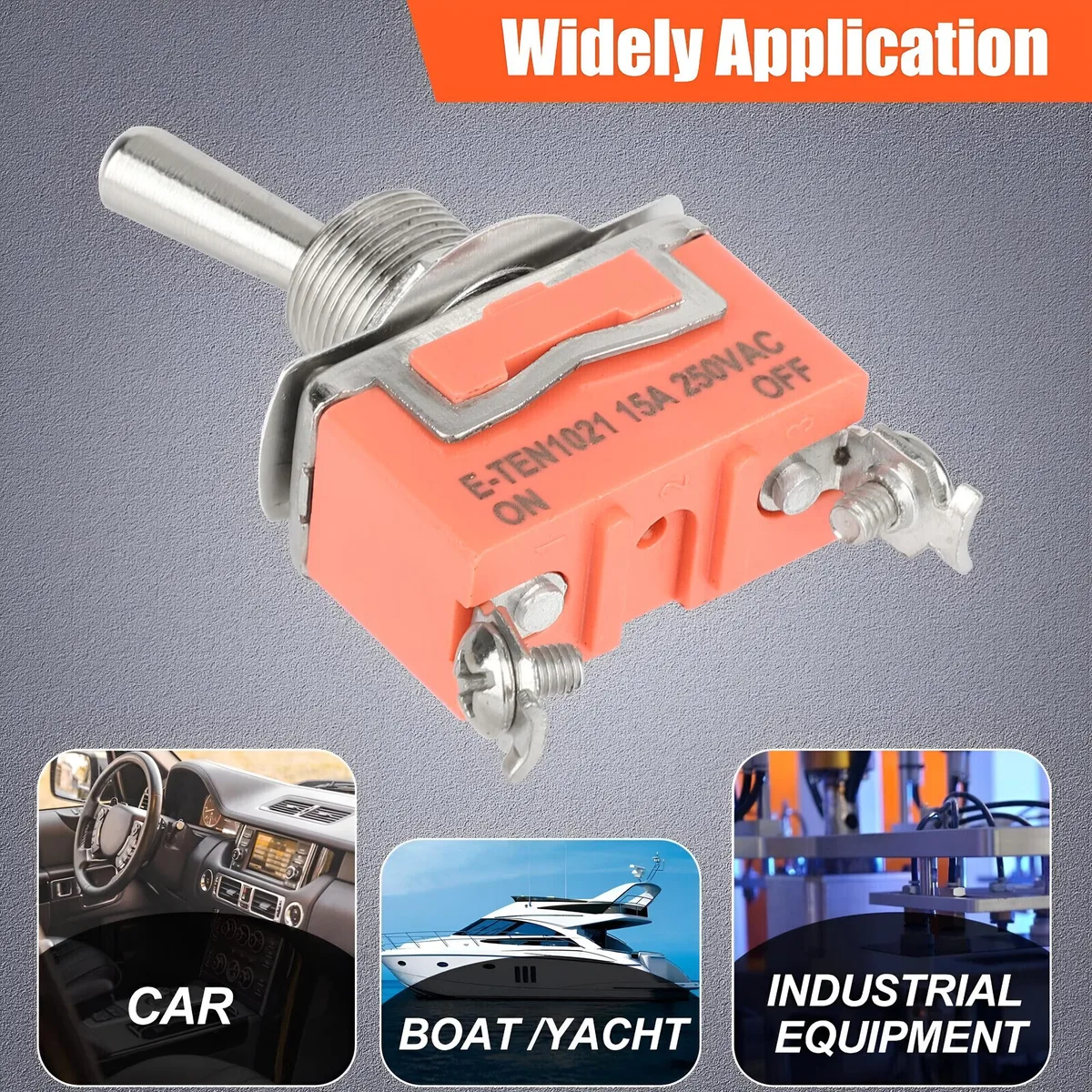

The JacobsParts TOGGLE-A is a single-pole single-throw switch rated for 15A at 125V and capable of handling up to 250V. It is built for automotive and marine electrical systems that need a simple on-off control with environmental protection. The screw terminals and protective cap make it suitable for panel mounting in exposed locations.

Electrical Ratings and Environmental Limits

The switch operates reliably from -25 degrees to 80 degrees and withstands vibration between 10 and 55Hz at 1.5 mm double amplitude. Dielectric strength is rated at 1000 V RMS with insulation resistance of 100 Mw minimum. Electrical life exceeds 10000 cycles while mechanical life exceeds 50000 cycles, defining the practical service window for the component.

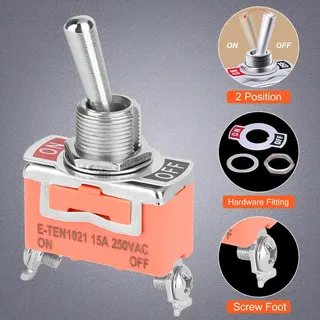

SPST Two-Terminal Configuration

This model uses a standard SPST layout with two screw terminals and no additional poles or throws. Buyers who need momentary action, illuminated feedback, or multi-circuit switching cannot use this part. The fixed on-off operation and single-circuit design determine whether it matches the wiring diagram for the intended installation.

Highlights

  • Handles 15A at 125V for reliable power switching
  • Waterproof cap protects against moisture in marine and automotive use
  • Operates from -25 to 80 degrees for extreme environments
  • Mechanical life exceeds 50,000 cycles for long-term durability
  • Vibration resistant at 10-55Hz with 1.5mm amplitude

Specifications

TypeScrew
MaterialCopper
BrandJacobsParts
ModelTOGGLE-A

Questions about this item

Should I pick the 15A 125V version or the 250V rating for my 12V boat circuit?

The switch is rated for 15A at 125V and up to 250V, so it handles a 12V boat circuit with ample margin.

Will the 15A rating hold up on a winch that draws high inrush current?

It carries 15A continuously and is tested for over 10,000 electrical cycles, covering typical winch duty.

How does the SPST two-terminal layout limit what I can wire?

SPST gives a simple on-off break in a single circuit; it cannot switch between two loads or provide a centre-off position.
