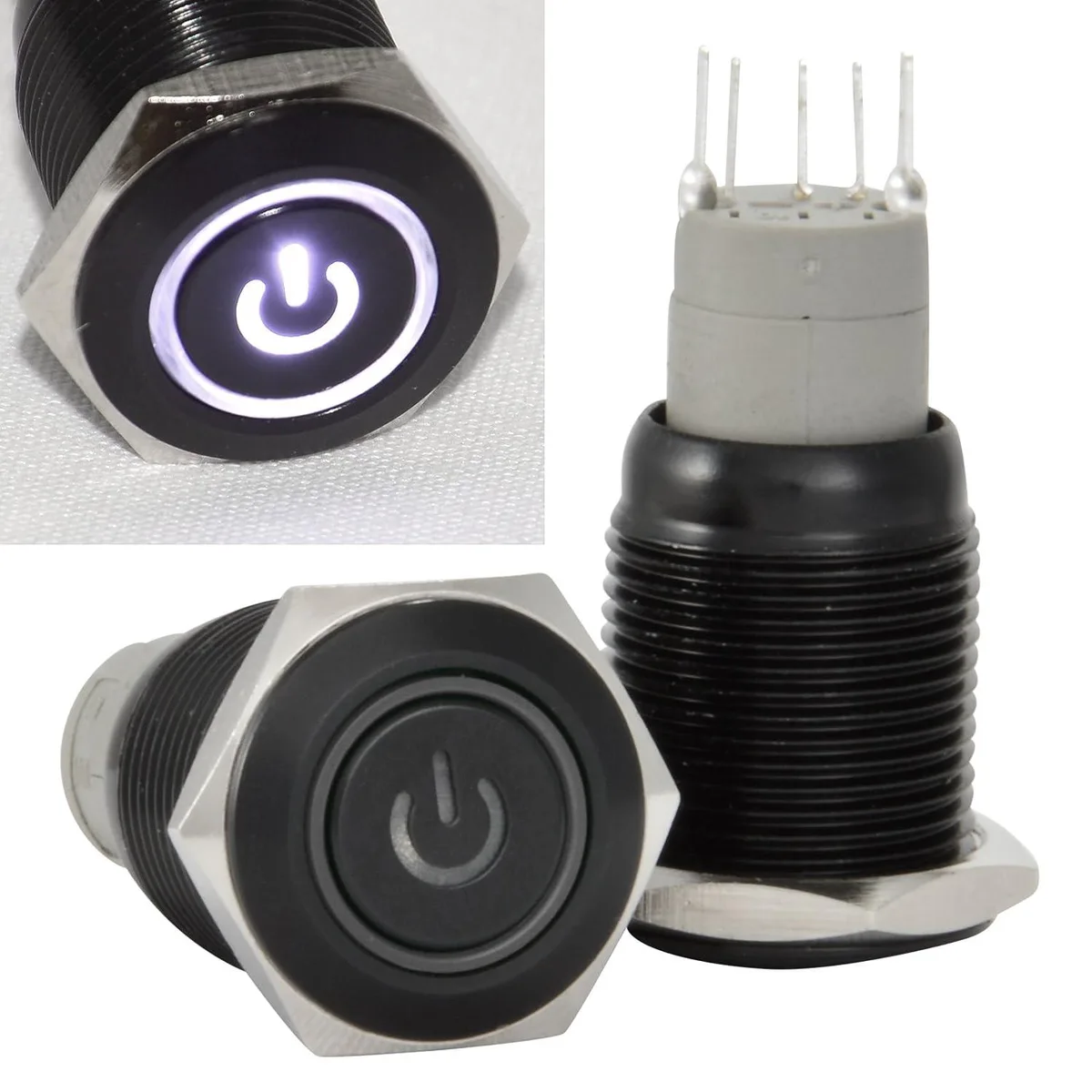

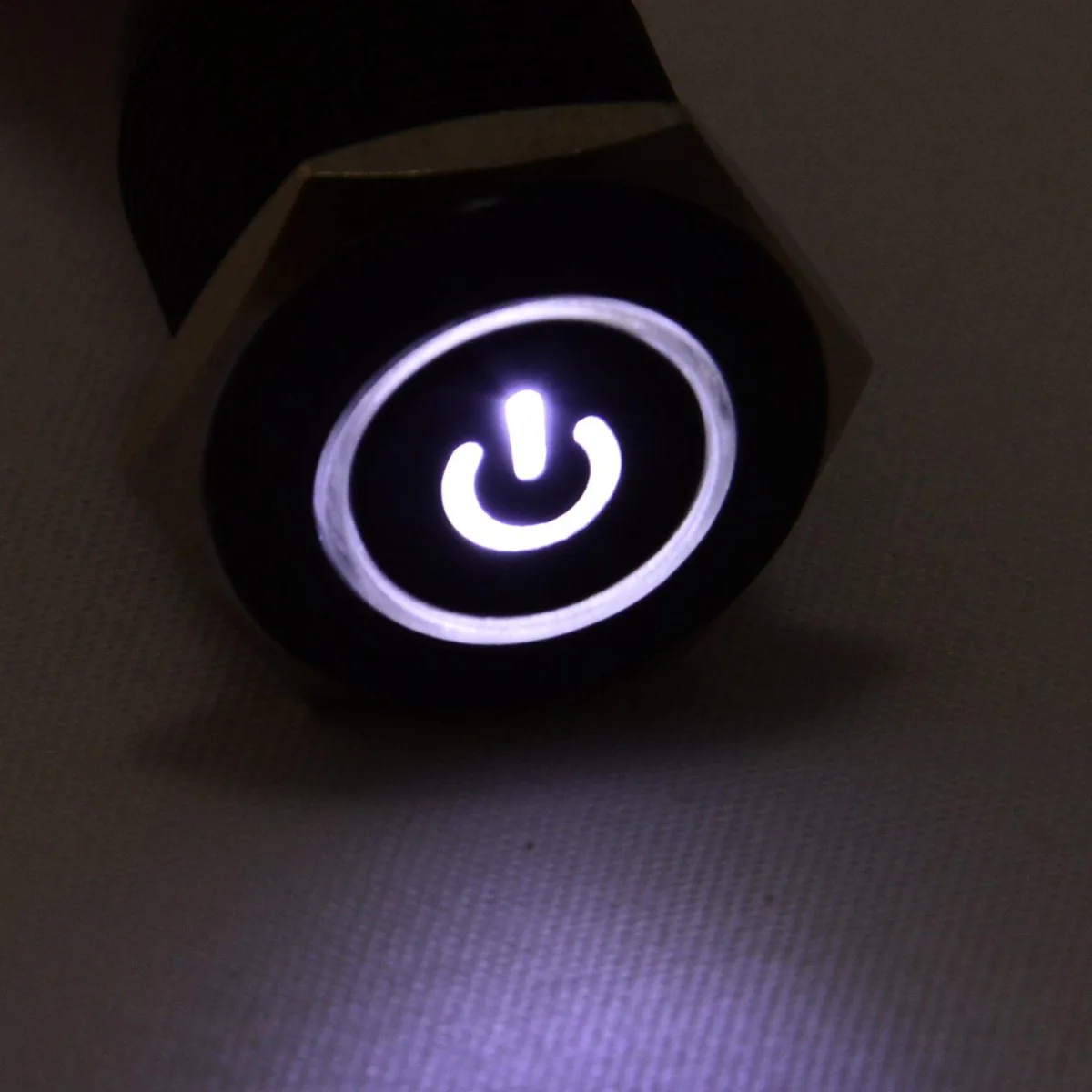

Circular metal push button with white LED power symbol, 16mm panel cutout

JacobsParts Inc.

JacobsParts Inc. LTCH-O3-WHT Momentary Push Button Disconnect 16mm IP67 250V

SKU CH-VNYY-7M46Y MPN LTCH-O3-WHT

A momentary push button switch with IP67 waterproof rating for 16mm panel cutouts, rated 250V AC/DC 3A with a 12V LED indicator

  • TypePush Button
  • Voltage250 V
  • StyleMomentary
  • MaterialMetal
  • Safety RatingIP67
  • FeaturesWaterproof
  • IP67 rated for dust and water protection
  • Momentary action returns to off when released
  • 250 V 3 A rating handles mains-level circuits
  • Separate 12 V LED can stay lit or follow button
  • 16 mm panel cutout with included nut and O-ring

Momentary push-button disconnect

This 16 mm panel-mount switch breaks or makes a circuit only while the button is held down. It fits a 5/8 inch cut-out and is rated for 250 V AC/DC at 3 A. The aluminium-zinc alloy body carries an IP67 waterproof rating and a white LED that runs on 12 V DC at 15 mA. A rubber O-ring and metal mounting nut are included for sealing and securing the switch.

Builders needing a momentary starter

The switch suits automotive, marine and electronics projects where a brief, water-resistant actuation is required. It is not suited for applications that need a maintained on/off position or a latching mechanism. Buyers who require a higher current rating than 3 A or a different LED voltage should look elsewhere.

16 mm cut-out with IP67 sealing

The decisive specification is the 16 mm panel cut-out combined with the IP67 protection level, which determines whether the switch fits the intended enclosure and survives the expected environmental exposure.

Highlights

  • IP67 rated for dust and water protection
  • Momentary action returns to off when released
  • 250 V 3 A rating handles mains-level circuits
  • Separate 12 V LED can stay lit or follow button
  • 16 mm panel cutout with included nut and O-ring

Specifications

TypePush Button
Voltage250 V
StyleMomentary
MaterialMetal
Safety RatingIP67
BrandJacobsParts
ModelLTCH-O3-WHT
FeaturesWaterproof

Questions about this item

What does the 250 V 3 A rating mean for my circuit?

The contacts are rated for up to 250 V AC or DC at 3 A, so the switch can safely control mains-voltage or low-voltage loads within that limit.

What does the IP67 rating actually cover?

IP67 confirms the switch is dust-tight and protected against temporary immersion, making it suitable for outdoor, marine or vehicle panels exposed to heavy rain or splashes.

What size hole do I drill and how thick can the panel be?

Drill a 5/8" (16 mm) cutout; the threaded neck is 16 mm deep and the included nut secures panels up to that thickness, with an optional O-ring for extra sealing.
