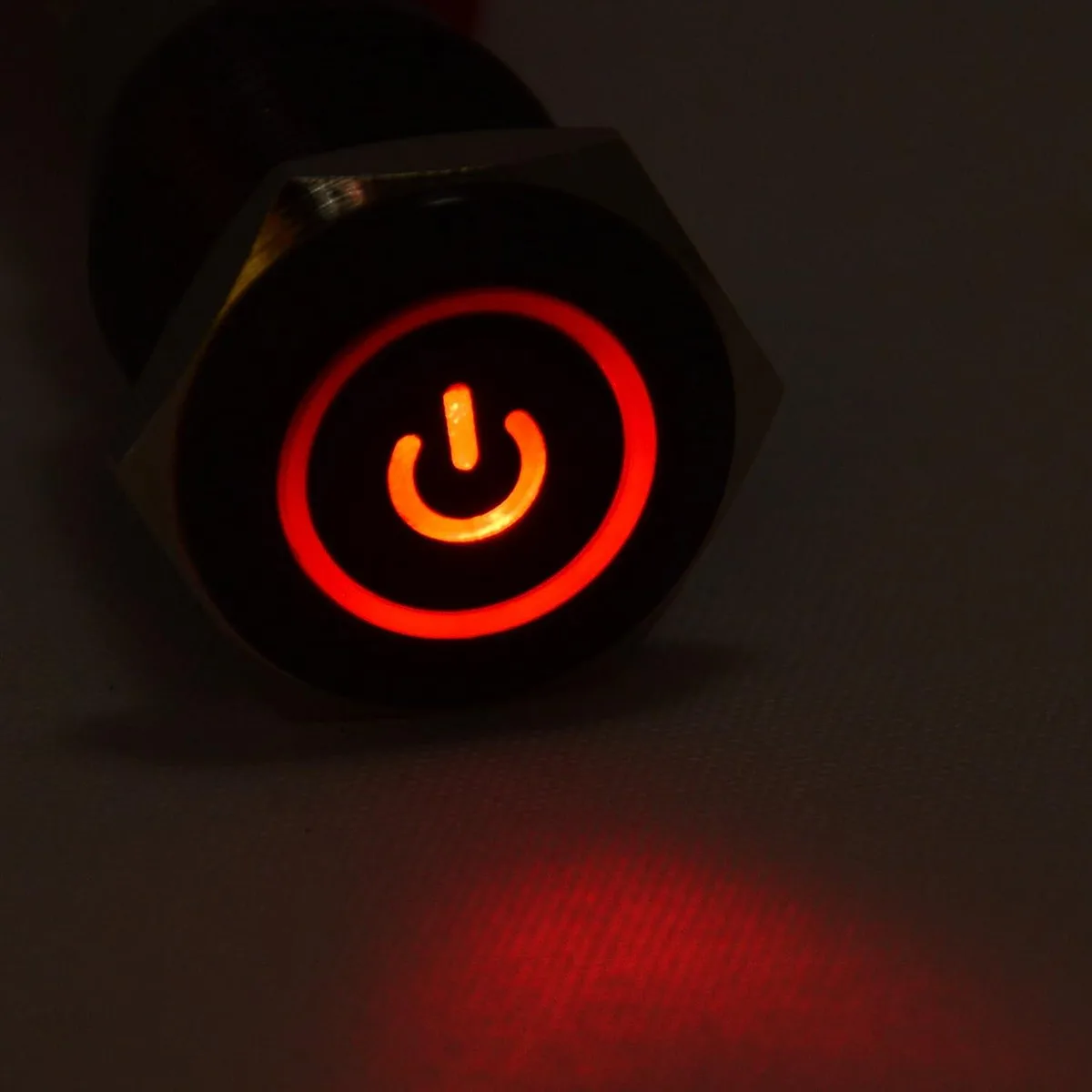

Black aluminium momentary pushbutton with red LED ring, 16mm cutout, IP67 waterproof

JacobsParts Inc.

JacobsParts Inc. LTCH-O3-RED Momentary Pushbutton Disconnect 16mm IP67 250V 3A Red LED

SKU CH-1F2W-1MK6V MPN LTCH-O3-RED

Momentary 16mm aluminium pushbutton switch rated 250V 3A with IP67 waterproofing and a 12V red LED

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialAluminum
  • FeaturesWaterproof
  • Momentary action gives precise on‑only‑while‑pressed control
  • IP67 rating protects against heavy rain and splashes
  • Red LED runs continuously or lights only when pressed

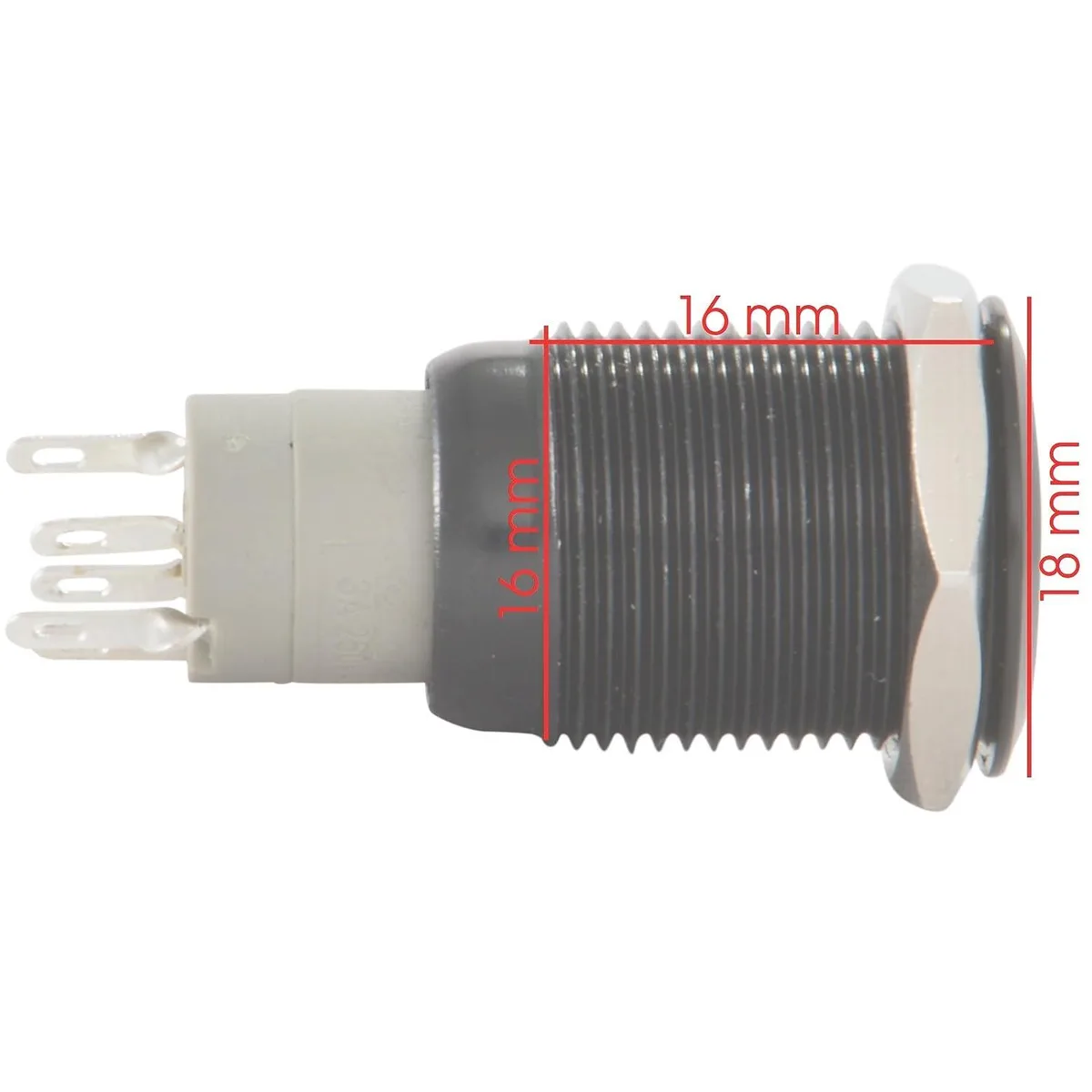

  • 16 mm panel cutout fits standard 5/8 inch holes
  • Rated 250 V AC/DC at 3 A for reliable switching

Momentary 16 mm Panel Switch

This momentary pushbutton switch fits a 16 mm panel cutout and returns to the off position as soon as pressure is released. It is rated for 250 V AC/DC at 3 A and includes a red LED that operates at 12 V DC and 15 mA. The aluminium zinc alloy body carries an IP67 protection rating for water and dust resistance.

Suits Momentary Control Panels

The switch suits builders who need a momentary starter or trigger function in automotive, marine or electronics projects. It is not suitable for applications that require a maintained on/off position or a latching action. Buyers who need a switch that stays on after a single press should look for an alternative latching type.

IP67 Sealed for Continuous Exposure

The IP67 enclosure withstands prolonged exposure to heavy rain, splashes and dust without degradation of the sealing. Operating temperature range spans from minus 20 °C to 55 °C, allowing sustained use in harsh outdoor or engine-bay environments. The separate LED circuit can remain illuminated continuously or only during actuation without affecting the switch rating.

Highlights

  • Momentary action gives precise on‑only‑while‑pressed control
  • IP67 rating protects against heavy rain and splashes
  • Red LED runs continuously or lights only when pressed
  • 16 mm panel cutout fits standard 5/8 inch holes
  • Rated 250 V AC/DC at 3 A for reliable switching

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialAluminum
BrandJacobsParts
ModelLTCH-O3-RED
FeaturesWaterproof

Questions about this item

Does the 16 mm panel cutout require a specific drill bit?

Yes, use a 5/8 inch (16 mm) drill bit to cut the mounting hole in the panel.

Can the red LED run directly from a 12 V vehicle system without an external resistor?

Yes, the LED is rated for 12 V DC at 15 mA, so it can be connected directly to a 12 V supply.

How can I confirm the switch is functioning correctly after installation?

Press the button; the circuit closes while held and opens when released, and the red LED lights whenever power is applied to its terminals.
