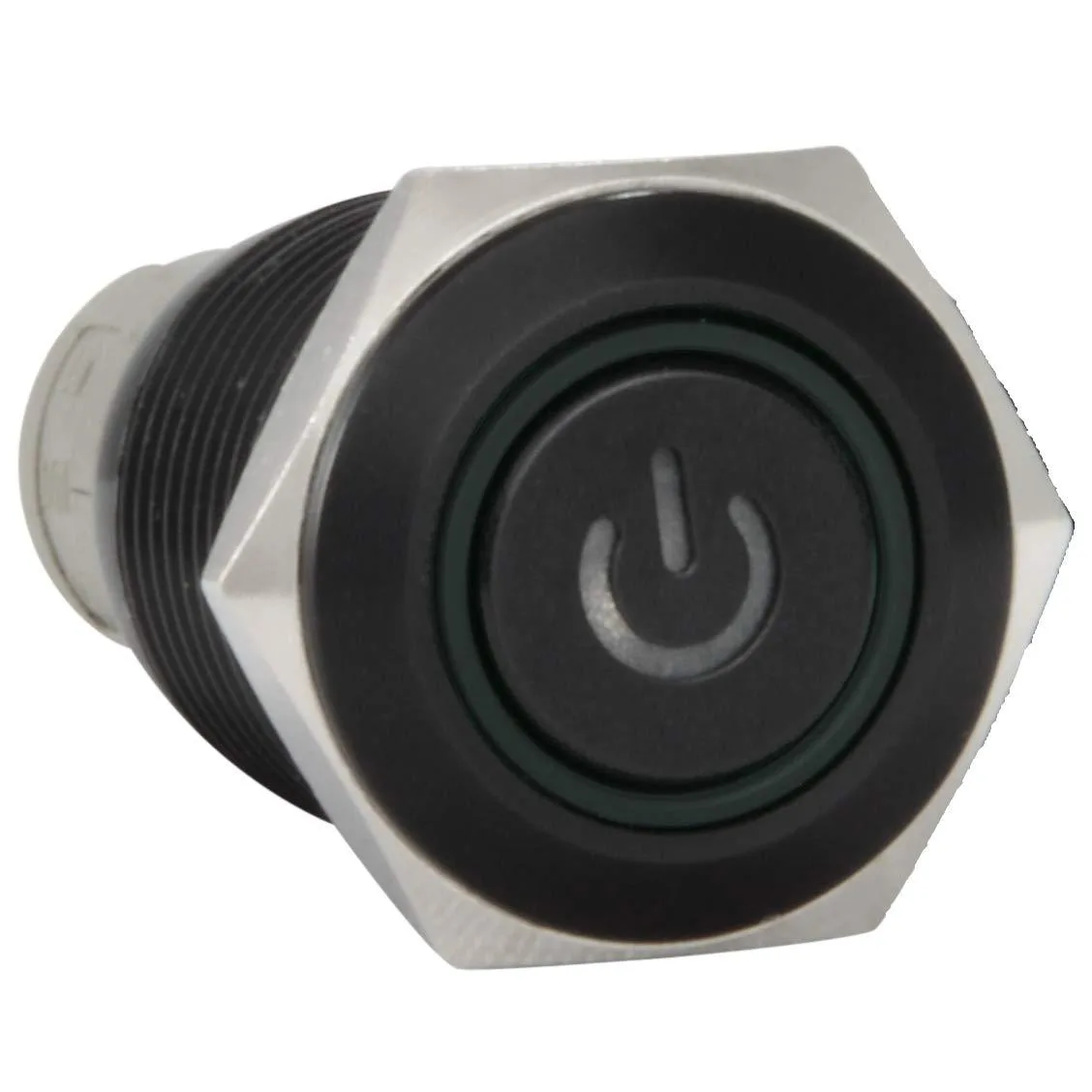

Round black metal pushbutton with green LED ring, 16 mm cutout, IP67 rated

JacobsParts Inc.

JacobsParts Inc. LTCH-O3-GRN Momentary Pushbutton Disconnect 16mm IP67 250V 3A Green LED

SKU CH-XBGH-VAF5B MPN LTCH-O3-GRN

A momentary pushbutton switch with a green LED, rated 250 V 3 A and IP67 waterproof for a 16 mm panel cutout

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialAluminum
  • FeaturesWaterproof
  • Momentary action powers circuits only while pressed
  • IP67 rating withstands heavy rain and splashes
  • Green LED operates independently at 12V DC 15mA

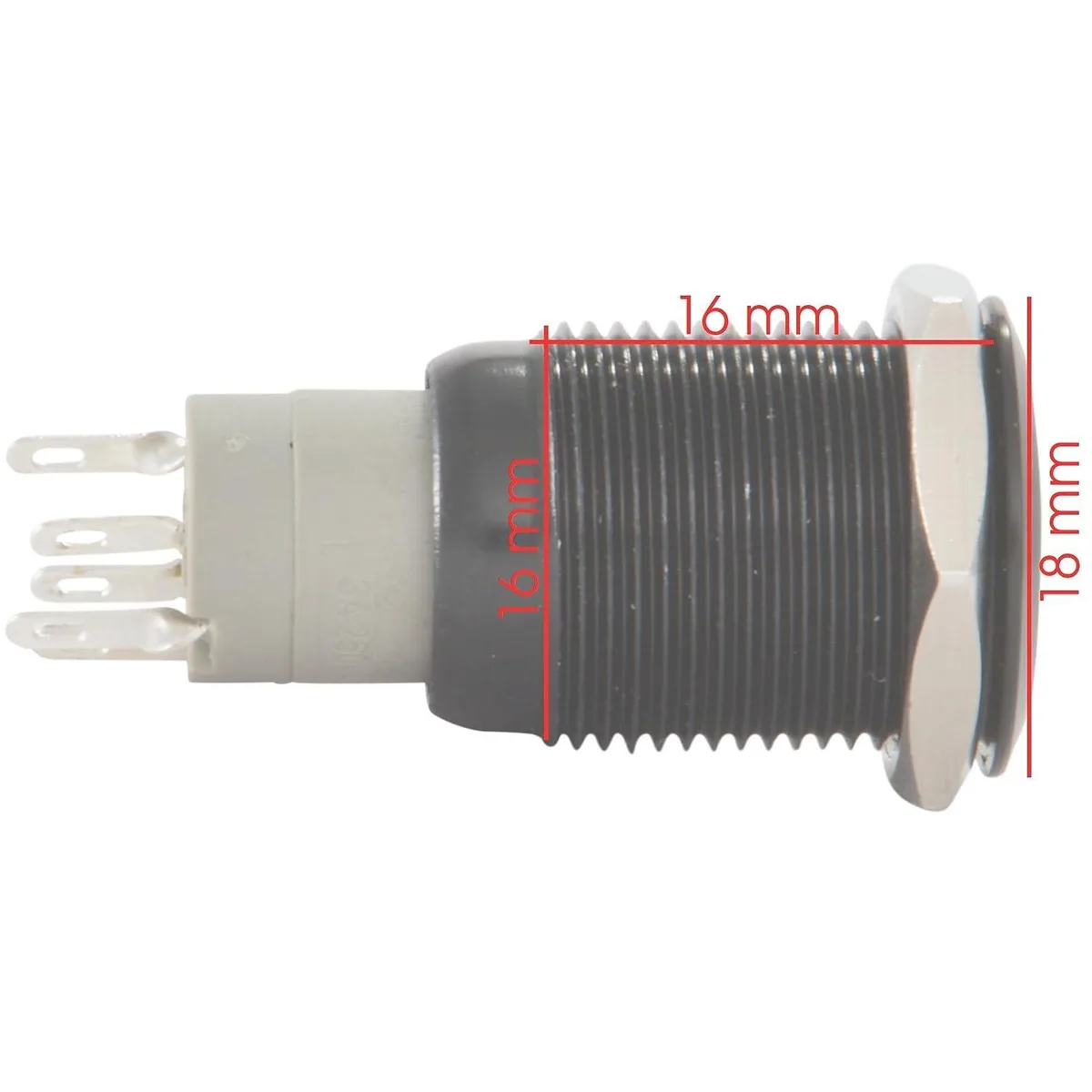

  • Fits 16mm panel cutout with included O-ring seal
  • Rated 250V AC/DC 3A for diverse applications

16 mm IP67 momentary pushbutton

This 16 mm panel-mount switch is a momentary SPST pushbutton rated 250 V AC/DC at 3 A. Its aluminium zinc-alloy body carries an IP67 rating and a green LED that can be wired to stay lit or to light only when the button is pressed. It fits a 5/8 inch cutout and includes a metal nut plus an optional rubber O-ring for extra sealing.

Suits panels needing a waterproof momentary action

The switch works well for starter buttons, horn switches or PC power switches where a momentary contact is required and the panel cutout is exactly 16 mm. It is not suited for applications that need a maintained on/off action, higher current than 3 A, a different cutout size, or an LED colour other than green.

250 V 3 A momentary SPST rating

The single specification that decides fit is the 250 V AC/DC 3 A momentary SPST rating combined with the 16 mm cutout; if your circuit demands a latching action, a different voltage or current rating, or a different mounting diameter, this switch will not meet the requirement.

Highlights

  • Momentary action powers circuits only while pressed
  • IP67 rating withstands heavy rain and splashes
  • Green LED operates independently at 12V DC 15mA
  • Fits 16mm panel cutout with included O-ring seal
  • Rated 250V AC/DC 3A for diverse applications

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialAluminum
BrandJacobsParts
ModelLTCH-O3-GRN
FeaturesWaterproof

Questions about this item

What size panel cutout does the 16mm switch require?

Drill a 5/8 inch (16mm) diameter hole in the panel for the threaded neck to pass through.

How do I wire the green LED so it lights only when the button is pressed?

Connect the LED in series with the normally open contact so the 12V 15mA LED circuit closes only while the momentary SPST switch is held down.

Will the IP67 seal last, or does the O-ring need periodic replacement?

The included rubber O-ring provides the IP67 seal; inspect it during routine maintenance and replace if it shows cracking or compression set.
