Stainless steel 16mm latching push button switch with white LED, IP67 waterproof

JacobsParts Inc.

JacobsParts Inc. LTCH-N3-WHT 16mm Latching Push Button Disconnect IP67 12V LED

SKU CH-KQ91-38ENF MPN LTCH-N3-WHT

A 16mm latching push-button disconnect with IP67 waterproofing and a 12V white LED for 250V AC/DC 3A circuits

  • TypePush Button
  • FeaturesWaterproof
  • Latching action stays on or off without holding
  • IP67 rating survives heavy rain and splashes
  • 12 V white LED wires for constant or switched glow
  • 16 mm panel cutout fits standard dash openings
  • 250 V AC/DC 3 A rating handles diverse circuits

Versatile Latching Switch for Vehicles

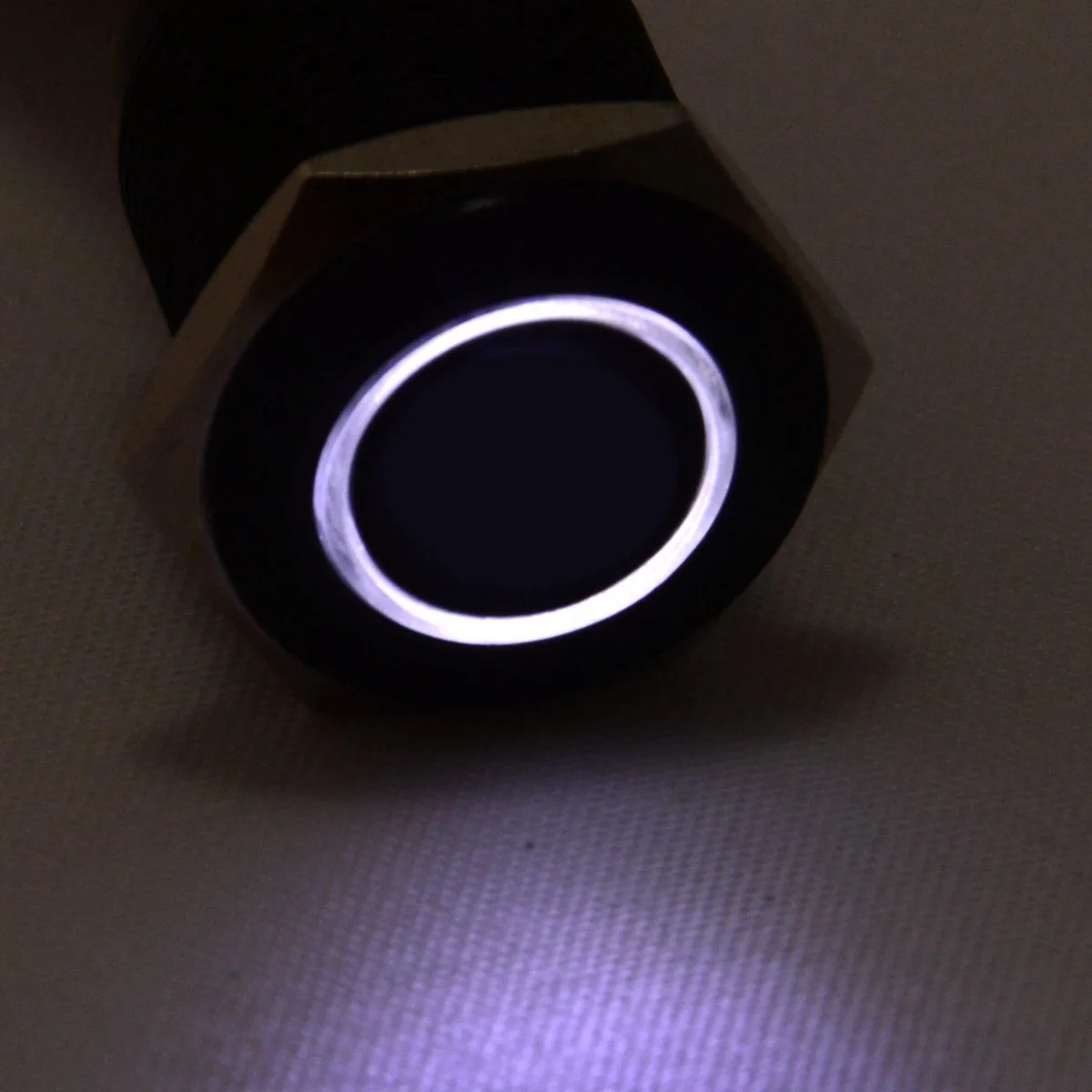

This 16mm stainless steel push button provides a maintained on-off action suitable for cars, motorcycles, boats and computer projects. It controls auxiliary LED accent lights on truck beds, boat trims or underbody lighting. The switch and its white LED operate independently so the light can stay on constantly or only when the circuit is active. An IP67 rating protects the assembly against heavy rain and splashes.

Panel Mounting With Included Hardware

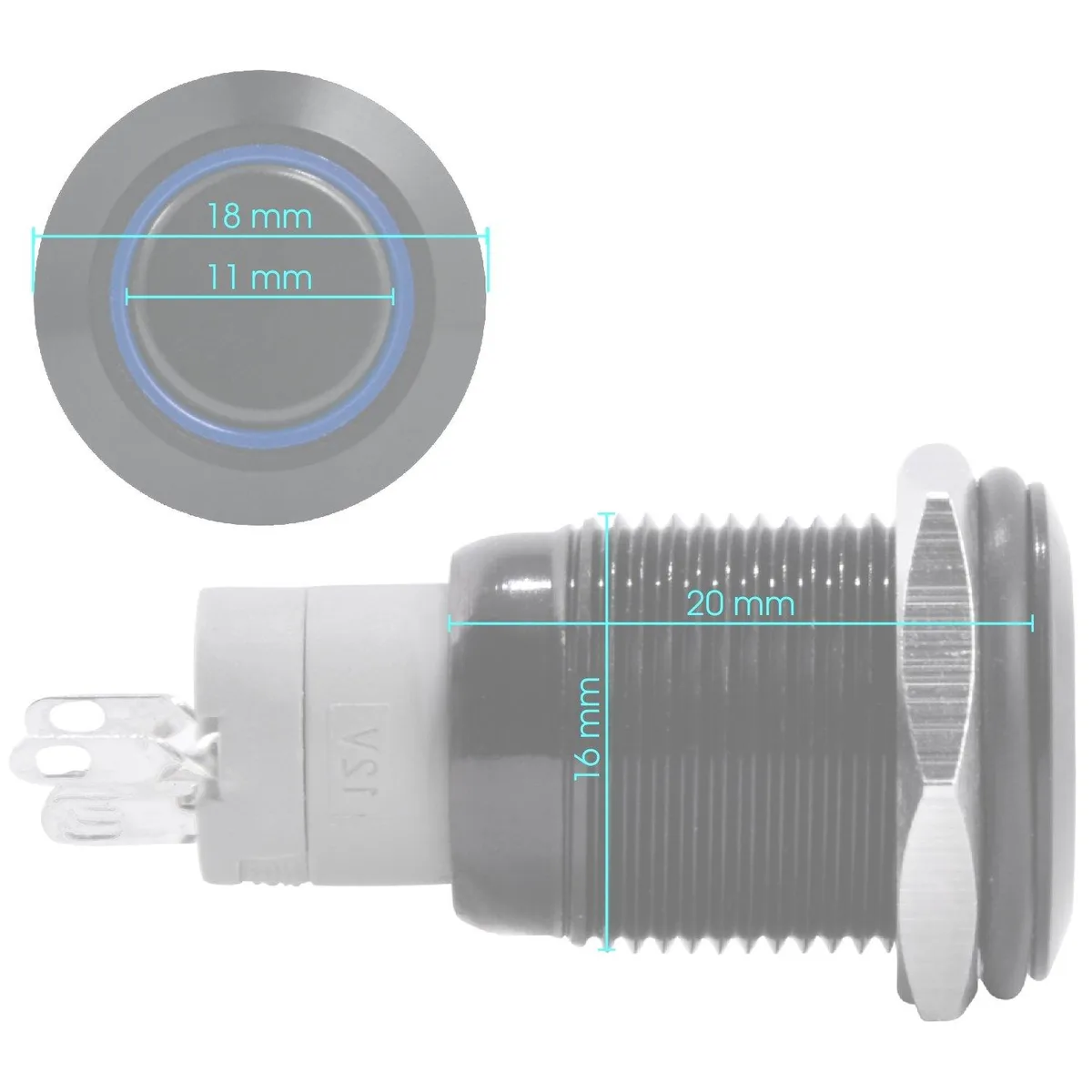

Installation requires a 5/8 inch (16mm) panel cutout and a 16mm thread depth. The faceplate measures 18mm across while the total depth including contacts is 36mm. A metal securing nut and a rubber O-ring are supplied; the O-ring adds extra water resistance between the neck and panel front. The switch fits panels thick enough to accept the 16mm thread length.

Sustained Operation Within Rated Limits

The switch handles up to 250V AC/DC at 3A continuously through its SPDT 1NO1NC contact arrangement. The integrated LED draws 15mA at 12V DC during extended use. An aluminium zinc alloy body operates reliably from -20C to 55C. The IP67 enclosure maintains its seal under prolonged exposure to moisture and dust without degradation.

Highlights

  • Latching action stays on or off without holding
  • IP67 rating survives heavy rain and splashes
  • 12 V white LED wires for constant or switched glow
  • 16 mm panel cutout fits standard dash openings
  • 250 V AC/DC 3 A rating handles diverse circuits

Specifications

TypePush Button
BrandJacobsParts
ModelLTCH-N3-WHT
FeaturesWaterproof

Questions about this item

Will the 3 A rating at 250 V hold up during continuous use, or is heat the limiting factor?

The switch is rated for 250 V AC/DC at 3 A with an operating range of -20 °C to 55 °C; sustained loads near the maximum should be derated for ambient temperature.

Does the 12 V LED add noticeable heat or power draw when the panel stays lit all day?

The LED draws only 15 mA at 12 V DC, so its heat contribution and power consumption are negligible during continuous operation.

What panel thickness and cut-out size must I already have for the 16 mm threaded body to mount securely?

The switch needs a 5/8 inch (16 mm) diameter hole and accommodates panels up to 5/8 inch (16 mm) thick using the supplied metal nut and optional O-ring.
