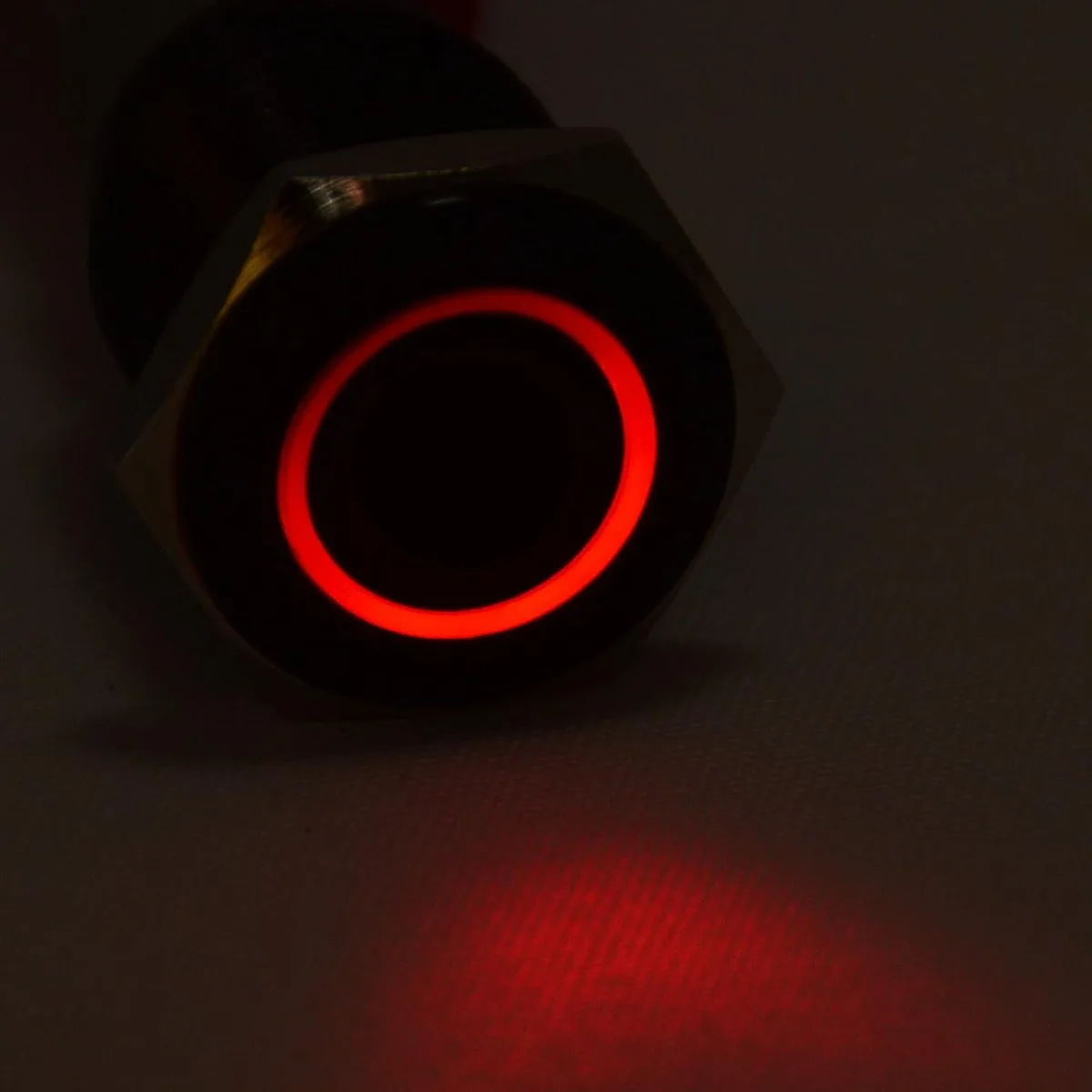

16mm stainless steel latching push button switch with red LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-N3-RED 16mm Latching Push Button Disconnect 12V Red LED IP67

SKU CH-9FRM-5VVG2 MPN LTCH-N3-RED

A 16mm latching push-button disconnect with a 12V red LED, IP67 waterproof rating and 250V 3A switching capacity

  • TypePush Button
  • FeaturesWaterproof
  • Latching action holds power state without constant pressure
  • IP67 rating resists heavy rain and splashes
  • 12 V LED draws only 15 mA for efficient indication
  • 16 mm cutout fits standard panel openings
  • SPDT contacts switch both NO and NC circuits

16 mm Latching Power Switch for 12 V LED Projects

This 16 mm stainless-steel push button provides a maintained on-off action for auxiliary lighting on vehicles, boats or custom electronics. The latching mechanism stays in the selected position until pressed again, making it suitable for always-on accent strips or switched accessories. It fits a standard 5/8 inch panel cutout and includes a metal nut plus a rubber O-ring for sealing.

IP67 Waterproof Rating Decides Outdoor Suitability

The switch carries an IP67 protection level, meaning it withstands heavy rain, splashes and temporary immersion without damage. This rating is the single specification that determines whether the part can be mounted on exposed truck beds, boat trims or motorcycle fairings where moisture is constant. Without IP67 the contacts would corrode and the LED would fail in those environments.

3 A Continuous Rating Holds Steady Under Load

The contacts are rated for 250 V AC/DC at 3 A, so the switch handles sustained current for LED arrays or small motors without overheating. The aluminium zinc alloy body dissipates heat during prolonged operation, while the -20 °C to 55 °C temperature range ensures the mechanism remains reliable through seasonal extremes. The separate 12 V 15 mA LED circuit can be wired to stay lit continuously or only when the main circuit is closed.

Highlights

  • Latching action holds power state without constant pressure
  • IP67 rating resists heavy rain and splashes
  • 12 V LED draws only 15 mA for efficient indication
  • 16 mm cutout fits standard panel openings
  • SPDT contacts switch both NO and NC circuits

Specifications

TypePush Button
BrandJacobsParts
ModelLTCH-N3-RED
FeaturesWaterproof

Questions about this item

How does the 3 A rating translate when the switch is running a 12 V DC load?

At 12 V DC the contacts can handle up to 3 A, so the maximum switched power is about 36 W for resistive loads such as LED lighting.

What does the IP67 rating actually protect against in daily use?

IP67 means the switch is dust-tight and can survive temporary immersion in 1 m of water, so heavy rain, splashes and wash-downs will not cause damage.

What size hole and panel thickness are needed to mount the 16 mm switch?

Drill a 16 mm (5/8") cut-out; the threaded neck is 16 mm long and secures with the supplied metal nut and optional O-ring.
