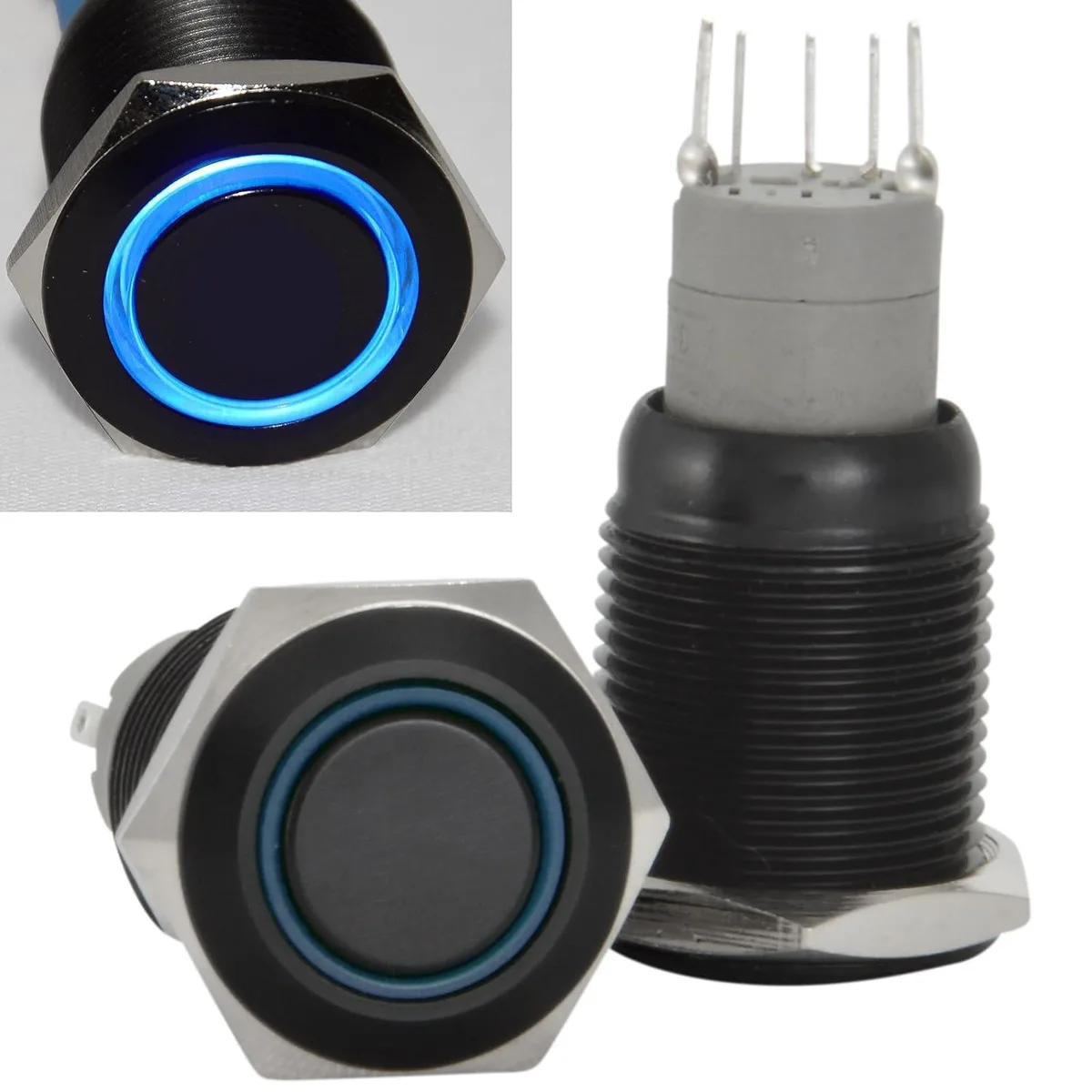

16mm black aluminium latching push button with blue LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-N3-BLU 16mm latching push button disconnect 250V 3A IP67 blue LED

SKU CH-0C9E-YM5FE MPN LTCH-N3-BLU

16 mm latching push button with blue LED, 250 V 3 A, IP67 rated, 12 V LED, 1NO1NC SPDT contacts

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialAluminum
  • IP67 rated withstands heavy rain and splashes
  • Latching action stays on until pressed again
  • Blue LED indicates status with flexible wiring
  • 250V 3A rating handles mains-level circuits
  • 16mm panel cutout fits standard mounting holes

16mm IP67 latching push button

The JacobsParts LTCH-N3-BLU is a 16mm stainless steel latching push button switch rated for 250V AC/DC at 3A. Its IP67 enclosure withstands heavy rain and splashes, making it suitable for automotive, marine and outdoor electronics projects. The blue LED operates at 12V DC and 15mA, and can be wired to stay on constantly or only when the switch is activated.

Replaces momentary or non-sealed switches

Builders moving from momentary buttons or switches without an IP rating gain a maintained on-off action and verified water ingress protection. The upgrade is worth it when the application demands a tactile latching function that survives wet environments without additional sealing hardware.

Sustained load within rated limits

Under continuous operation the switch handles its full 3A rating at 250V while the LED draws a steady 15mA at 12V. The aluminum zinc alloy body and IP67 seal maintain performance across the -20C to 55C temperature range without derating during extended use.

Highlights

  • IP67 rated withstands heavy rain and splashes
  • Latching action stays on until pressed again
  • Blue LED indicates status with flexible wiring
  • 250V 3A rating handles mains-level circuits
  • 16mm panel cutout fits standard mounting holes

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialAluminum
BrandJacobsParts
ModelLTCH-N3-BLU

Questions about this item

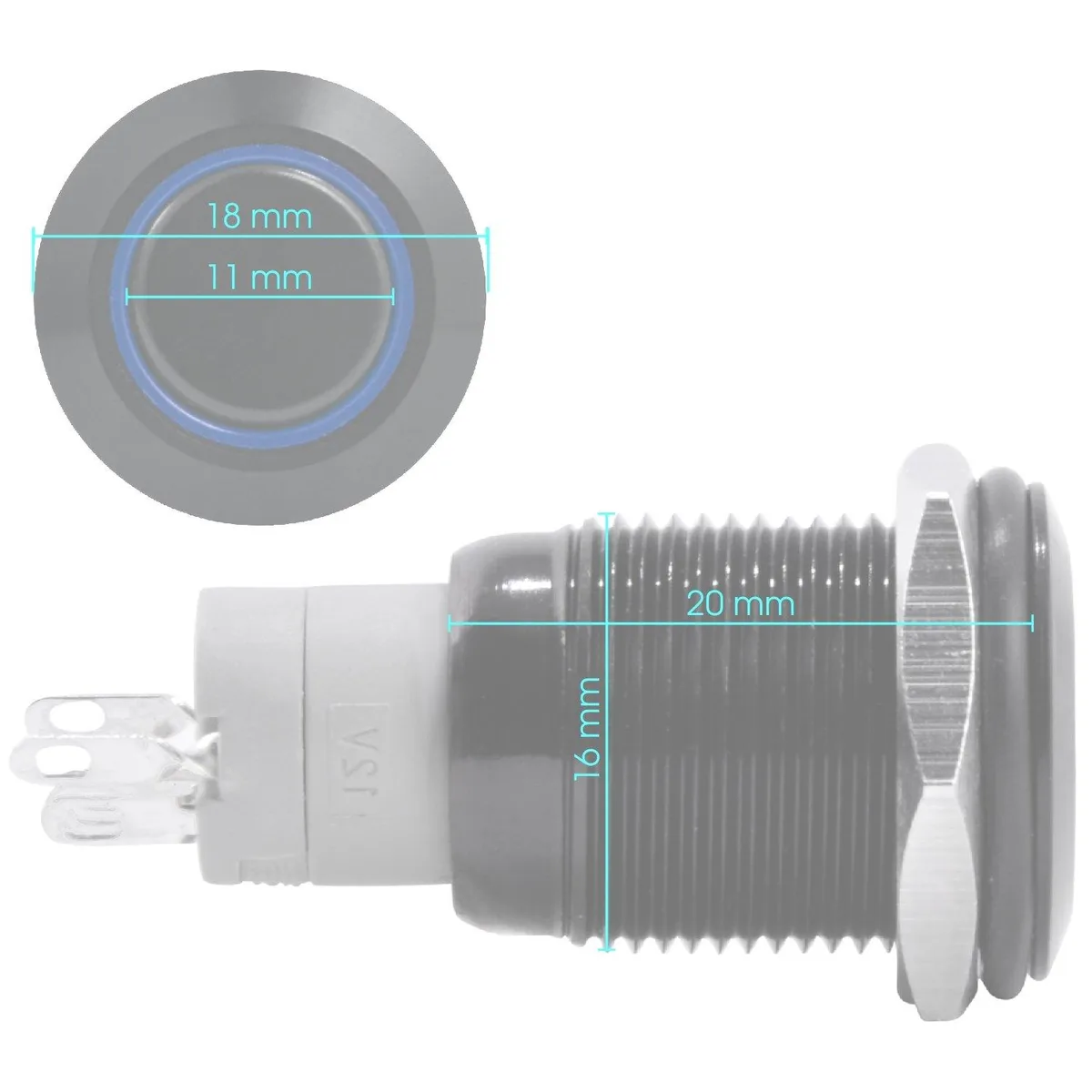

What panel cut-out diameter does the 16 mm latching switch require?

Drill a 5/8 inch (16 mm) hole in the panel for the threaded neck to pass through.

How do I wire the blue LED so it lights only when the switch is on?

Connect the LED in parallel with the normally open contact pair using a 12 V DC supply; it will draw 15 mA when the circuit is closed.

What is the expected operating temperature range for the IP67-rated switch?

The switch is rated for continuous use from -20 °C to 55 °C.
