Stainless steel 28mm momentary push button with blue LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-K7-BLU 28mm Momentary Push Button Switch Blue LED 250V 5A IP67

SKU CH-87WH-ZPXGR MPN LTCH-K7-BLU

A 28 mm stainless-steel momentary push button with blue LED, rated 250 V 5 A and IP67 waterproof for automotive, marine and electronics panels

  • TypePushbutton
  • Amps5 Amps
  • Voltage250 Volts
  • MaterialMetal
  • IP67 rating resists water and dust in harsh environments
  • Momentary action powers circuit only while pressed for precise control
  • 250V 5A capacity handles mains-voltage switching tasks
  • Blue LED runs at 12V 15mA for clear status indication
  • 28mm panel cutout with stainless steel body fits standard mounting holes

28 mm IP67 momentary switch for panels

The JacobsParts LTCH-K7-BLU is a stainless-steel momentary push button rated 250 V AC/DC at 5 A. Its IP67 enclosure withstands heavy rain and splashes, making it suitable for automotive, marine and electronics projects where a rugged panel-mounted control is required.

Separate 12 V blue LED and included hardware

The blue LED operates independently at 12 V DC and 15 mA, so it can stay lit continuously or illuminate only when the button is pressed. The package supplies a metal securing nut and a rubber O-ring that can be fitted behind the faceplate for extra water resistance during installation.

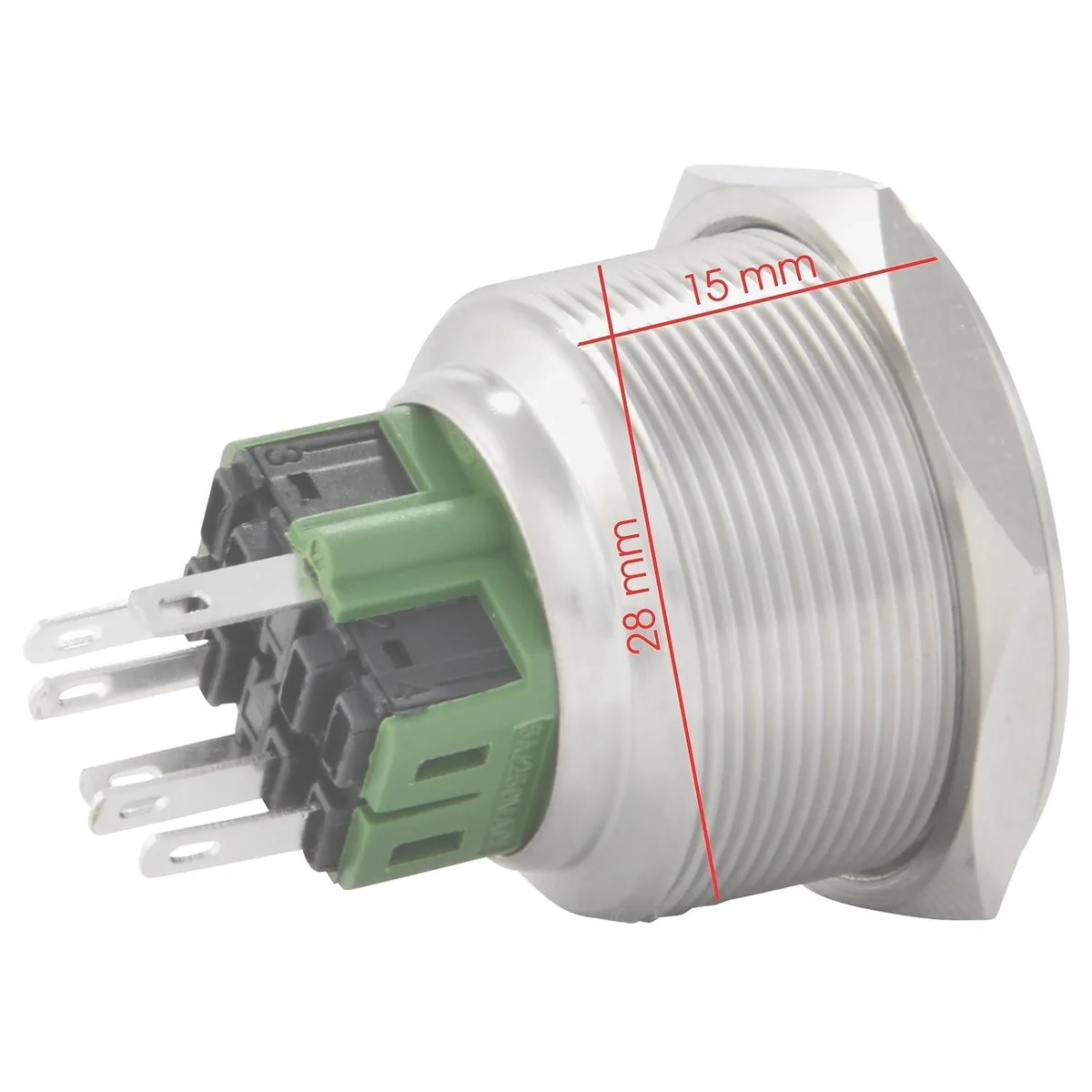

28 mm cutout, 18 mm thread depth, SPST normally-open

A 28 mm (1-1/8") panel cutout accepts the 18 mm threaded neck, while the 32 mm faceplate covers the opening. Total depth behind the panel is 43 mm. The single-pole single-throw normally-open circuit closes only while the button is held, and the switch operates from -20 °C to 55 °C.

Highlights

  • IP67 rating resists water and dust in harsh environments
  • Momentary action powers circuit only while pressed for precise control
  • 250V 5A capacity handles mains-voltage switching tasks
  • Blue LED runs at 12V 15mA for clear status indication
  • 28mm panel cutout with stainless steel body fits standard mounting holes

Specifications

TypePushbutton
Amps5 Amps
Voltage250 Volts
MaterialMetal
BrandJacobsParts
ModelLTCH-K7-BLU

Questions about this item

Will the blue LED or the stainless-steel body need replacement after long-term use?

The LED draws 15 mA at 12 V DC and is rated for continuous operation; the stainless-steel housing and IP67 seal are built for the full -20 °C to 55 °C range with no user-serviceable parts inside.

What electrical limit will be reached first if the switch runs continuously at full load?

The contact rating of 250 V AC/DC at 5 A is the hard ceiling; exceeding either voltage or current will trip the limit before any thermal threshold.

How much heat or noise does the switch produce when it stays powered all day?

The momentary mechanism and separate 12 V 15 mA LED generate negligible heat and no audible noise; the IP67 stainless body dissipates the small load silently.
