Stainless steel momentary push button with blue LED, 14mm faceplate, IP67 waterproof

JacobsParts Inc.

JacobsParts Inc. LTCH-K2-BLU 14mm Stainless Steel Momentary Push Button Switch Blue LED Disconnect

SKU CH-07YE-E52PH MPN LTCH-K2-BLU

A momentary stainless steel push button with blue LED, IP67 waterproof rating, 14 mm faceplate, and 250 V AC/DC switching

  • TypePushbutton
  • Amps5 Amps
  • Voltage250 Volts
  • MaterialStainless Steel
  • IP RatingIP67
  • FeaturesWaterproof
  • Momentary action for precise control
  • IP67 rated stainless steel withstands water and dust
  • Blue LED works at 3V 12V or 24V DC
  • Fits standard 12mm panel cutout with included hardware
  • Rated 250V AC DC 2A for reliable switching

What this switch does

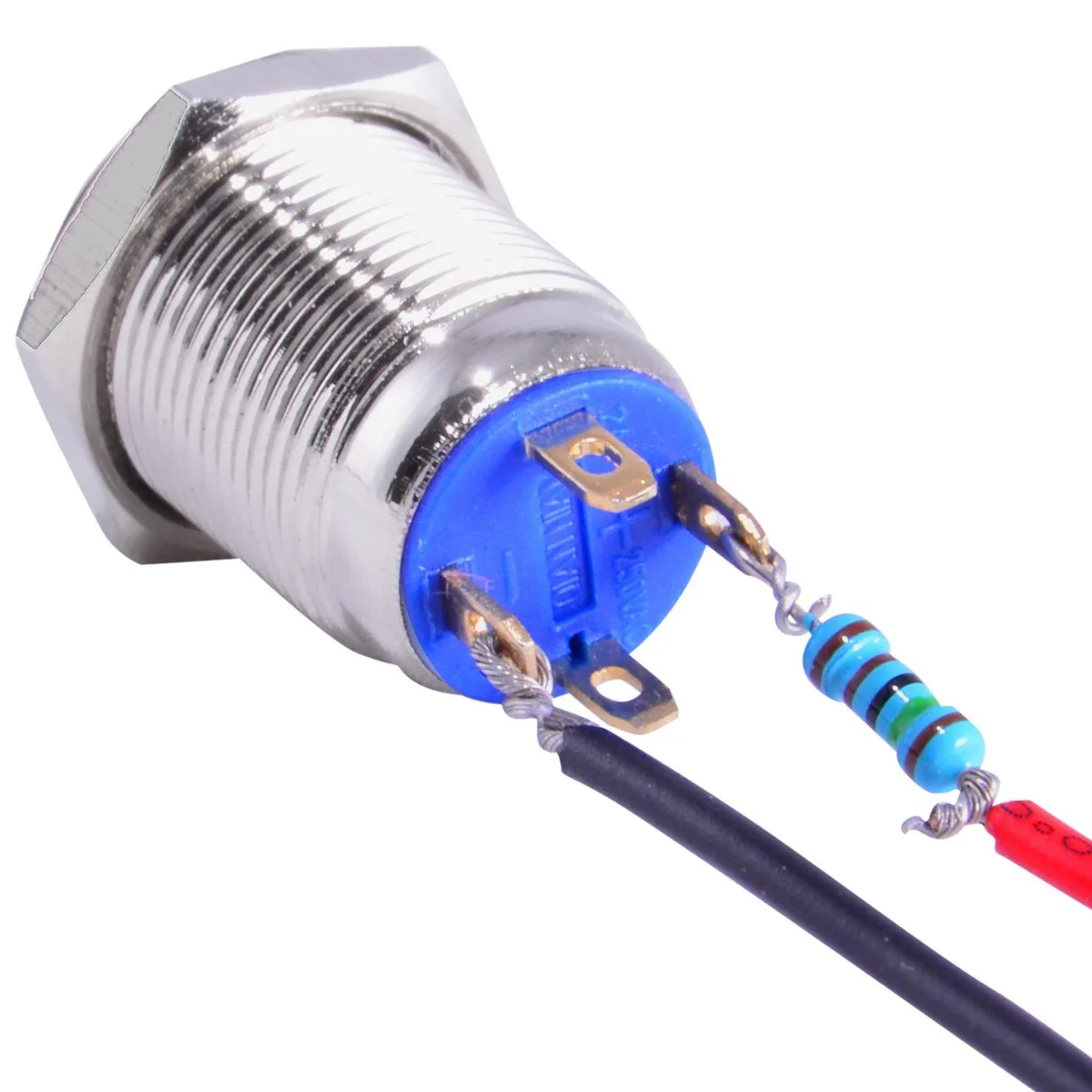

This 14 mm stainless-steel momentary push button provides a momentary ON-NONE-OFF action for 12 V or 24 V DC circuits up to 2 A at 250 V. The blue LED is wired separately so it can stay lit continuously or illuminate only while the button is pressed. It suits automotive, marine and electronics projects that need a rugged, panel-mounted control.

Environment and power

The IP67 rating means the switch survives heavy rain, splashes and temporary immersion without damage. Operating temperature spans minus 20 °C to 55 °C. The LED draws 15 mA at 3 V, 12 V or 24 V DC thanks to an included resistor, while the contacts handle 250 V AC/DC at 2 A in normal use.

Mounting and daily use

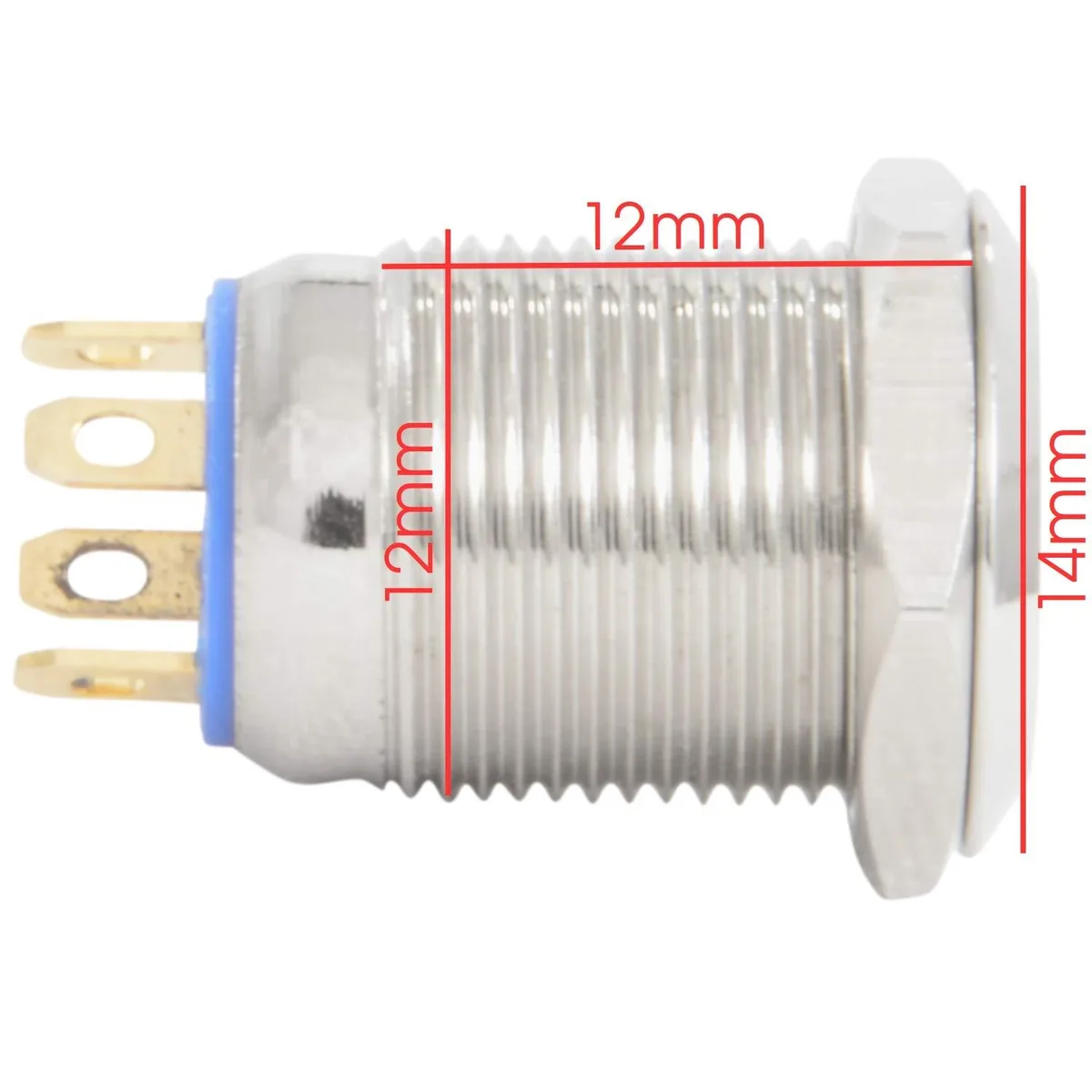

A 12 mm panel cutout accepts the threaded neck, which is secured from behind with the supplied metal nut; an optional rubber O-ring adds extra sealing. Total depth behind the panel is 21 mm including screw terminals. The momentary action returns to off when released, so it is not suitable for latching power applications.

Highlights

  • Momentary action for precise control
  • IP67 rated stainless steel withstands water and dust
  • Blue LED works at 3V 12V or 24V DC
  • Fits standard 12mm panel cutout with included hardware
  • Rated 250V AC DC 2A for reliable switching

Specifications

TypePushbutton
Amps5 Amps
Voltage250 Volts
MaterialStainless Steel
IP RatingIP67
BrandTFX
ModelLTCH-K2-BLU
FeaturesWaterproof

Questions about this item

How do I install the 14mm stainless steel momentary push button switch, and what step is often missed?

Drill a 12mm panel cutout, thread the switch neck through, and secure with the included metal nut. The rubber O-ring is optional but often forgotten; place it between the neck and panel face for full IP67 sealing.

What maintenance or replacement will the blue LED switch need over time?

The LED runs at 15mA across 3V, 12V, or 24V DC with an included resistor. No user maintenance is required; if the LED dims or the momentary action fails after extended cycles, replace the entire switch assembly.

What limit appears first during sustained use of the 250V AC/DC 2A rated switch?

The operating temperature ceiling of 55C is the first constraint under continuous load. Exceeding this can degrade the stainless steel housing and internal contacts before the electrical rating is reached.
