Silver metal momentary pushbutton with blue LED ring 19mm panel mount

JacobsParts Inc.

JacobsParts Inc. LTCH-I4-BLU Momentary Pushbutton Disconnect 19mm IP67 250V 5A Blue LED 12V

SKU CH-X5GS-EKQG4 MPN LTCH-I4-BLU

Momentary 19mm metal pushbutton switch rated IP67 waterproof with blue 12V LED, 250V 5A SPST contacts for automotive or marine panels

  • TypePushbutton
  • Amps5 Amps
  • Voltage250 Volts
  • MaterialMetal
  • IP RatingIP67
  • FeaturesWaterproof
  • Momentary action gives instant control with spring return
  • IP67 rating withstands heavy rain and splashes
  • Blue LED runs on 12 V at 15 mA

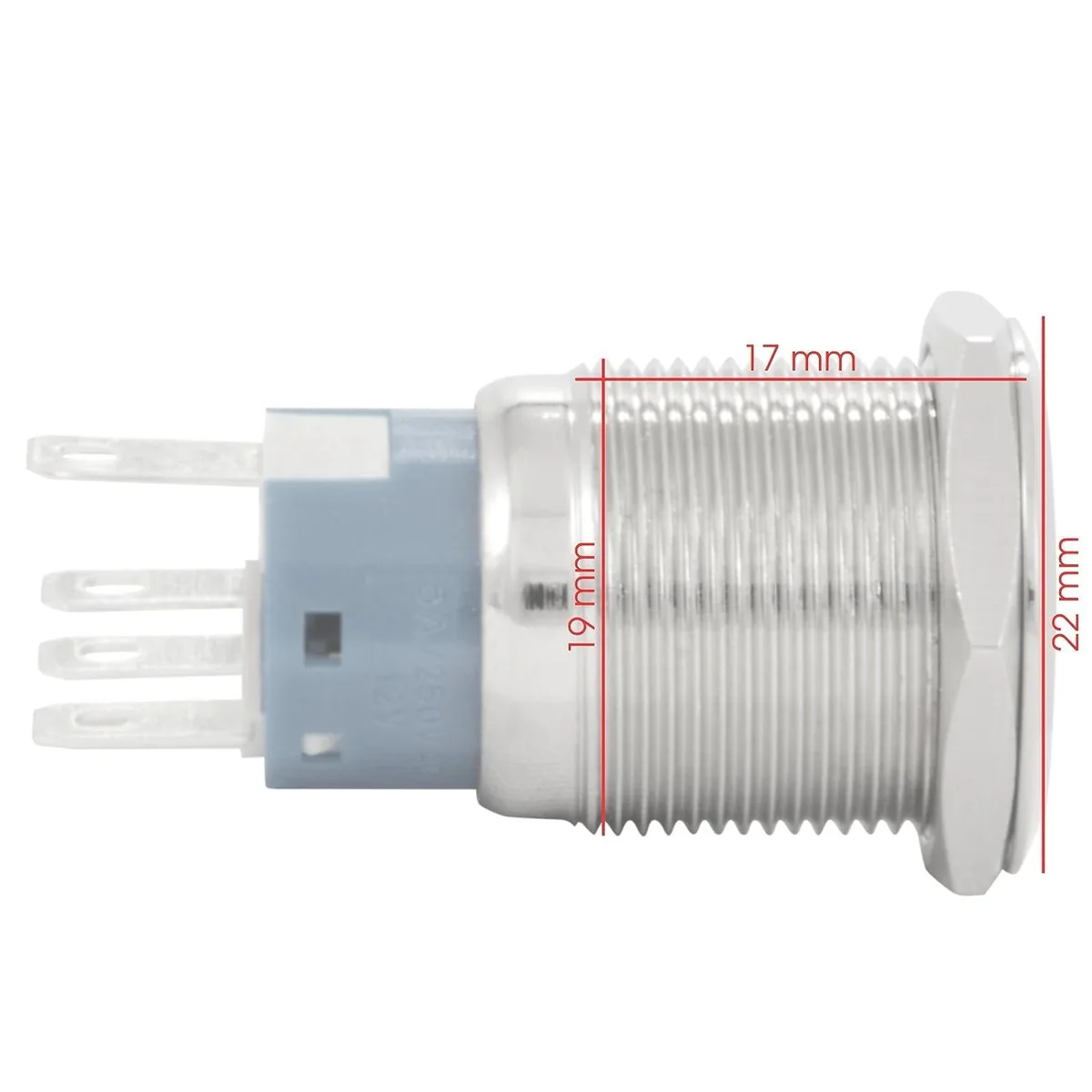

  • Fits 19 mm panel cutout with 22 mm faceplate
  • Rated 250 V AC/DC at 5 A for robust switching

Momentary Pushbutton Switch

The JacobsParts LTCH-I4-BLU is a momentary pushbutton disconnect rated for 250V AC/DC at 5A. It features a blue LED indicator powered by 12V DC at 15mA. The switch suits automotive, marine and electronics projects requiring a momentary ON-NONE-OFF action.

Panel Cutout and Wiring Check

Verify your panel allows a 19mm diameter cutout with 17.5mm thread depth. Ensure the 40mm total depth behind the panel clears internal components. Confirm wiring uses screw terminals and that the separate LED circuit matches a 12V DC supply. The contact type is normally open SPST.

Metal Build and Sealed Mounting

The nickel-plated copper enclosure provides IP67 protection against heavy rain and splashes. An included rubber O-ring adds extra sealing between the faceplate and panel. A metal nut secures the threaded neck from the reverse side. Operating temperature spans -20C to 55C.

Highlights

  • Momentary action gives instant control with spring return
  • IP67 rating withstands heavy rain and splashes
  • Blue LED runs on 12 V at 15 mA
  • Fits 19 mm panel cutout with 22 mm faceplate
  • Rated 250 V AC/DC at 5 A for robust switching

Specifications

TypePushbutton
Amps5 Amps
Voltage250 Volts
MaterialMetal
IP RatingIP67
BrandJacobsParts
ModelLTCH-I4-BLU
FeaturesWaterproof

Questions about this item

What comes in the box and what must be purchased separately?

The package includes the switch, a metal mounting nut and a rubber O-ring for extra water resistance. No wiring, connectors or LED power supply are included and must be sourced separately.

Which version should I choose for a 19mm panel cutout with a blue LED?

This model LTCH-I4-BLU is the only version listed; it fits a 19mm cutout, has a blue LED rated at 12V DC 15mA and a momentary SPST action.

What does the 250V 5A rating mean when the switch is installed in a 12V vehicle system?

The contacts are rated for up to 250V AC/DC at 5A; at 12V the same 5A contact limit applies, so the switch can handle loads within that current limit on a 12V circuit.
