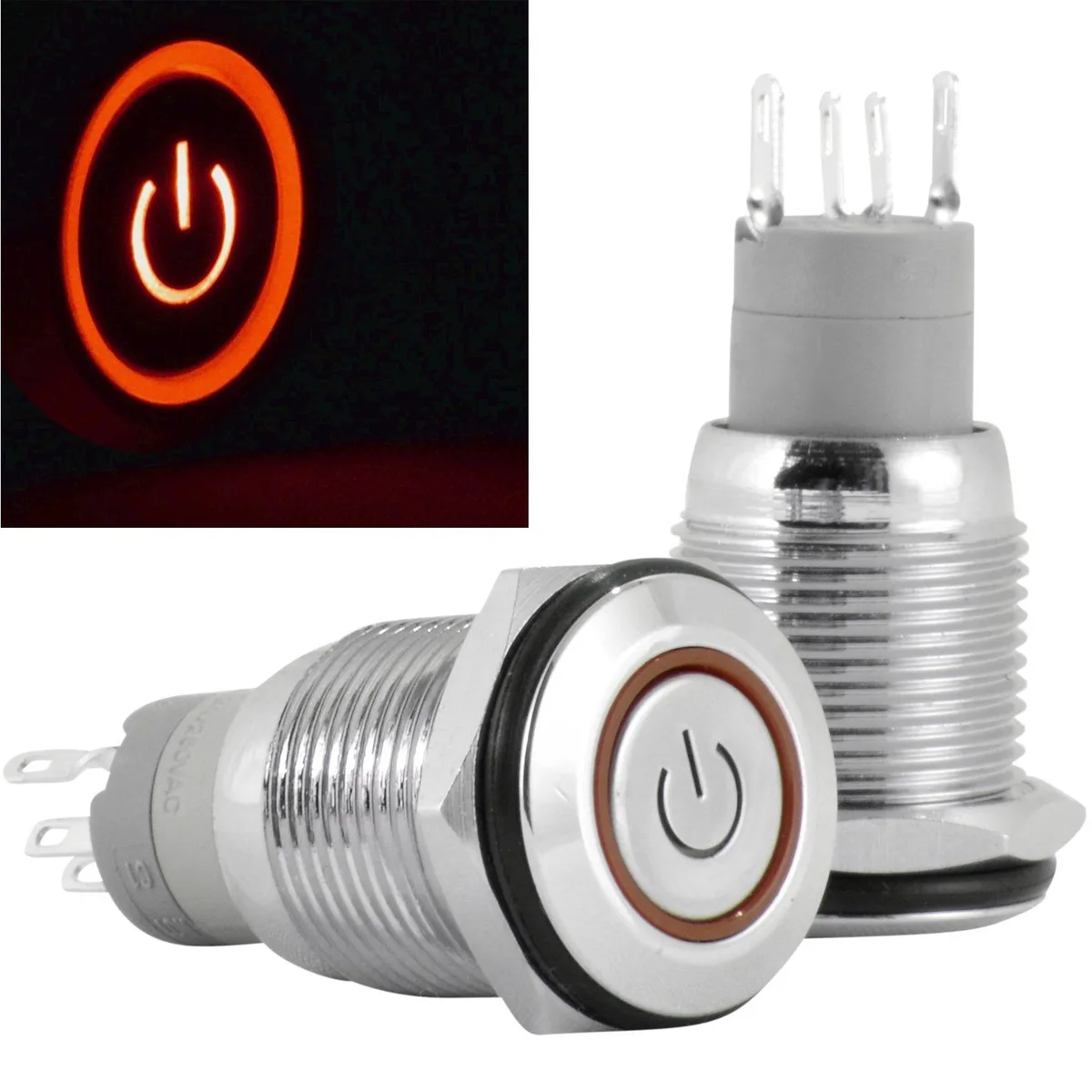

Stainless steel momentary push button with red LED ring, 16mm panel cutout

JacobsParts Inc.

JacobsParts Inc. LTCH-I3-RED 16mm 12V Momentary Push Button Disconnect Stainless Steel Red LED IP67

SKU CH-E4M8-HCG8Y MPN LTCH-I3-RED

A 16 mm momentary push button rated IP67 waterproof with a 12 V red LED, switching up to 250 V AC/DC at 3 A

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialMetal
  • IP RatingIP67
  • FeaturesWaterproof
  • Momentary action lets you start engines or power devices with a simple press
  • IP67 rating protects the switch against heavy rain and splashes in outdoor use
  • Separate 12V red LED can stay lit constantly or light only when activated
  • 16mm panel cutout and threaded neck install quickly with the included metal nut
  • Rated for 250V AC/DC at 3A to handle a wide range of circuits

16mm 12V Momentary Switch for Panels

This 16mm stainless-steel pushbutton fits a 5/8 inch panel cutout and runs on 12V DC for the red LED. The momentary action closes the circuit only while the button is held, making it suitable for starter, horn or PC power duties. It mounts with a threaded neck and supplied metal nut, and an optional rubber O-ring adds extra sealing.

Sustained 3A 250V Rating with IP67 Seal

The switch contacts are rated for 3 amps at 250 volts AC or DC, so the device handles continuous load without derating. IP67 protection means the assembly survives immersion and heavy splashes, keeping the internals functional in wet or dusty environments. Operating temperature spans -20C to 55C, so performance remains stable across a wide thermal range.

Nickel-Plated Copper Body with Screw Terminals

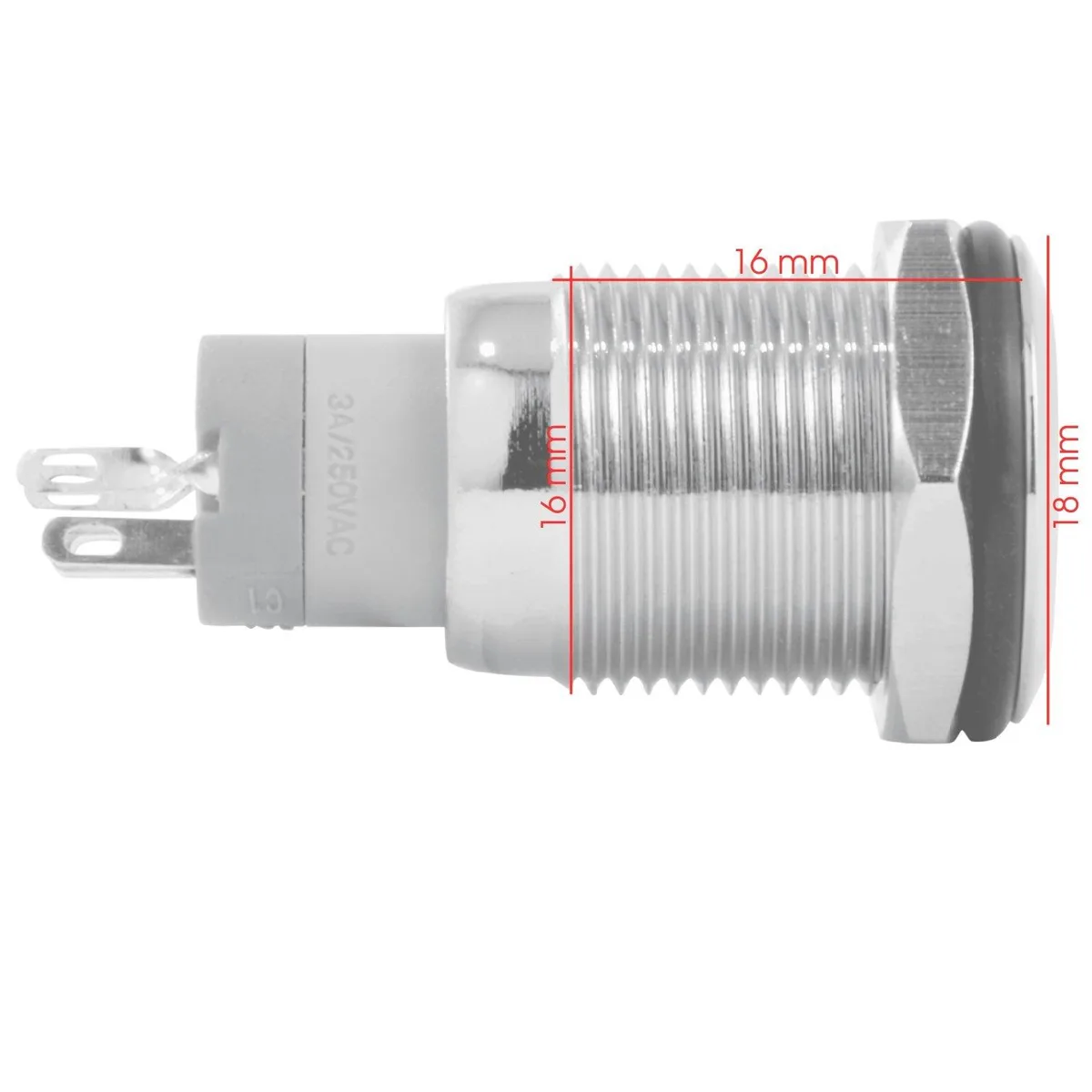

The enclosure uses nickel-plated copper for corrosion resistance, while the faceplate measures 18mm and total depth is 36mm including screw terminals. Separate LED wiring lets you choose constant illumination or button-activated light. The package includes the switch, metal nut and rubber O-ring for a complete, ready-to-install kit.

Highlights

  • Momentary action lets you start engines or power devices with a simple press
  • IP67 rating protects the switch against heavy rain and splashes in outdoor use
  • Separate 12V red LED can stay lit constantly or light only when activated
  • 16mm panel cutout and threaded neck install quickly with the included metal nut
  • Rated for 250V AC/DC at 3A to handle a wide range of circuits

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialMetal
IP RatingIP67
BrandJacobsParts
ModelLTCH-I3-RED
FeaturesWaterproof

Questions about this item

Does the 12V red LED generate noticeable heat when the switch is illuminated continuously?

The LED draws 15 mA at 12 V DC, producing minimal heat during constant operation.

What panel thickness and wiring method are required to mount this 16 mm switch?

A 16 mm cutout and screw terminals are needed; the switch includes a metal nut and optional rubber O-ring for securing panels up to the 16 mm thread depth.

Will the 3 A, 250 V rating handle the same load as an older 16 mm momentary switch I am replacing?

Yes, the SPST normally-open contacts are rated for 3 A at 250 V AC/DC, matching common legacy 16 mm momentary switches.
