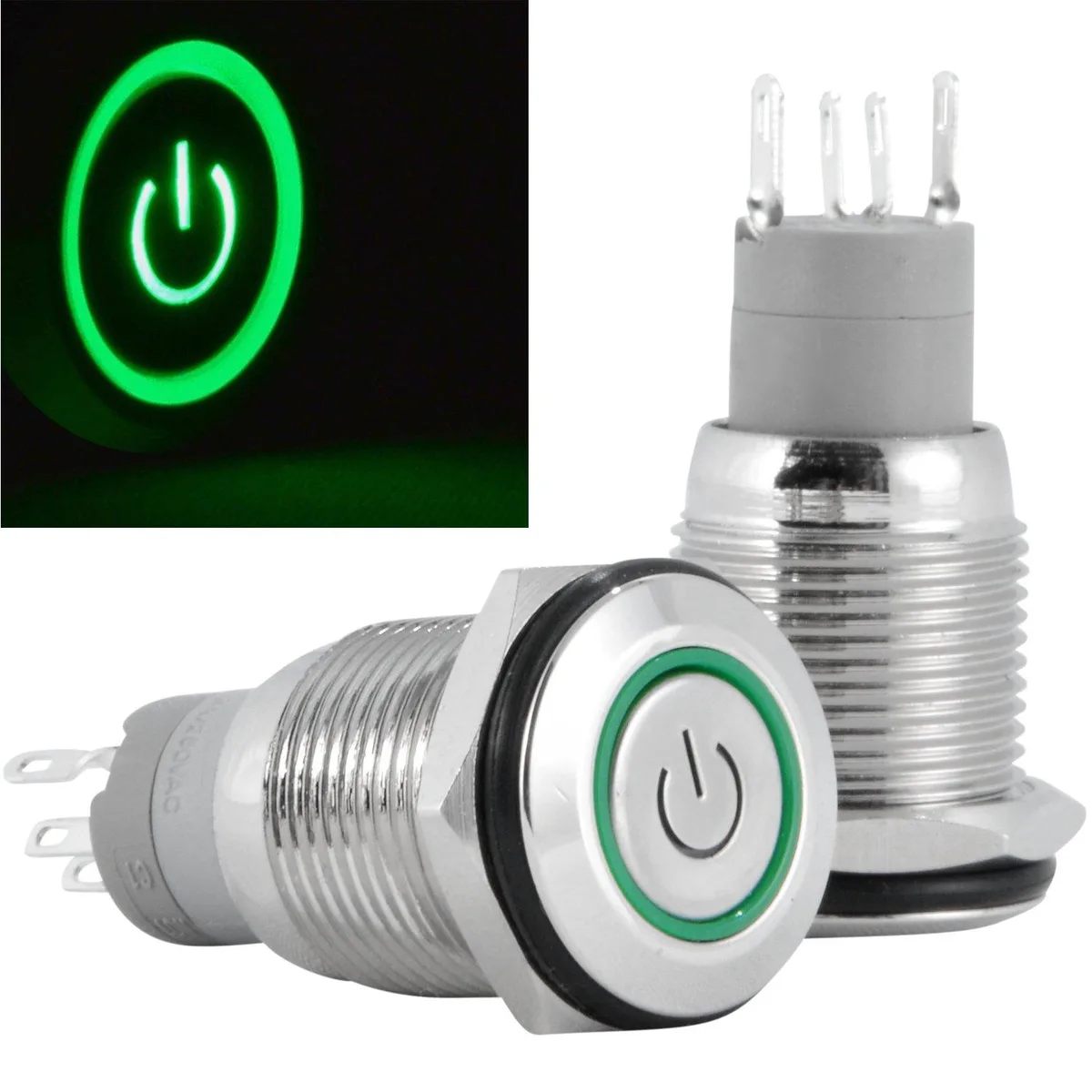

Stainless steel momentary push button with green LED ring, 16mm panel cutout, IP67 waterproof rating

JacobsParts Inc.

JacobsParts Inc. LTCH-I3-GRN 16mm 12V Momentary Push Button Disconnect Stainless Steel Green LED IP67

SKU CH-GTYJ-ZVTAG MPN LTCH-I3-GRN

A momentary push-button switch with a green LED and IP67 waterproof rating for 12 V DC circuits

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialMetal
  • IP RatingIP67
  • FeaturesWaterproof
  • Momentary action gives instant control
  • Green LED provides clear status indication
  • IP67 rating withstands water and dust
  • 16 mm panel cutout fits standard openings
  • 250 V 3 A rating handles mains power

16 mm momentary switch for 12 V projects

This nickel-plated copper push button fits a 16 mm panel cutout and carries a green LED rated at 12 V DC 15 mA. The momentary action closes the circuit only while pressed, making it suitable for starter, horn or PC power functions. Rated at 250 V AC/DC 3 A, the single-pole single-throw contacts handle moderate loads in automotive, marine and electronics builds.

IP67 stainless construction with screw terminals

The metal body and included rubber O-ring provide an IP67 seal against heavy rain and splashes when mounted in a 5/8 inch hole. Screw terminals allow secure wire attachment without soldering, and the separate LED circuit lets you choose constant or switched illumination. Thread depth matches the cutout diameter at 16 mm, while total depth behind the panel is 36 mm including contacts.

Replaces basic toggle

Builders upgrading from unsealed toggles gain waterproof reliability without changing the 16 mm mounting footprint. The momentary operation differs from latching types, so verify the ON-NONE-OFF behaviour matches the control logic required. The jump is worth it when environmental exposure or a clean LED indicator are priorities over a maintained on position.

Highlights

  • Momentary action gives instant control
  • Green LED provides clear status indication
  • IP67 rating withstands water and dust
  • 16 mm panel cutout fits standard openings
  • 250 V 3 A rating handles mains power

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialMetal
IP RatingIP67
BrandJacobsParts
ModelLTCH-I3-GRN
FeaturesWaterproof

Questions about this item

What does the IP67 rating mean for this 16mm push button switch?

IP67 means the switch is dust-tight and protected against temporary immersion in water, suitable for outdoor or marine use.

What size panel cutout is required for the 16mm stainless steel switch?

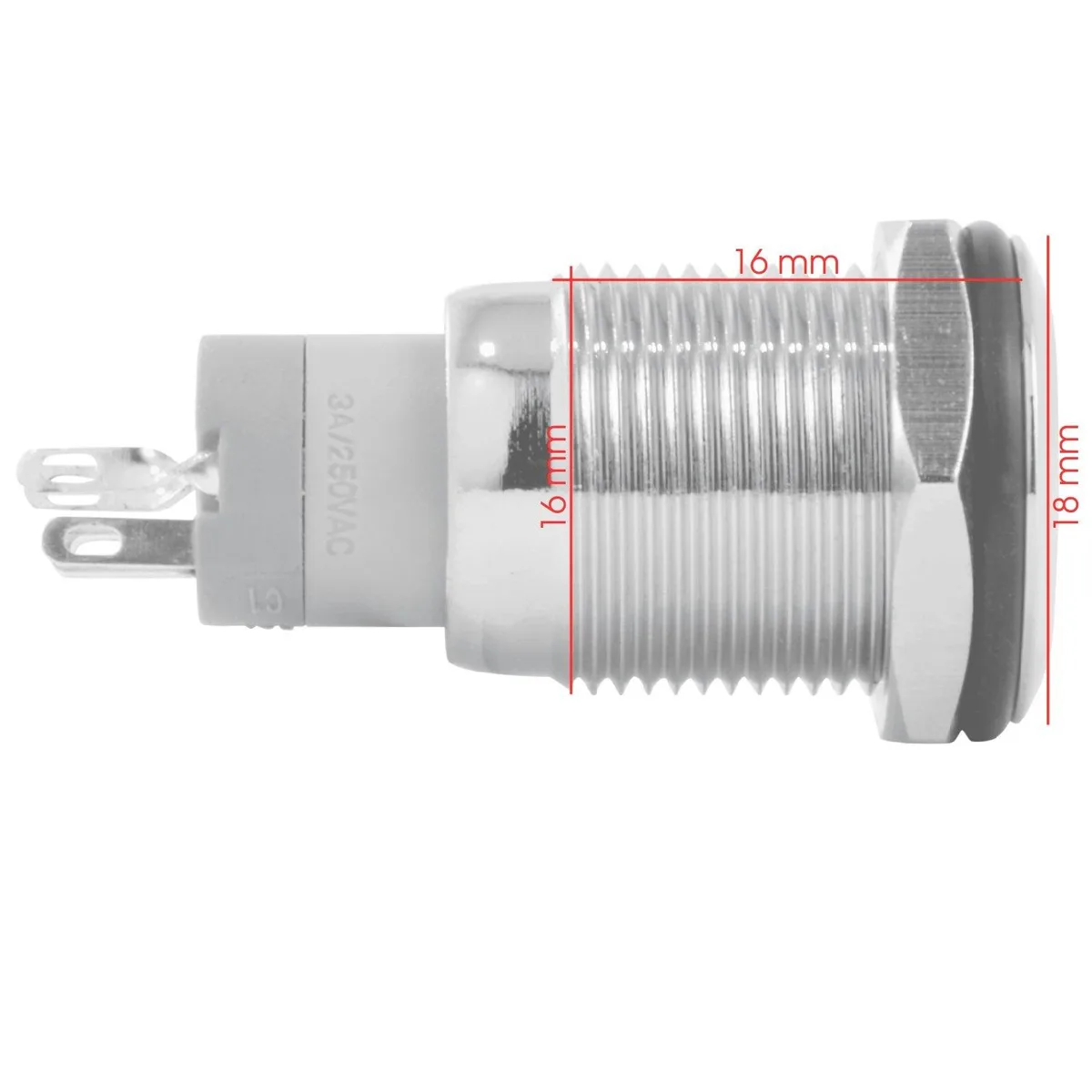

Drill a 5/8 inch (16mm) hole for the threaded neck; the faceplate measures 3/4 inch (18mm) across.

How do I wire the green LED so it lights only when the button is pressed?

Connect the LED terminals in series with the normally open contacts so the LED receives 12V DC only when the momentary circuit closes.
