12mm black stainless momentary push button with blue LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-D2-BLU 12mm IP67 Momentary Disconnect Blue LED

SKU CH-7CG0-QJKJP MPN LTCH-D2-BLU

12 mm IP67 momentary push button with blue LED ring for 12 V or 24 V panels

  • TypePushbutton
  • Amps2 Amps
  • Voltage12 Volts
  • MaterialAluminum
  • IP67 rating withstands heavy rain and splashes
  • Momentary action powers on only while pressed
  • Blue LED ring illuminates for clear status

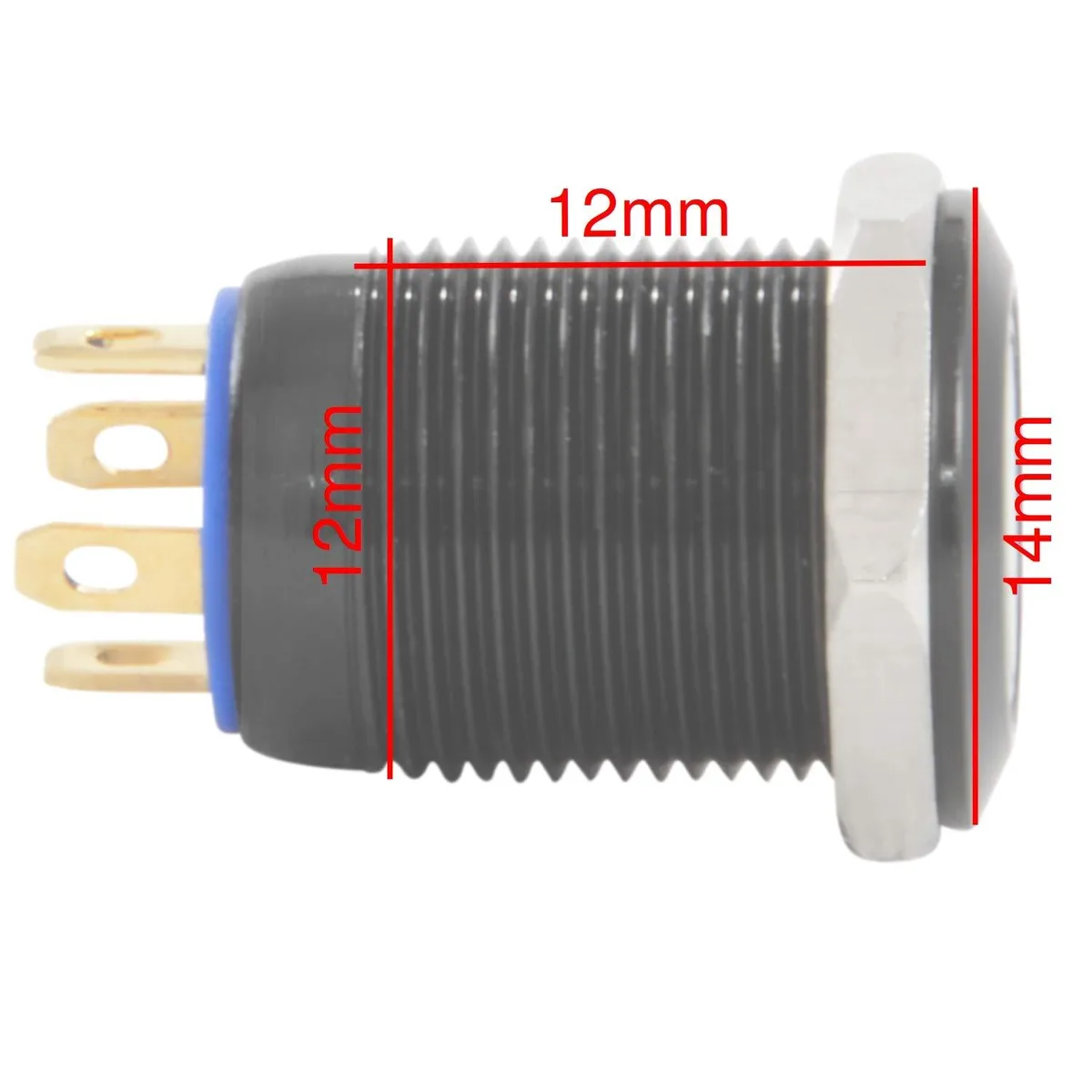

  • Fits standard 12mm panel cutout with included hardware
  • Rated for 250V AC/DC 2A switching capacity

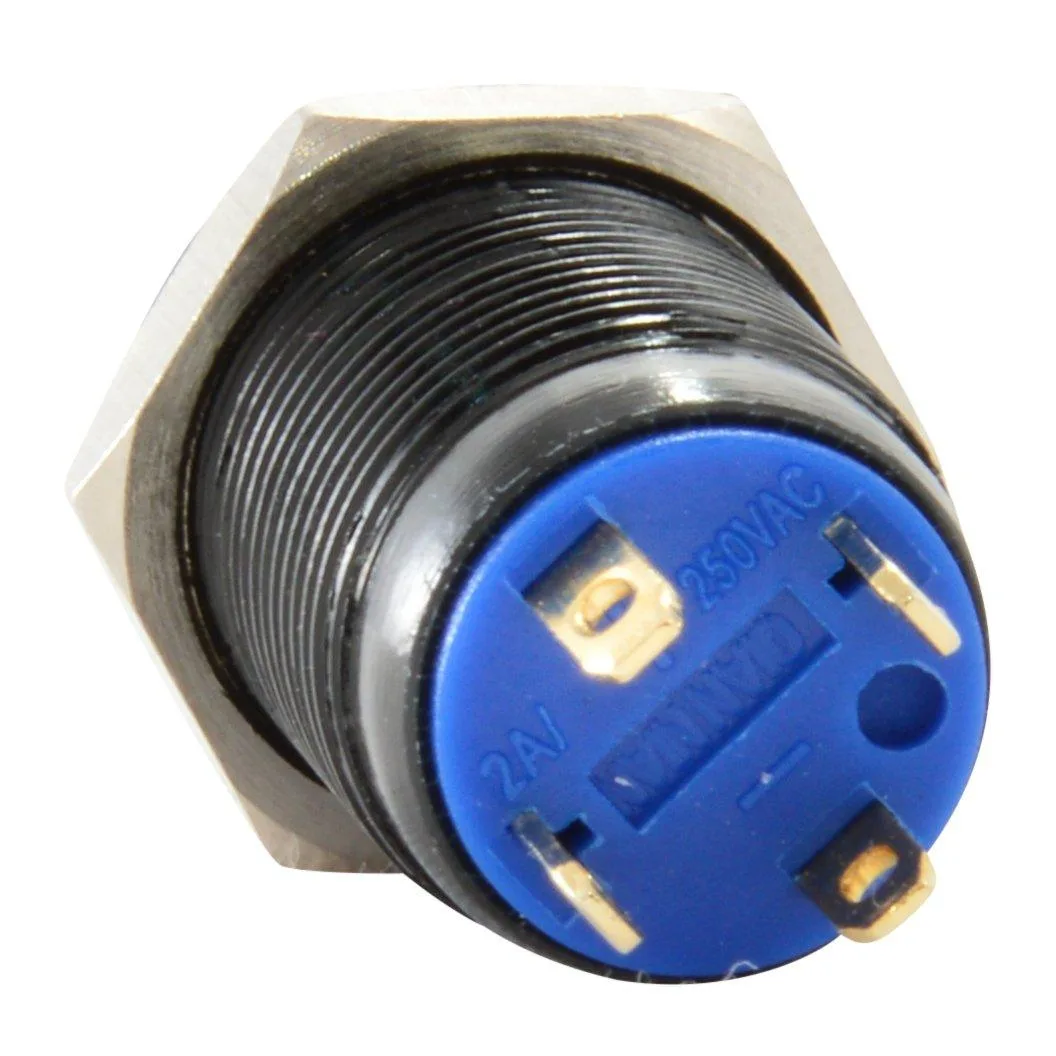

12mm IP67 momentary push button

This 12mm momentary push button switch is built for automotive, marine and electronics projects that need a compact, weatherproof control. The aluminium alloy body carries an IP67 rating so it survives heavy rain and splashes in exposed locations. It suits builders who want a single-pole, single-throw switch with a blue LED ring for status indication.

Included nut, O-ring and 12V/24V resistor

The package supplies a metal securing nut and a rubber O-ring for optional extra sealing behind the panel. A current-limiting resistor is also provided so the LED can run directly from 12 or 24 volt supplies without external components. These parts let you complete the installation with only a 12mm drill bit and basic hand tools.

2 amp switching capacity with 250 volt rating

The contacts are rated for 2 amps at up to 250 volts AC or DC, giving headroom for starter solenoids, horn relays or PC power circuits. The LED draws 15 milliamps and operates from 3 to 24 volts DC, so it stays bright across common vehicle voltages. The momentary action returns to off when released, which limits use to functions that need only brief activation.

Highlights

  • IP67 rating withstands heavy rain and splashes
  • Momentary action powers on only while pressed
  • Blue LED ring illuminates for clear status
  • Fits standard 12mm panel cutout with included hardware
  • Rated for 250V AC/DC 2A switching capacity

Specifications

TypePushbutton
Amps2 Amps
Voltage12 Volts
MaterialAluminum
BrandJacobsParts
ModelLTCH-D2-BLU

Questions about this item

Will the 12 V LED resistor or the aluminium zinc alloy faceplate need replacement first?

The LED is rated for 15 mA at 12 V with the included resistor and the aluminium zinc alloy enclosure is corrosion resistant, so neither item has a scheduled replacement interval.

Does the 2 A contact rating or the IP67 seal limit continuous operation first?

The switch is rated for 2 A at 250 V AC/DC and the IP67 rating covers water ingress; sustained use is limited by the 2 A contact rating, not the seal.

How hot does the 12 mm switch body get when the LED runs all day at 12 V?

The LED draws only 15 mA at 12 V, so heat rise in the aluminium zinc alloy body is minimal and the operating temperature range extends to 55 °C.
