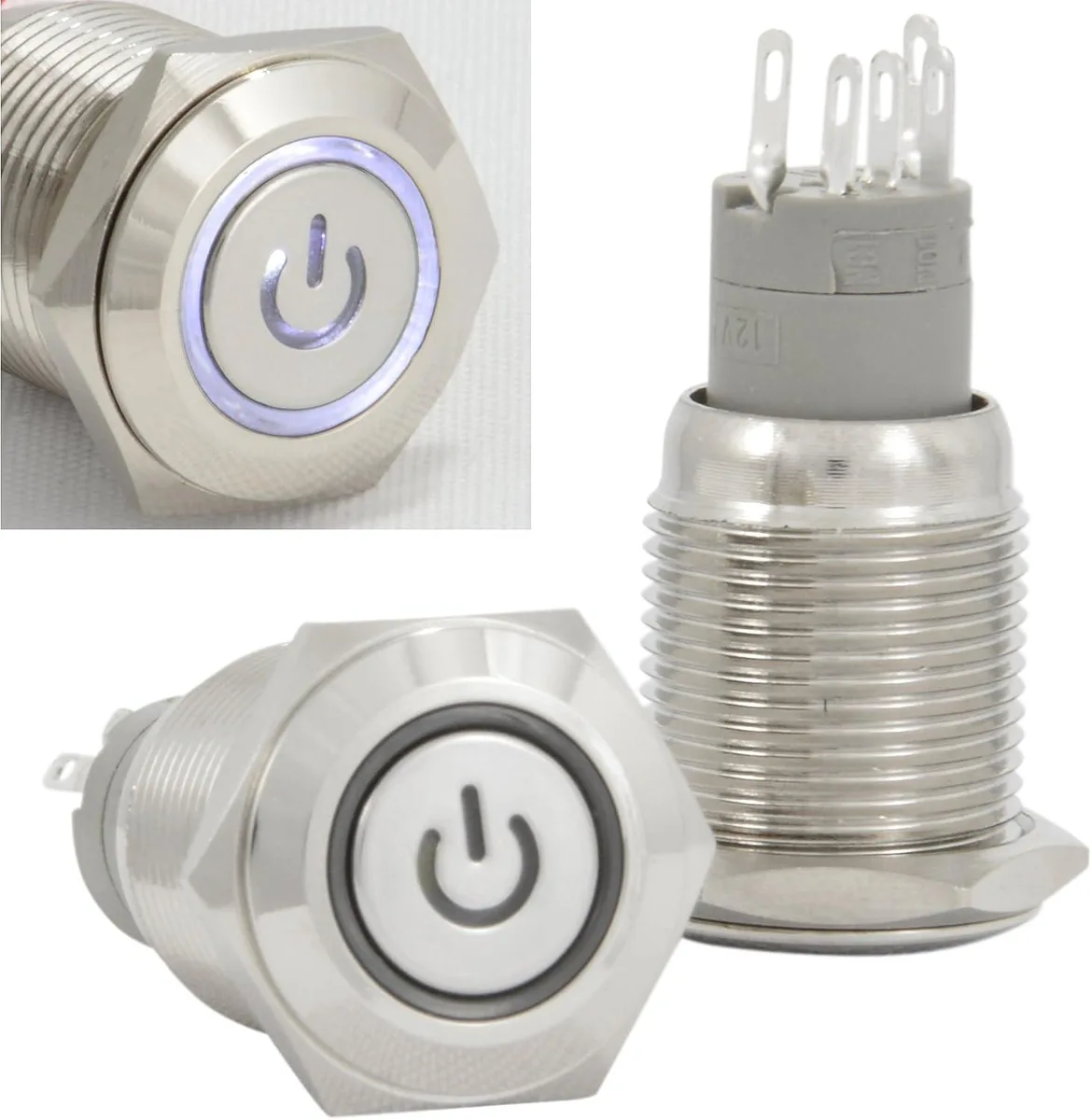

Stainless steel 16mm latching push button with white LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-C3-WHT 16mm 12V Latching Push Button Disconnect Stainless Steel White LED IP67

SKU CH-979Y-484XW MPN LTCH-C3-WHT

A 16mm stainless-steel latching push button rated 250V 3A with a white 12V LED and IP67 protection

  • TypePushbutton
  • Amps3 Amps
  • Voltage?250 Volts
  • Material?Metal
  • Latching push-on push-off action simplifies control
  • IP67 stainless steel resists water and corrosion
  • 12 V white LED offers flexible wiring options
  • 16 mm panel cutout fits standard mounting holes
  • Rated 250 V AC/DC at 3 A for reliable switching

16mm Latching Switch for 12V Projects

This stainless-steel pushbutton fits a 16mm panel cutout and provides a maintained on-off action for auxiliary lighting or electronics. It is rated for 250V AC/DC at 3A and includes a metal nut and rubber O-ring for installation. The white LED operates at 12V DC and draws 15mA. Builders wiring a simple power control for vehicles, boats or benches will find the SPDT 1NO1NC contact arrangement straightforward to integrate.

Sustained Load Behaviour and Contact Life

The switch maintains its latched state without continuous pressure and is rated for 3A at up to 250V AC/DC under steady operation. Its 1NO1NC SPDT circuit isolates the LED supply from the load circuit so the indicator can be wired independently. Contacts are designed for maintained switching rather than momentary actuation cycles. The operating temperature range spans -20C to 55C for consistent performance in engine bays or exposed decks.

IP67 Sealing Thermal and Power Profile

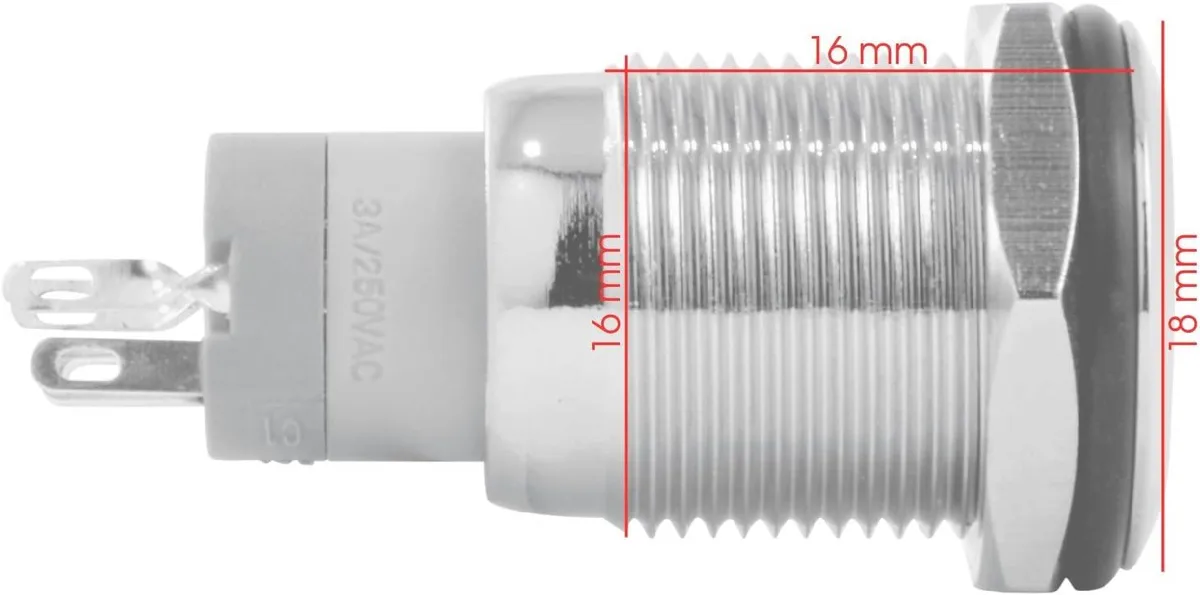

The IP67-rated stainless-steel body resists water ingress during heavy rain or spray without active cooling. The LED draws only 15mA at 12V, adding negligible heat to the panel. Total depth behind the panel is 36mm including contacts, leaving room for wiring in tight enclosures. Faceplate diameter is 18mm and thread depth is 16mm, allowing a clean flush mount on metal or plastic surfaces.

Highlights

  • Latching push-on push-off action simplifies control
  • IP67 stainless steel resists water and corrosion
  • 12 V white LED offers flexible wiring options
  • 16 mm panel cutout fits standard mounting holes
  • Rated 250 V AC/DC at 3 A for reliable switching

Specifications

TypePushbutton
Amps3 Amps
Voltage?250 Volts
Material?Metal
BrandJacobsParts
ModelLTCH-C3-WHT

Questions about this item

Does the 12 V LED draw noticeable power or generate heat when the switch runs continuously?

The LED draws 15 mA at 12 V DC, which is a very small current and produces negligible heat during all-day operation.

What panel thickness and hole size are required to mount this 16 mm switch?

You need a 5/8 inch (16 mm) diameter cut-out; the threaded neck is 5/8 inch (16 mm) deep, so the panel must be thinner than that to allow the securing nut to tighten.

Can the SPDT contacts switch a 12 V accessory circuit while I keep the existing factory wiring?

Yes, the 1NO1NC SPDT contacts are rated for 250 V AC/DC at 3 A, so they can safely carry a 12 V load alongside your original wiring.
