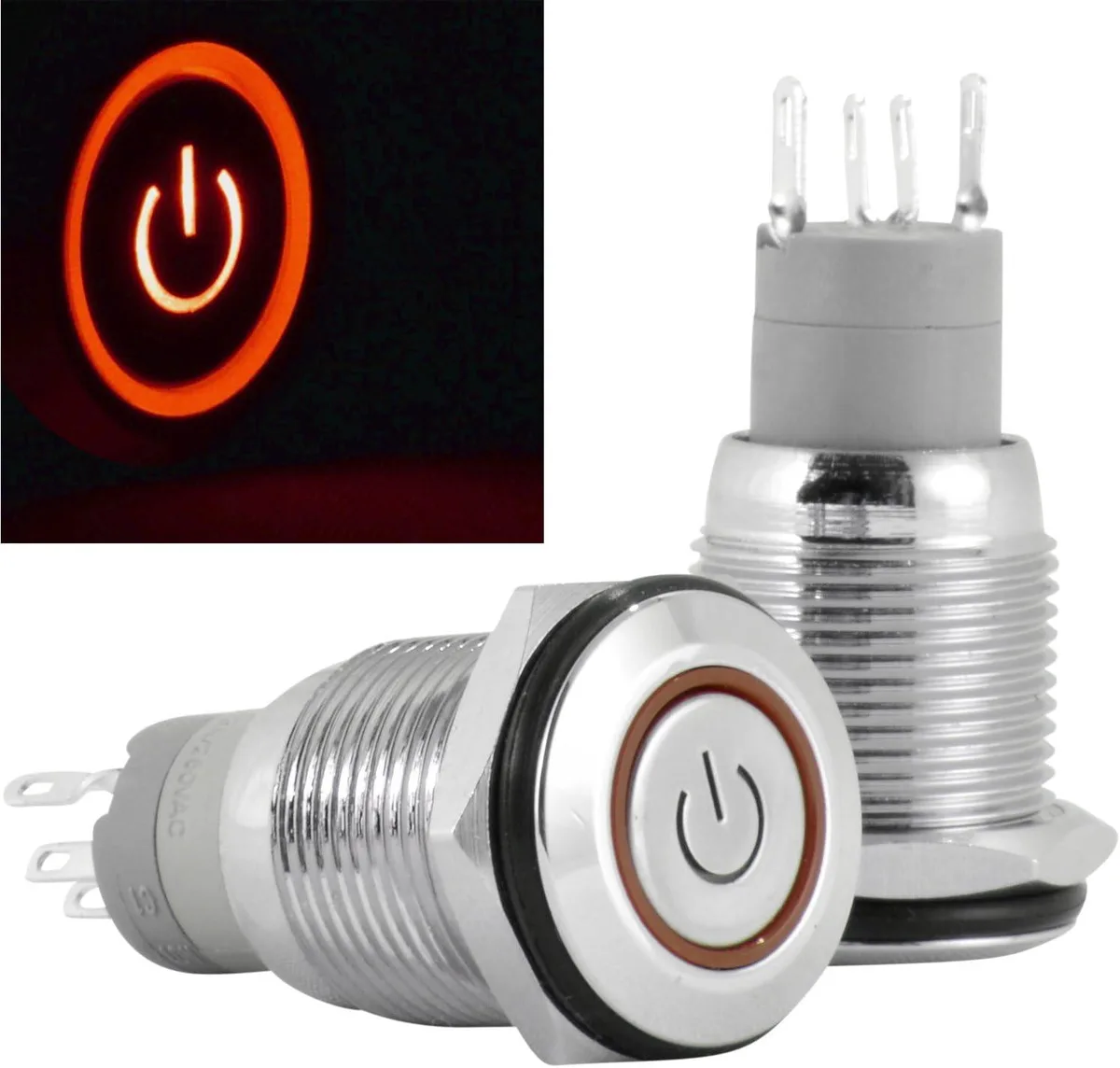

Circular stainless steel latching push button with red LED symbol, 16mm panel cutout

JacobsParts Inc.

JacobsParts Inc. LTCH-C3-RED 16mm IP67 Latching Push Button Disconnect 12V 3A

SKU CH-FB2H-3ATJH MPN LTCH-C3-RED

A 16 mm IP67 stainless-steel latching push button with a red LED, rated 12 V 3 A for automotive and marine panels

  • TypePush Button
  • Amps3 Amps
  • Voltage12 Volts
  • Material?Metal
  • Latching action holds state without constant pressure
  • IP67 stainless steel resists water and corrosion
  • 16 mm panel cutout fits standard 5/8" hole
  • 12 V LED configurable for always-on or switched operation
  • SPDT 1NO1NC circuit handles 250 V 3 A switching

16 mm IP67 Latching Disconnect

The JacobsParts LTCH-C3-RED is a stainless-steel push-button switch rated for 12 V DC and 3 A. It fits a 16 mm panel cutout and carries an IP67 protection rating against water and dust ingress. The latching action stays on or off with each press.

Suits low-voltage panels needing a rugged on/off

Builders wiring auxiliary LED lighting on vehicles, boats or equipment enclosures will appreciate the corrosion-resistant body and separate LED circuit. Projects that require momentary action, higher current switching or AC mains isolation should select a different switch type.

Handles 3 A at 12 V with comfortable headroom

The SPDT 1NO1NC contacts switch cleanly within the -20 °C to 55 °C operating range. Continuous loads above 3 A or voltages beyond 250 V AC/DC exceed the rated limits and will need a heavier-duty disconnect.

Highlights

  • Latching action holds state without constant pressure
  • IP67 stainless steel resists water and corrosion
  • 16 mm panel cutout fits standard 5/8" hole
  • 12 V LED configurable for always-on or switched operation
  • SPDT 1NO1NC circuit handles 250 V 3 A switching

Specifications

TypePush Button
Amps3 Amps
Voltage12 Volts
Material?Metal
BrandJacobsParts
ModelLTCH-C3-RED

Questions about this item

What panel cutout size does the 16 mm switch need?

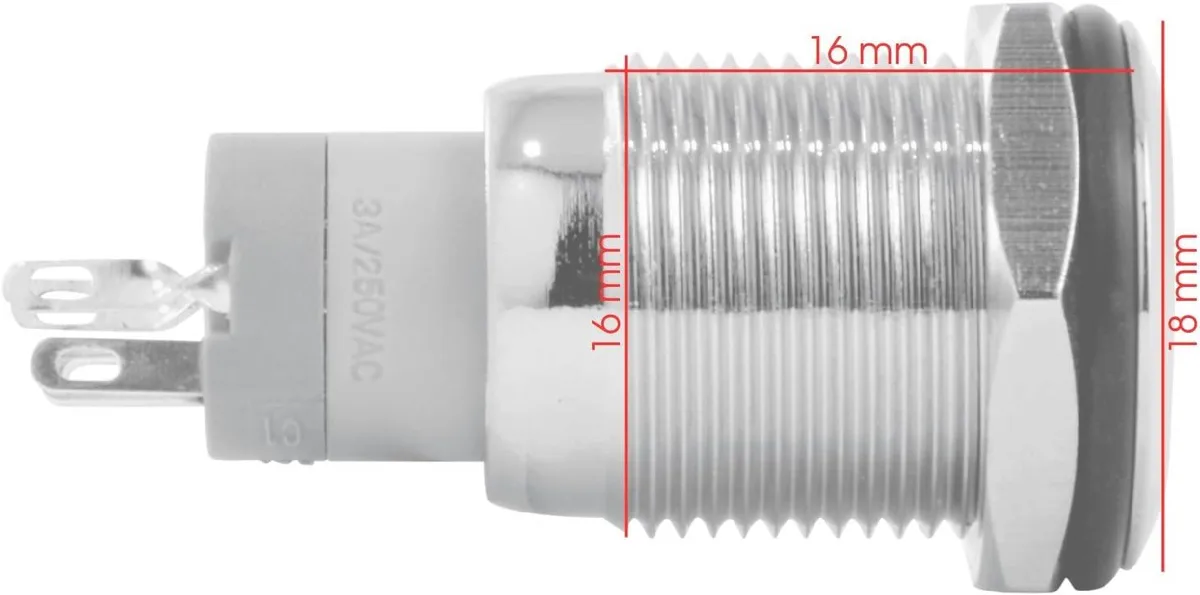

Drill a 16 mm hole for the threaded neck; the 18 mm faceplate covers the edge.

Can the 250 V 3 A contacts switch a 12 V LED circuit?

Yes, the SPDT contacts are rated for 250 V AC/DC at 3 A, well above 12 V loads.

How do I confirm the IP67 seal after installing the O-ring?

Press the button; the red LED lights and the switch latches firmly without water ingress.
