Stainless steel 30mm latching push button with green LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-B8-GRN 30mm Latching Push Button Disconnect 12V Green LED IP67 Stainless Steel

SKU CH-0T7J-5155J MPN LTCH-B8-GRN

A 30 mm latching push-button disconnect rated 12 V with a green LED, IP67 stainless steel body and 5 A switching capacity

  • TypePushbutton
  • Amps5 Amps
  • Voltage12 Volts
  • MaterialMetal
  • FeaturesHeavy Duty, Illuminated, Waterproof
  • Latching maintained operation stays on until pressed again
  • IP67 rated stainless steel resists water and corrosion
  • Green 12V LED illuminates panel for clear status
  • Fits 30mm panel cutout with included nut and O-ring

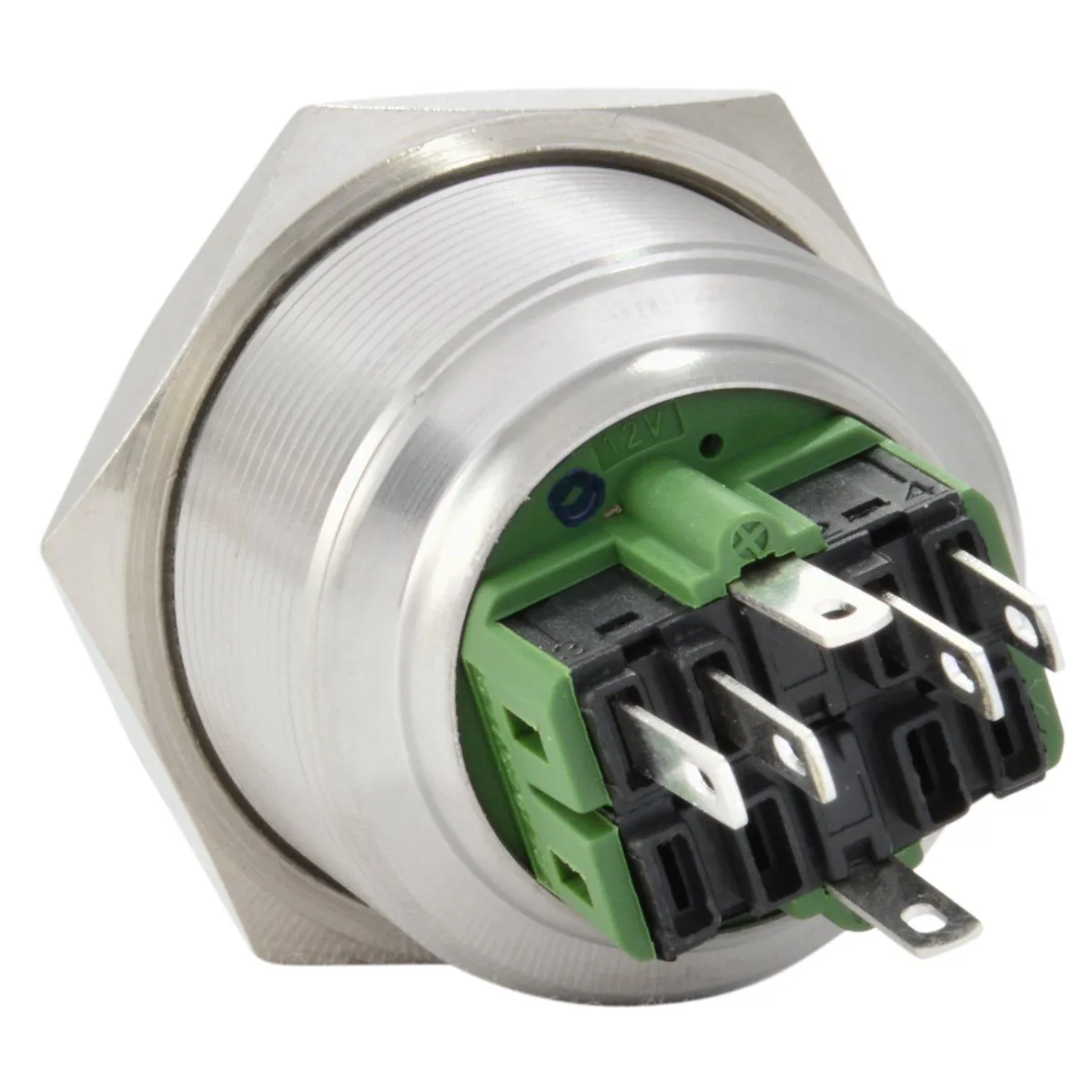

  • SPDT contacts rated 250V AC/DC 5A for versatile wiring

30mm Latching Power Switch

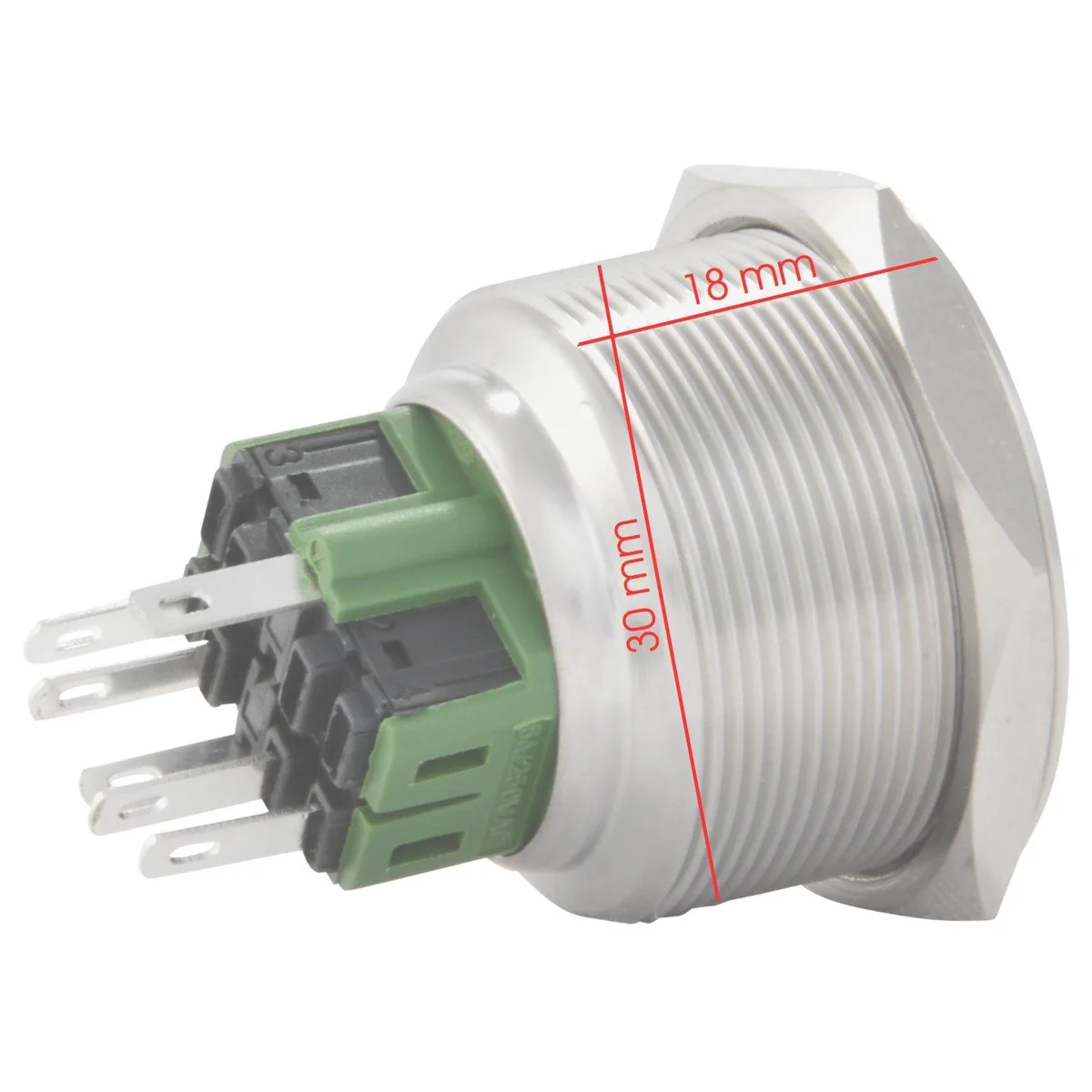

This 30mm stainless steel pushbutton provides latching power control for 12V DC circuits up to 5 amps. Its IP67 rating suits automotive, marine and outdoor electronics where moisture exposure is routine. The green LED indicates status and can be wired independently of the switch action. Panel cutout requires a 30mm hole with 18mm thread depth.

Included Hardware and Wiring Flexibility

The package supplies a metal securing nut and a rubber O-ring for optional extra sealing behind the panel. Because the LED circuit is separate, you can choose constant illumination or LED-on-only-when-activated wiring. SPDT contacts with one normally-open and one normally-closed path allow simple on-off or changeover configurations.

Electrical Capacity and Environmental Limits

The switch handles 250V AC/DC at 5 amps while the LED draws 15mA at 12V DC. Operating temperature spans -20C to 55C, giving headroom for engine-bay and exposed-deck installations. It is not suited for loads exceeding 5 amps or for circuits requiring momentary rather than maintained action.

Highlights

  • Latching maintained operation stays on until pressed again
  • IP67 rated stainless steel resists water and corrosion
  • Green 12V LED illuminates panel for clear status
  • Fits 30mm panel cutout with included nut and O-ring
  • SPDT contacts rated 250V AC/DC 5A for versatile wiring

Specifications

TypePushbutton
Amps5 Amps
Voltage12 Volts
MaterialMetal
BrandJacobsParts
ModelLTCH-B8-GRN
FeaturesHeavy Duty, Illuminated, Waterproof

Questions about this item

Will the green LED or the stainless-steel body need replacement first under normal use?

The LED is rated for 12V DC at 15mA and the body is IP67 stainless steel; the LED will reach end of life long before the switch housing corrodes.

What electrical limit will be reached first if the switch runs continuously at full load?

The contacts are rated 250V AC/DC at 5A, so the 5A current limit will be reached before the voltage rating becomes a concern.

How much heat does the switch generate when the LED stays on all day?

The LED draws only 15mA at 12V, producing negligible heat, and the stainless-steel body dissipates the small contact losses without noticeable temperature rise.
