Stainless steel 30mm latching push button with blue LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-B8-BLU 30mm Latching Push Button Disconnect 250V 5A IP67 Blue LED Stainless Steel

SKU CH-Z4YJ-F2Y88 MPN LTCH-B8-BLU

IP67-rated stainless-steel latching push button handles 250 V at 5 A with a 12 V blue LED

  • TypePushbutton
  • Amps5 Amps
  • Voltage250 Volts
  • MaterialMetal
  • FeaturesWaterproof
  • Latching action stays on until pressed again
  • IP67 rating withstands heavy rain and splashes
  • Stainless steel body resists corrosion in marine use
  • Blue LED indicates status at 12V 15mA

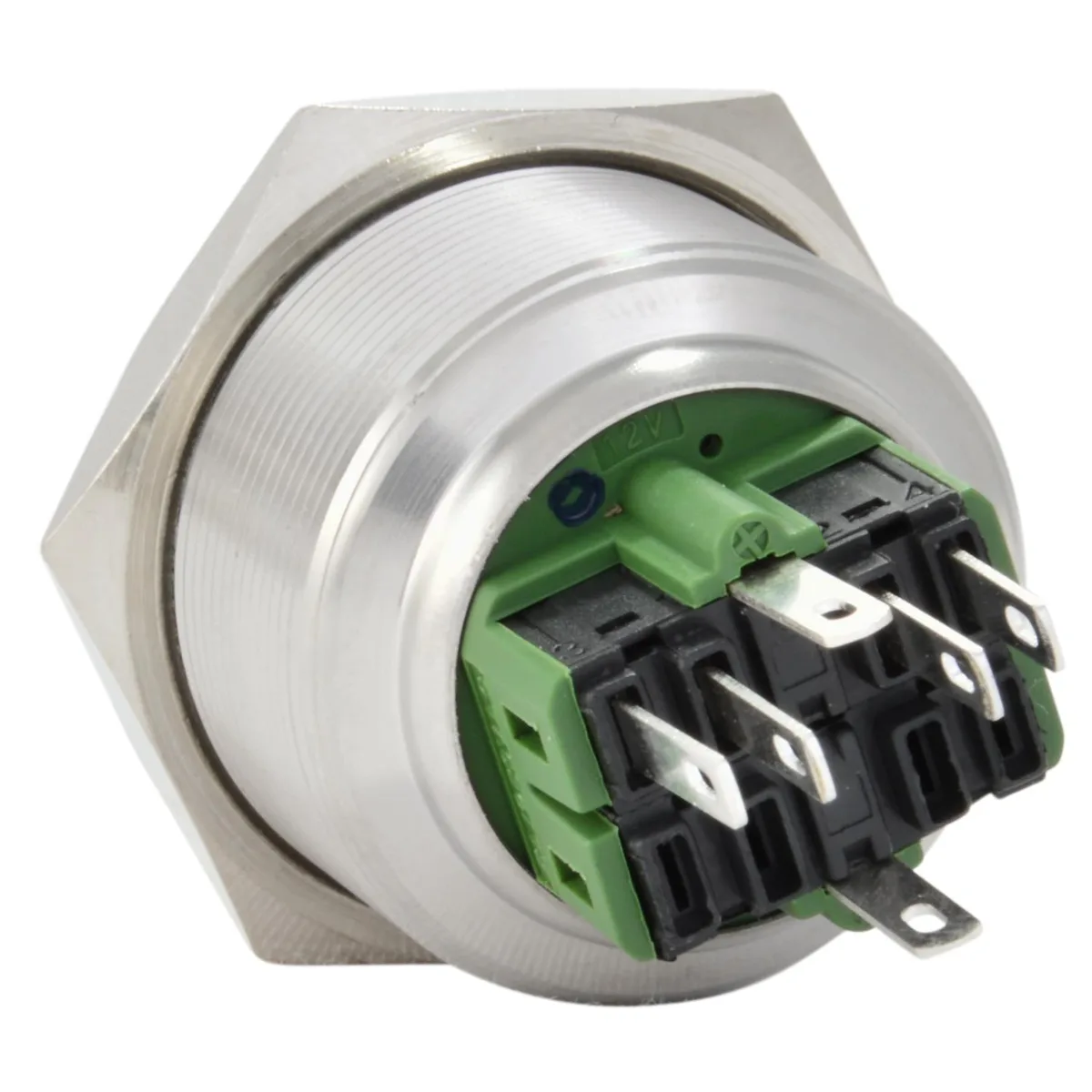

  • Fits 30mm panel cutout with included nut and O-ring

30mm IP67 Latching Push Button

The JacobsParts LTCH-B8-BLU is a 30mm stainless steel latching push button switch rated for 250V AC/DC at 5A. It features a blue LED indicator rated at 12V DC 15mA and provides IP67 waterproof protection. The switch uses SPDT contacts with 1NO1NC configuration and fits a 30mm panel cutout.

Suits panels needing a rugged maintained switch

This switch suits builders who need a maintained latching action that stays on until pressed again. The stainless steel body and IP67 rating fit marine, automotive and outdoor panels exposed to water and dust. Buyers who need a momentary action or a different contact arrangement should look elsewhere.

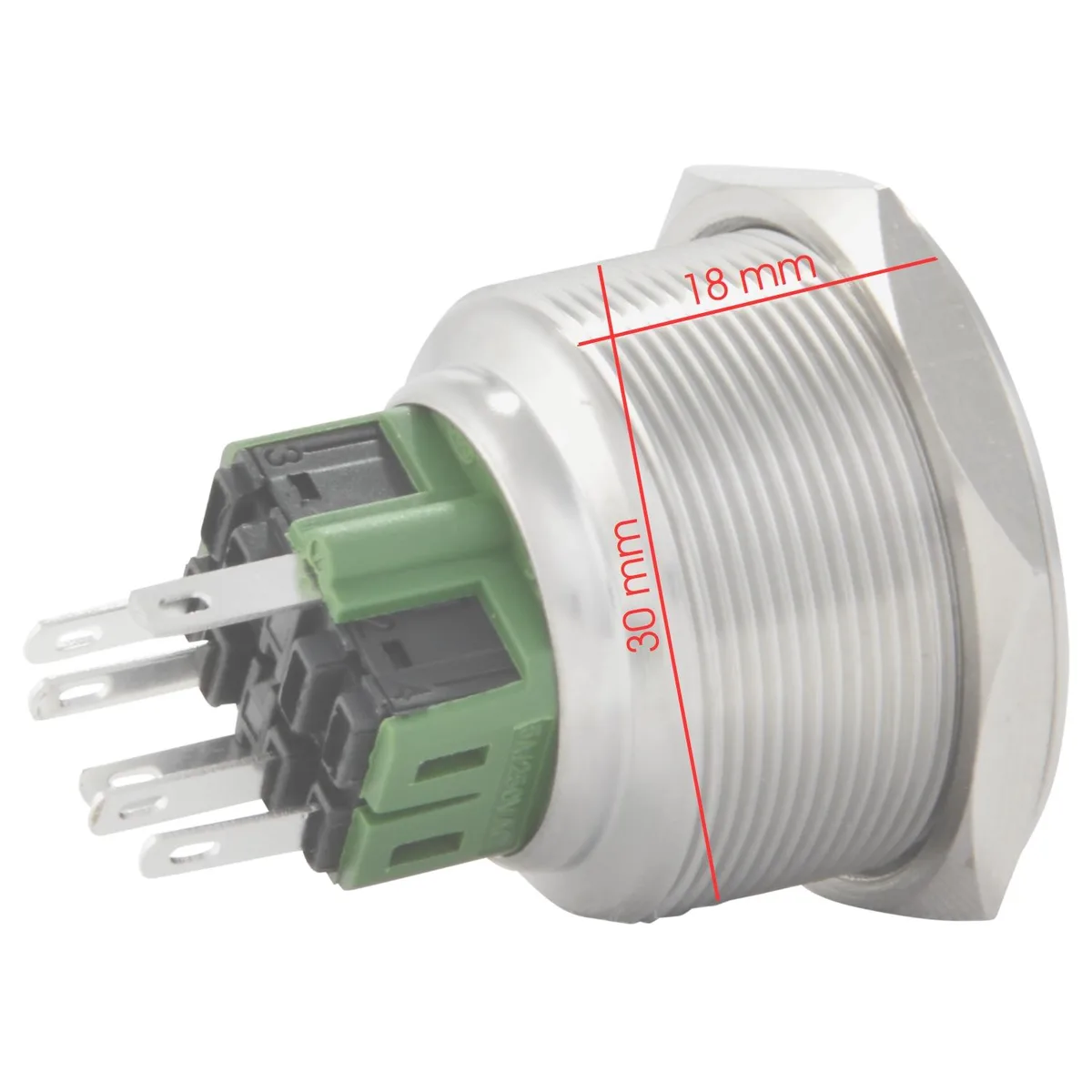

30mm panel cutout decides fit

The critical specification is the 30mm panel cutout diameter required for installation. The switch includes a metal securing nut and an optional rubber O-ring for additional sealing. Total depth behind the panel is 43mm including contacts, so verify internal clearance before purchase.

Highlights

  • Latching action stays on until pressed again
  • IP67 rating withstands heavy rain and splashes
  • Stainless steel body resists corrosion in marine use
  • Blue LED indicates status at 12V 15mA
  • Fits 30mm panel cutout with included nut and O-ring

Specifications

TypePushbutton
Amps5 Amps
Voltage250 Volts
MaterialMetal
BrandJacobsParts
ModelLTCH-B8-BLU
FeaturesWaterproof

Questions about this item

How do I choose between the latching and momentary versions of this 30 mm switch?

This model is latching only; press once for ON, press again for OFF, so no momentary version exists in the LTCH-B8-BLU line.

What does the 250 V 5 A rating mean when I wire it into a 12 V LED circuit?

The contacts are rated for 250 V AC/DC at 5 A, while the built-in blue LED runs on 12 V DC at 15 mA, so the switch easily handles the LED load.

What does the IP67 rating actually limit in daily use?

IP67 means the switch withstands immersion up to 1 m for 30 minutes and resists dust, making it suitable for exposed marine or automotive panels.
