Stainless steel 25mm latching push button with blue LED ring

JacobsParts Inc.

JacobsParts Inc. LTCH-B6-BLU 25mm Latching Push Button Disconnect Stainless Steel Blue LED IP67 250V 5A

SKU CH-2XYR-66CX8 MPN LTCH-B6-BLU

A 25mm stainless steel latching push button with blue LED, IP67 waterproof rating and 250V 5A switching for automotive and marine panels

  • TypePushbutton
  • Amps5 Amps
  • Voltage250 Volts
  • MaterialMetal
  • FeaturesWaterproof
  • Latching action stays on until pressed again
  • IP67 rating resists heavy rain and splashes
  • Stainless steel body prevents corrosion
  • Blue LED wires for constant or switched illumination
  • Rated 250V 5A for AC or DC circuits

Product purpose and typical users

The JacobsParts LTCH-B6-BLU is a 25mm latching pushbutton switch rated for 250V and 5A. It suits automotive, marine and electronics projects that need a maintained on/off control for auxiliary lighting or power circuits.

Build quality and mounting details

The switch body is stainless steel with an IP67 protection rating against water and dust ingress. Installation requires a 25mm panel cutout and 20mm thread depth; a metal securing nut and rubber O-ring are included for sealing.

Thermals noise and power draw

The LED indicator draws 15mA at 12V DC and can be wired independently of the switch contacts. The mechanical contacts carry up to 5A at 250V AC/DC within an operating range of -20°C to 55°C with no active cooling required.

Highlights

  • Latching action stays on until pressed again
  • IP67 rating resists heavy rain and splashes
  • Stainless steel body prevents corrosion
  • Blue LED wires for constant or switched illumination
  • Rated 250V 5A for AC or DC circuits

Specifications

TypePushbutton
Amps5 Amps
Voltage250 Volts
MaterialMetal
BrandJacobsParts
ModelLTCH-B6-BLU
FeaturesWaterproof

Questions about this item

What does the 250 V AC/DC 5 A rating cap in practice?

The switch is rated for a maximum of 250 volts AC or DC at 5 amps; do not exceed either value or the contacts may overheat.

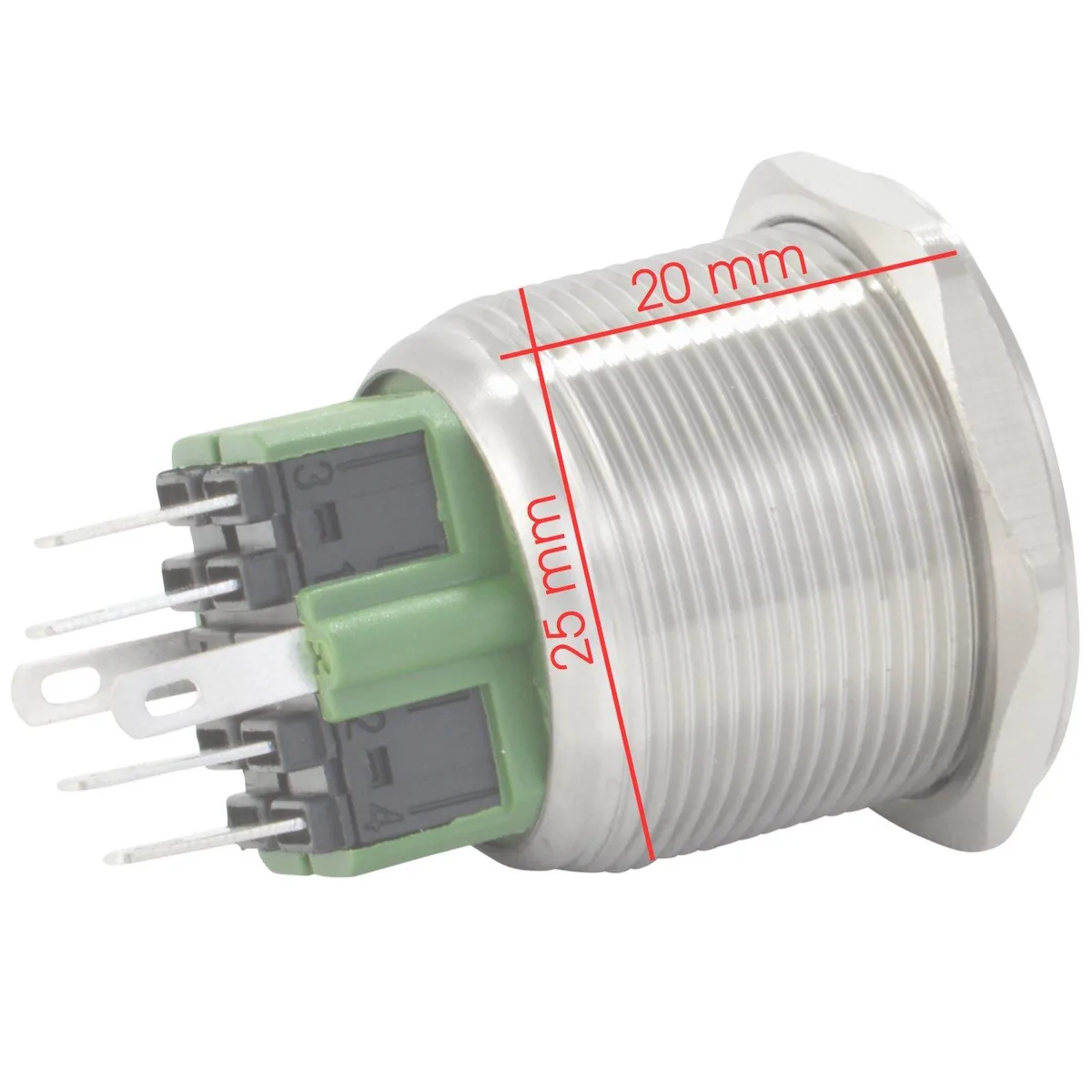

What panel cut-out and depth does the 25 mm stainless body need?

Drill a 25 mm (1 inch) hole; the threaded neck is 20 mm deep and the full assembly including contacts extends 43 mm behind the panel.

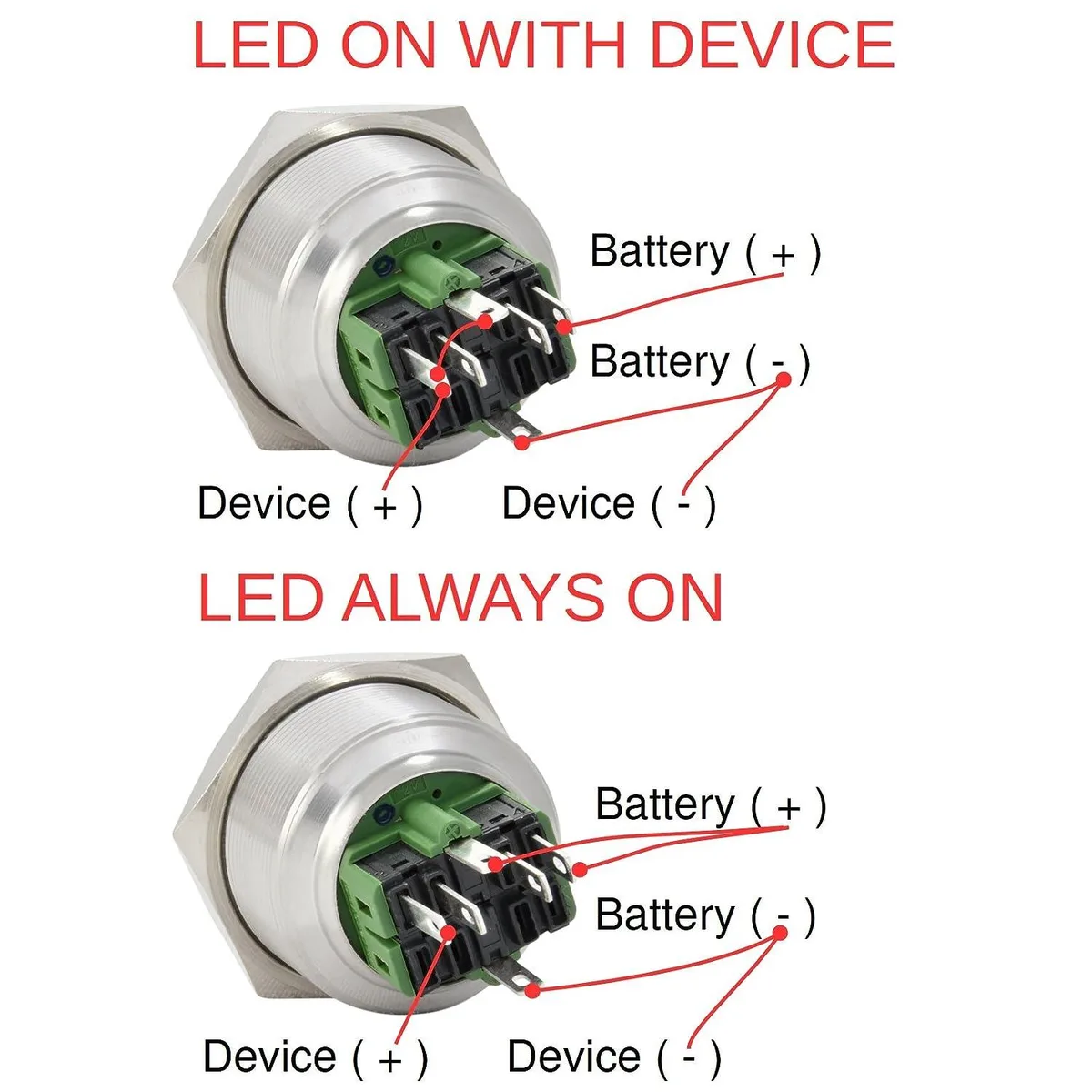

How do I wire the blue LED so it lights only when the switch is ON?

Connect the LED anode to the normally open contact and the cathode to the load side; the LED then receives 12 V DC only when the latching circuit closes.
