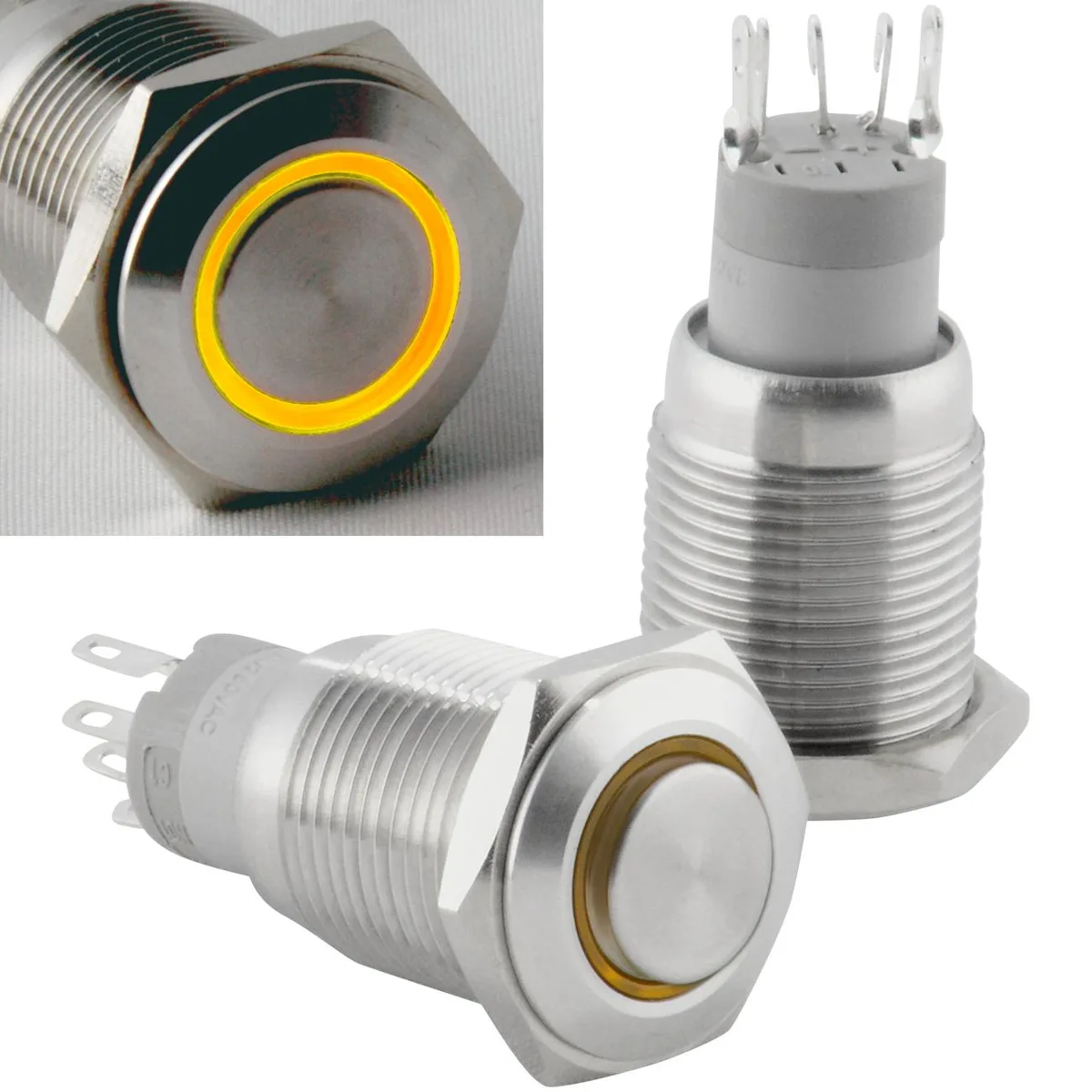

Stainless steel 16mm latching push button with yellow LED, IP67 waterproof, panel mount

JacobsParts Inc.

JacobsParts Inc. LTCH-B3-YLW 16mm Latching Push Button Disconnect Yellow LED IP67 Stainless Steel 250V 3A

SKU CH-KXV6-2R35N MPN LTCH-B3-YLW

16 mm stainless-steel latching push-button switch with yellow LED, IP67 rated for 250 V 3 A panel-mount use

  • TypePushbutton
  • Amps3 Amps
  • Voltage250 Volts
  • MaterialMetal
  • FeaturesWaterproof
  • Latching action keeps power on until pressed again
  • IP67 stainless steel withstands heavy rain and splashes
  • 16 mm panel cutout with included nut and O-ring
  • Separate 12 V yellow LED wires for always-on or switched illumination
  • 250 V 3 A SPDT contacts handle AC or DC loads

16mm Stainless Steel Latching Switch

This 16mm panel-mount push button provides a maintained ON-OFF action for circuits up to 250V AC/DC at 3A. Its stainless steel body carries an IP67 rating for water and dust resistance. A yellow LED indicates status and can be wired independently of the switch contacts. The SPDT contact block offers one normally open and one normally closed circuit.

Panel cutout and wiring check

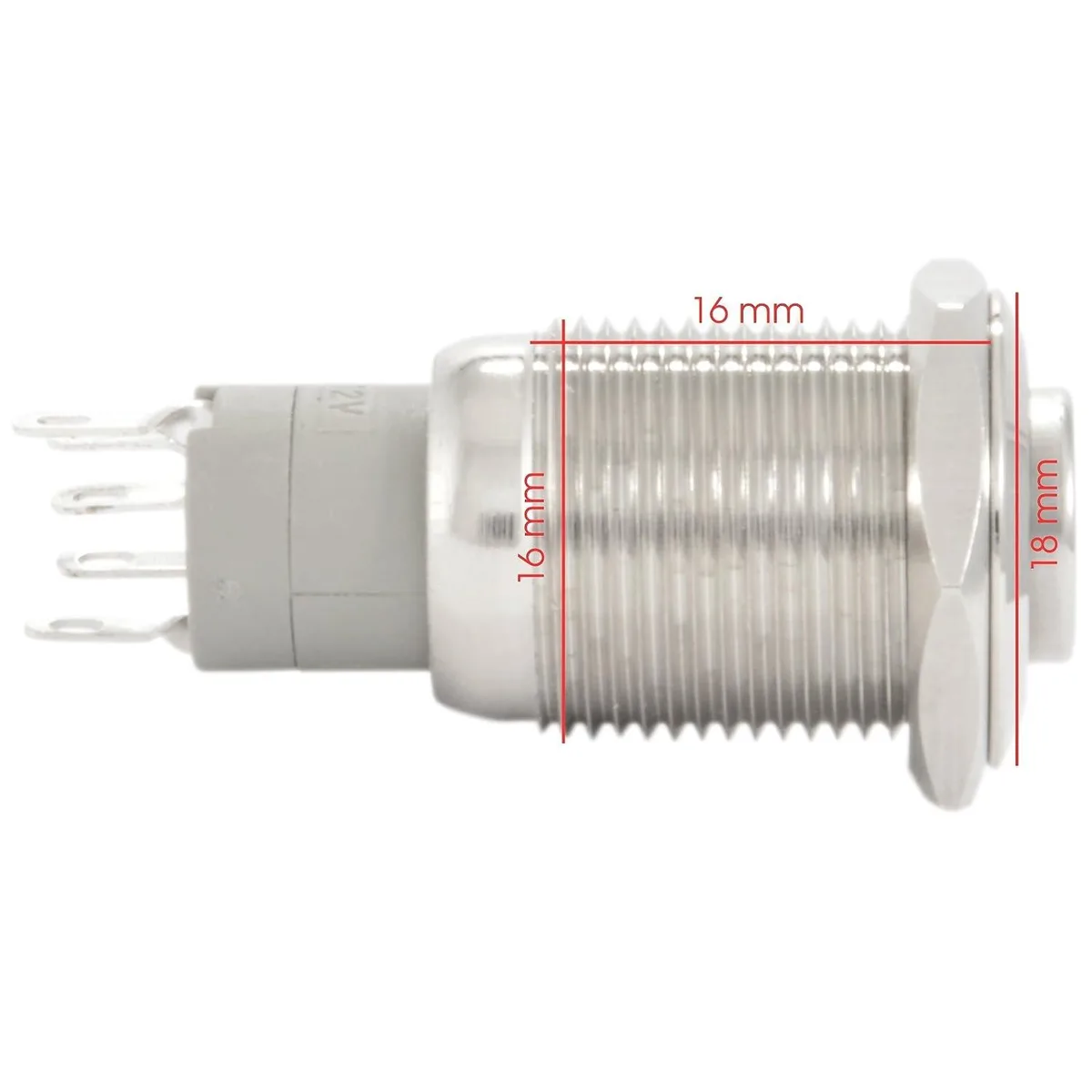

Verify that your panel can accommodate a 16mm (5/8") mounting hole and at least 36mm (1.5") of depth behind the faceplate for the switch body and screw terminals. The LED requires a 12V DC source limited to 15mA; plan a series resistor if your supply voltage differs. Ensure the SPDT switching logic matches the control scheme you need.

IP67 sealing and thermal notes

The IP67 enclosure protects the mechanism from heavy rain and temporary immersion when the supplied O-ring is fitted behind the 18mm faceplate. Stainless steel construction resists corrosion in marine or automotive environments. In normal operation the switch contacts run at low temperature, and the LED draws only 15mA, so no active cooling or special ventilation is required.

Highlights

  • Latching action keeps power on until pressed again
  • IP67 stainless steel withstands heavy rain and splashes
  • 16 mm panel cutout with included nut and O-ring
  • Separate 12 V yellow LED wires for always-on or switched illumination
  • 250 V 3 A SPDT contacts handle AC or DC loads

Specifications

TypePushbutton
Amps3 Amps
Voltage250 Volts
MaterialMetal
BrandJacobsParts
ModelLTCH-B3-YLW
FeaturesWaterproof

Questions about this item

What comes in the package and is anything else needed for installation?

The package includes the switch, a metal mounting nut, and a rubber O-ring for optional extra sealing. A 5/8 inch drill bit is required to cut the panel cutout.

Which LED wiring option suits a 12 V system best?

The yellow LED is rated for 12 V DC at 15 mA and can be wired to stay on constantly or only when the switch is latched on.

What does the 250 V 3 A rating mean for a low-voltage DC project?

The contacts are rated up to 250 V AC or DC at 3 A, so they will comfortably handle typical 12 V DC loads within that current limit.
