Stainless steel momentary push button switch, 22mm panel cutout, IP67 rated

JacobsParts Inc.

JacobsParts Inc. LTCH-A5 Momentary Push Button Disconnect 22mm IP67 250V 5A

SKU CH-T4RS-BFRK2 MPN LTCH-A5

Momentary push-button switch rated 250 V 5 A with IP67 stainless-steel body for 22 mm panel cut-out

  • TypePush Button
  • Amps5 Amps
  • Voltage250 Volts
  • MaterialMetal
  • FeaturesWaterproof
  • Momentary action gives temporary power only while pressed
  • IP67 rating withstands heavy rain and splashes
  • Stainless steel construction resists rust and corrosion
  • 22 mm panel cutout fits standard 7/8 inch holes
  • Rated 250 V AC/DC at 5 A for automotive and marine use

Momentary push-button switch

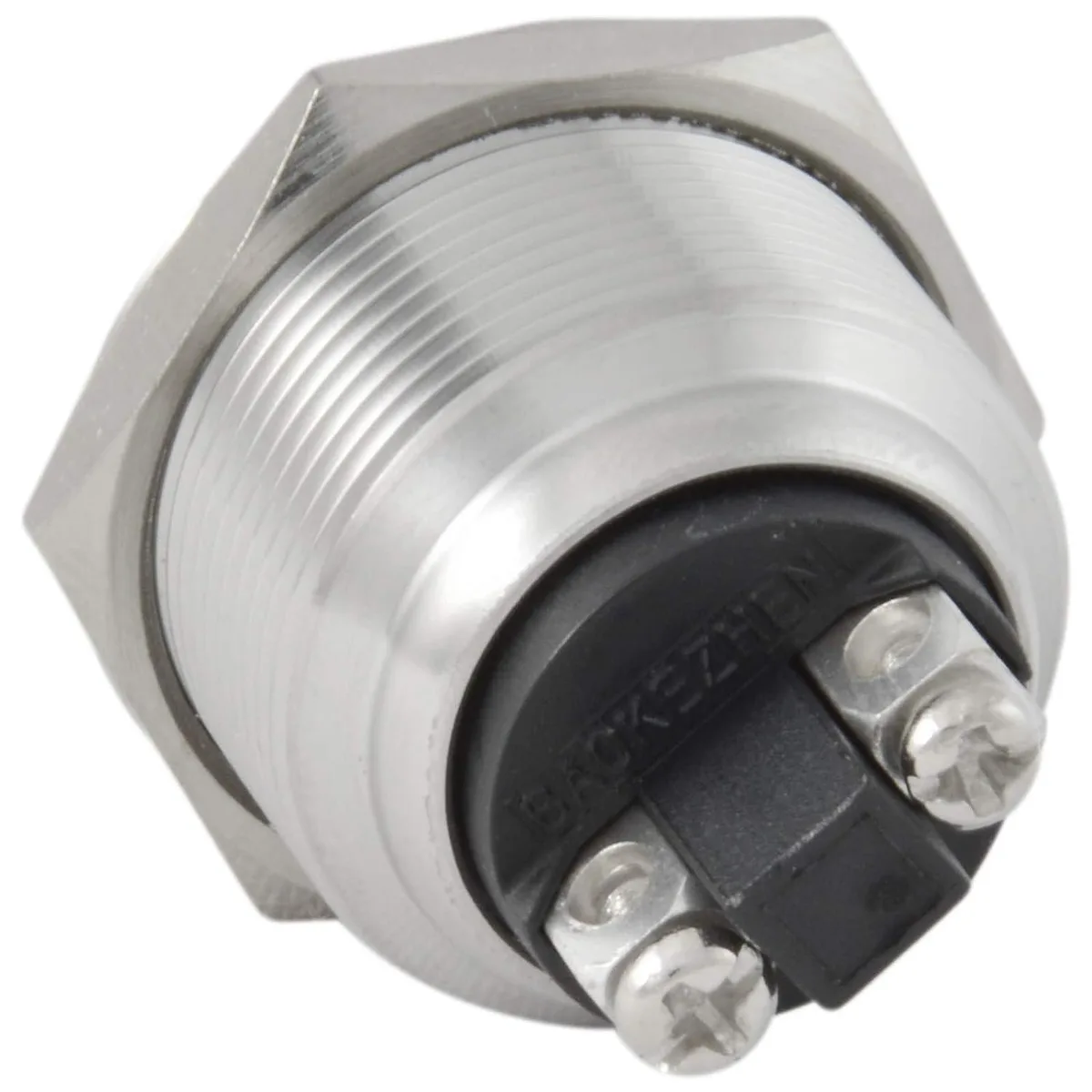

This momentary push-button switch activates a circuit only while pressed and returns to off when released. It is built from stainless steel with an IP67 waterproof rating for use in damp or outdoor environments. The switch fits a 22 mm panel cutout and includes a metal mounting nut and rubber O-ring for sealing.

Suits momentary control needs; not for latching

This switch suits builders who need temporary activation for starters, horns, computer power buttons or similar momentary functions. It does not suit applications that require the circuit to stay on after the button is released, such as maintained power or lighting circuits that need a latching action.

250 V 5 A SPST normally-open circuit

The decisive specification is the 250 V AC/DC 5 A single-pole single-throw normally-open contact arrangement. This rating defines the maximum voltage and current the switch can safely interrupt, and the normally-open circuit type determines that the connection is made only while the button is held down.

Highlights

  • Momentary action gives temporary power only while pressed
  • IP67 rating withstands heavy rain and splashes
  • Stainless steel construction resists rust and corrosion
  • 22 mm panel cutout fits standard 7/8 inch holes
  • Rated 250 V AC/DC at 5 A for automotive and marine use

Specifications

TypePush Button
Amps5 Amps
Voltage250 Volts
MaterialMetal
BrandJacobsParts
ModelLTCH-A5
FeaturesWaterproof

Questions about this item

What comes in the package and what do I need to supply?

The package includes the stainless steel switch, a metal securing nut and a rubber O-ring for optional extra sealing; you only need to drill a 22 mm panel cutout and provide wiring.

How do I decide between the available configurations of this switch?

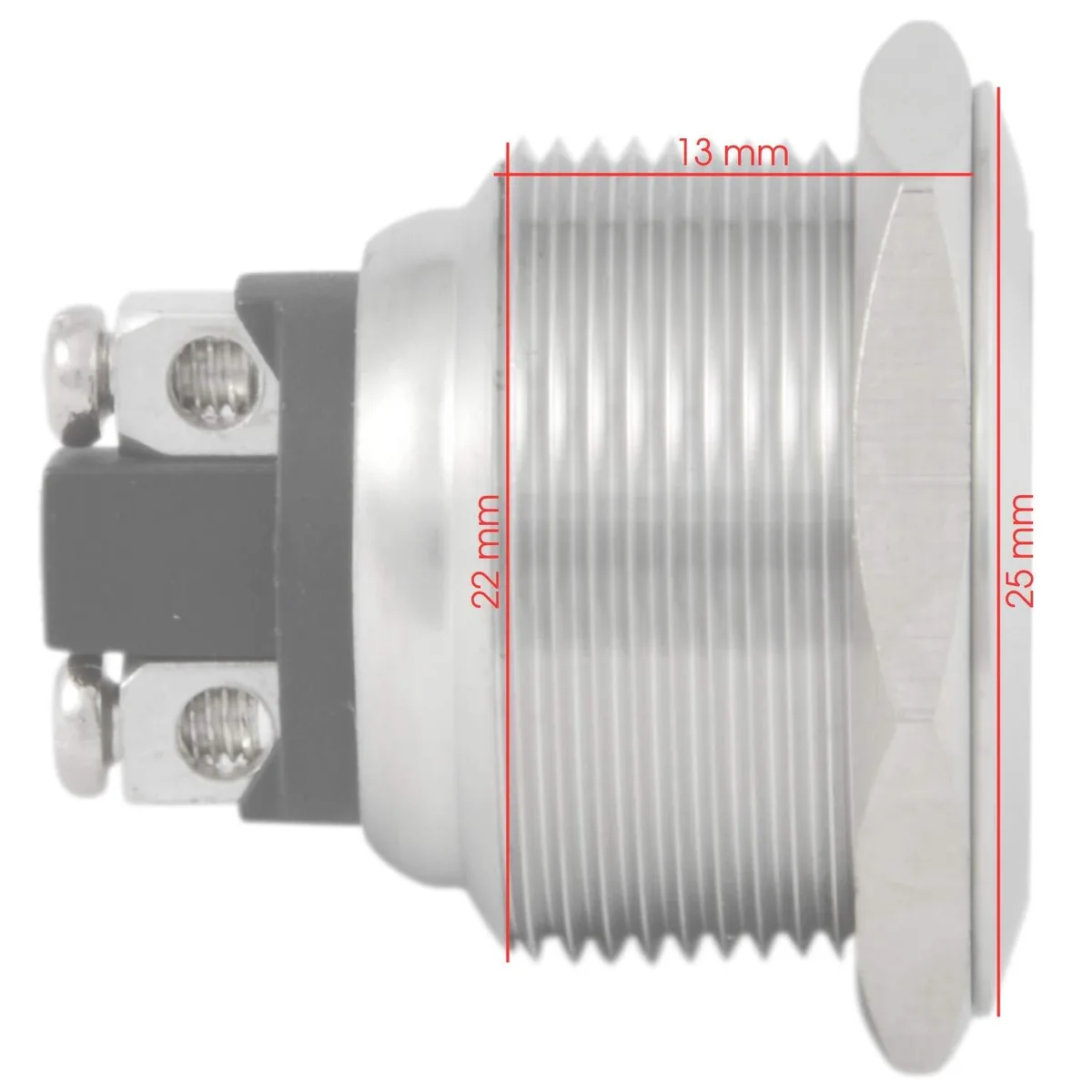

Only one configuration is offered — a 22 mm cutout, 250 V AC/DC 5 A momentary SPST switch with IP67 rating and 13 mm thread depth.

What does the 250 V 5 A rating mean when the switch is installed in my equipment?

The switch can carry up to 5 A at up to 250 V AC or DC; it is momentary so the circuit closes only while the button is held, and it operates from -20 °C to 55 °C.
