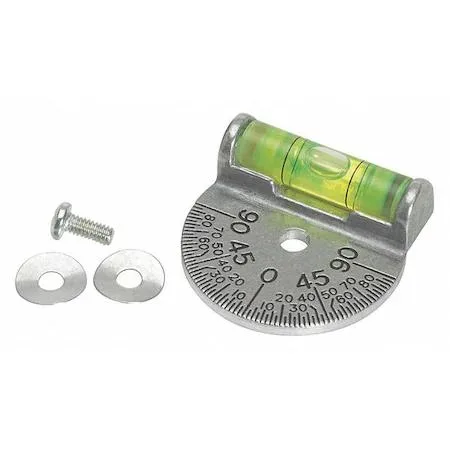

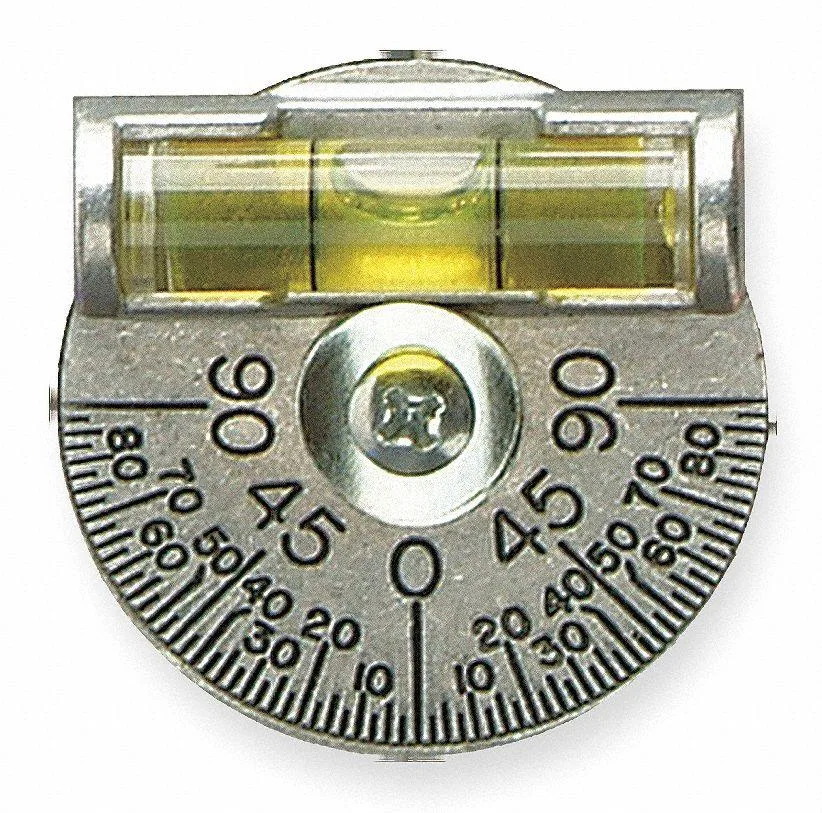

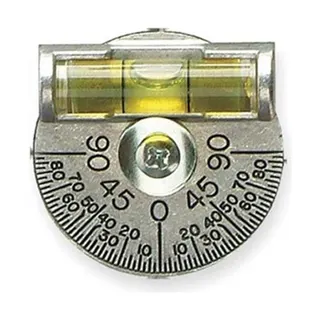

Aluminium dial set level with 180-degree adjustable scale

Jackson Safety

Jackson Safety 14797 Dial Set Level Alum 180Degree Adjust DSL Use CurvOMark welding

SKU CH-455Y-KCBSH

Aluminium dial set level with 180-degree adjustment, compatible with multiple Jackson Safety centring-head models

  • TypeWelding Parts & Supplies
  • 180-degree adjustment enables precise angle setting
  • Aluminium construction provides lightweight durability
  • Compatible with six Jackson Safety models for easy replacement
  • Dial set level ensures accurate centring head alignment
  • Ready-to-use CurvOMark welding tool for immediate deployment

Compatible Welding Dial Set Level

The Jackson Safety 14797 dial set level is a replacement component for welding centering heads. It fits manufacturer model numbers 14773, 14775, 14776, 14777, 14786 and 14796. Welders maintaining these specific heads use this part to restore accurate alignment. It is not for operators whose equipment uses a different centering head design.

180-Degree Adjustment Range

The dial provides a 180Degree adjustment span for setting the level on compatible centering heads. This mechanical range defines the limits of angular correction available during setup. Builders needing a finer or wider rotational sweep than 180 degrees cannot achieve it with this dial. No electronic calibration or digital readout is included.

Aluminium Construction

The housing is made from aluminium, giving a lightweight yet rigid body for the dial mechanism. This material choice supports durability in a welding environment while keeping the assembly light. Buyers who require a steel or composite body for specific chemical resistance or weight requirements will not find that here.

Highlights

  • 180-degree adjustment enables precise angle setting
  • Aluminium construction provides lightweight durability
  • Compatible with six Jackson Safety models for easy replacement
  • Dial set level ensures accurate centring head alignment
  • Ready-to-use CurvOMark welding tool for immediate deployment

Specifications

TypeWelding Parts & Supplies
BrandJACKSON SAFETY

Questions about this item

Which compatible model numbers does the 14797 dial set level fit?

The 14797 dial set level is compatible with manufacturer model numbers 14773, 14775, 14776, 14777, 14786 and 14796, covering the listed centering head assemblies.

How does the 180-degree adjustment help when the level is mounted on a workpiece?

The 180-degree adjustment lets you rotate the dial to read level from either side of the pipe or joint without removing the tool, keeping the bubble visible in tight fit-up positions.

What does the CurvOMark centering head interface limit in practical use?

The CurvOMark centering head interface limits use to Jackson Safety centering heads that accept the 14797 dial set level, so it cannot be fitted to other brands' alignment tools.
