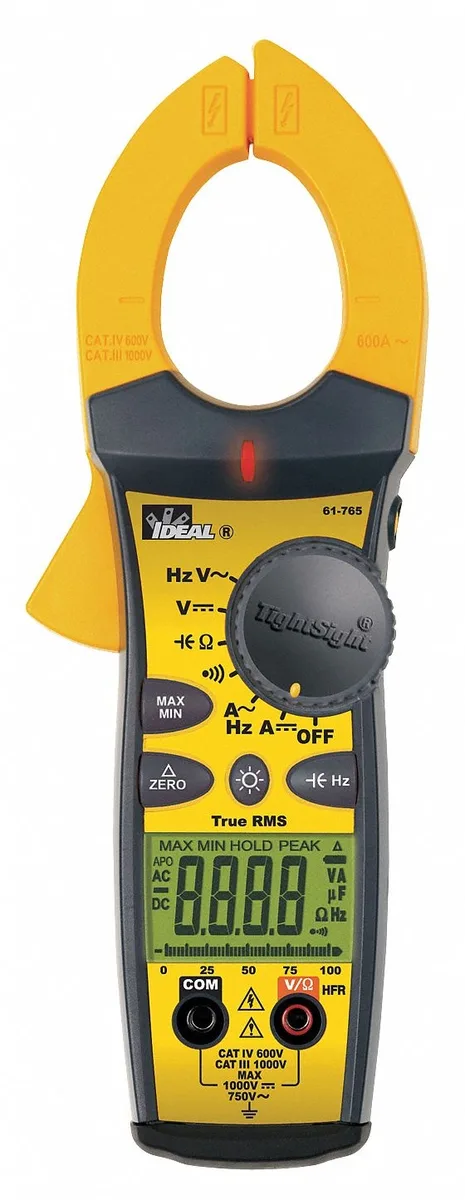

Yellow and black digital clamp meter with hinged jaw and LCD display

Ideal

Ideal 61-765GA Digital Clamp Meter 660A hand tool

SKU CH-ZR4T-J6F2R MPN 61-765GA

Measures AC and DC current up to 660 A with TRMS accuracy and data logging

  • TypeClamps
  • True-RMS AC response ensures accurate non-sinusoidal readings
  • Measures up to 660 A AC and DC current for heavy circuits
  • CAT III 1000V and CAT IV 600V safety ratings protect the user
  • Data logging captures measurement trends over time
  • Tests AC/DC voltage, resistance, capacitance and frequency in one tool

Digital clamp meter for electrical testing

The Ideal 61-765GA is a digital clamp meter designed for measuring AC and DC current up to 660 A without breaking the circuit. It also measures AC voltage to 750 V and DC voltage to 999.9 V, plus resistance, capacitance and frequency. TRMS AC response ensures accurate readings on non-sinusoidal waveforms. The meter carries CAT III 1000 V and CAT IV 600 V safety ratings and includes data logging and audible continuity.

Electricians and technicians needing true-RMS

This suit professionals who require a safety-rated clamp meter for high-energy three-phase or service-entrance work where CAT IV 600 V protection is specified. The 660 A clamp jaw covers typical branch-circuit and feeder currents. Buyers who need leakage-current measurement or an IP-rated enclosure for wet environments should look at other instruments, as this model offers neither feature.

660 A AC/DC current clamp with TRMS and CAT IV 600 V

The single specification that decides suitability is the 660 A maximum AC and DC current rating combined with true-RMS AC response and CAT IV 600 V safety certification. If the application demands higher current capability, leakage-current testing or environmental sealing, this meter will not meet the requirement.

Highlights

  • True-RMS AC response ensures accurate non-sinusoidal readings
  • Measures up to 660 A AC and DC current for heavy circuits
  • CAT III 1000V and CAT IV 600V safety ratings protect the user
  • Data logging captures measurement trends over time
  • Tests AC/DC voltage, resistance, capacitance and frequency in one tool

Specifications

BrandIdeal
Model61-765GA
TypeClamps

Questions about this item

What is the maximum AC current the Ideal 61-765GA can measure continuously?

The clamp meter measures up to 660 A AC with True RMS calculation for accurate readings on non-linear loads.

How much heat or noise does the Ideal 61-765GA produce during extended use?

As a passive hand tool it generates no fan noise and negligible heat; only the jaw area warms slightly at high current.

Which test leads must I already own to use the voltage and capacitance functions?

Standard 4 mm banana-plug leads rated for CAT III 1000 V or CAT IV 600 V are required for those measurements.
