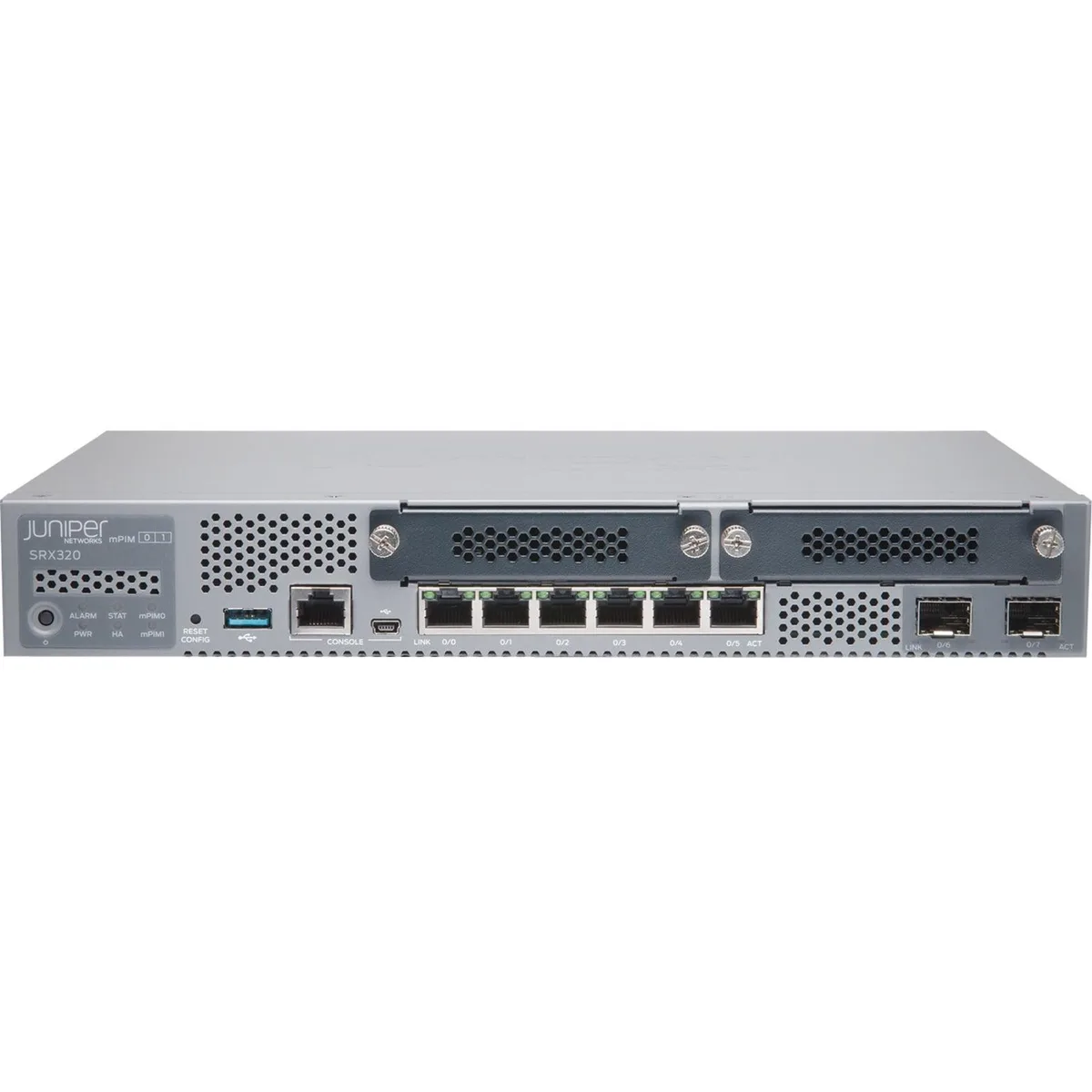

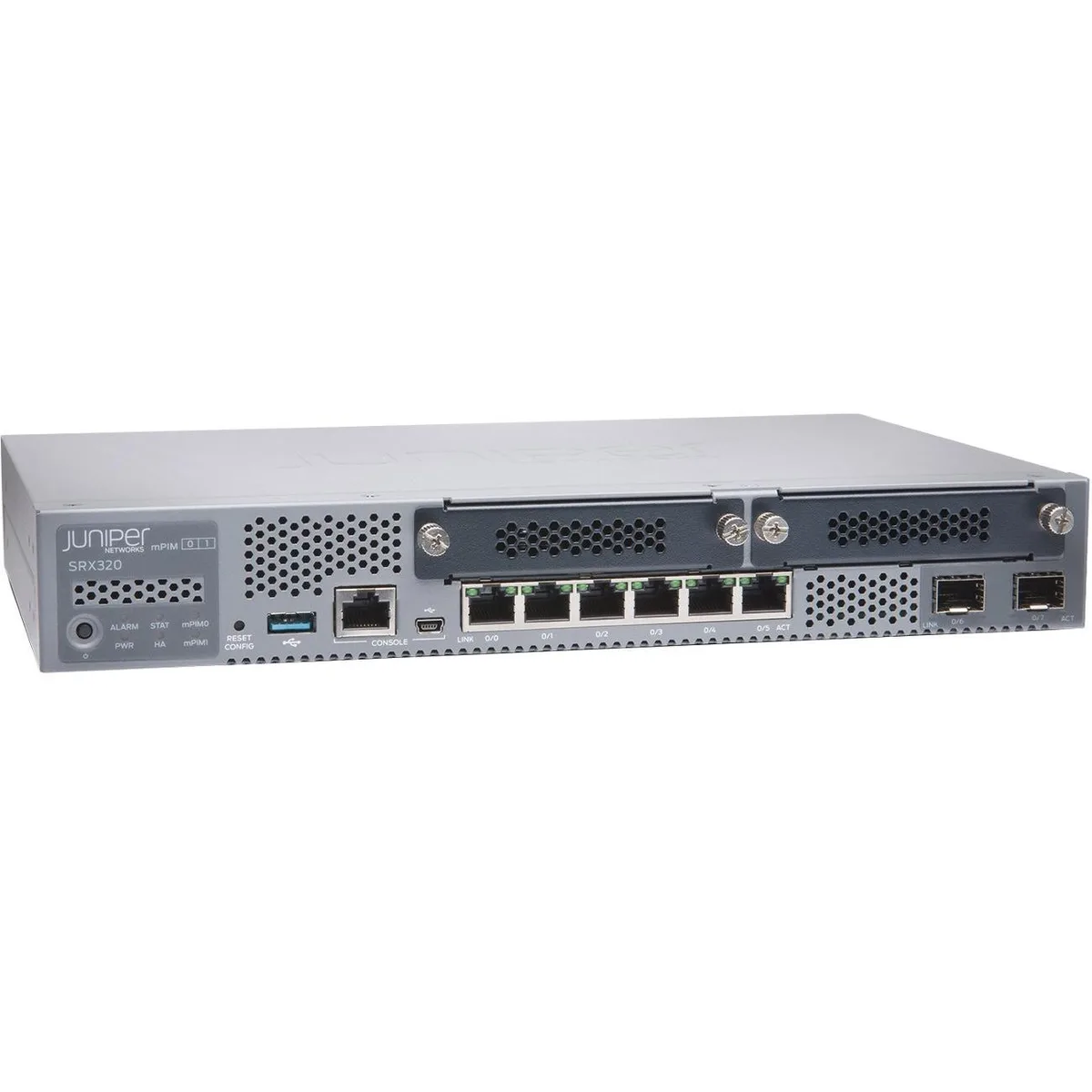

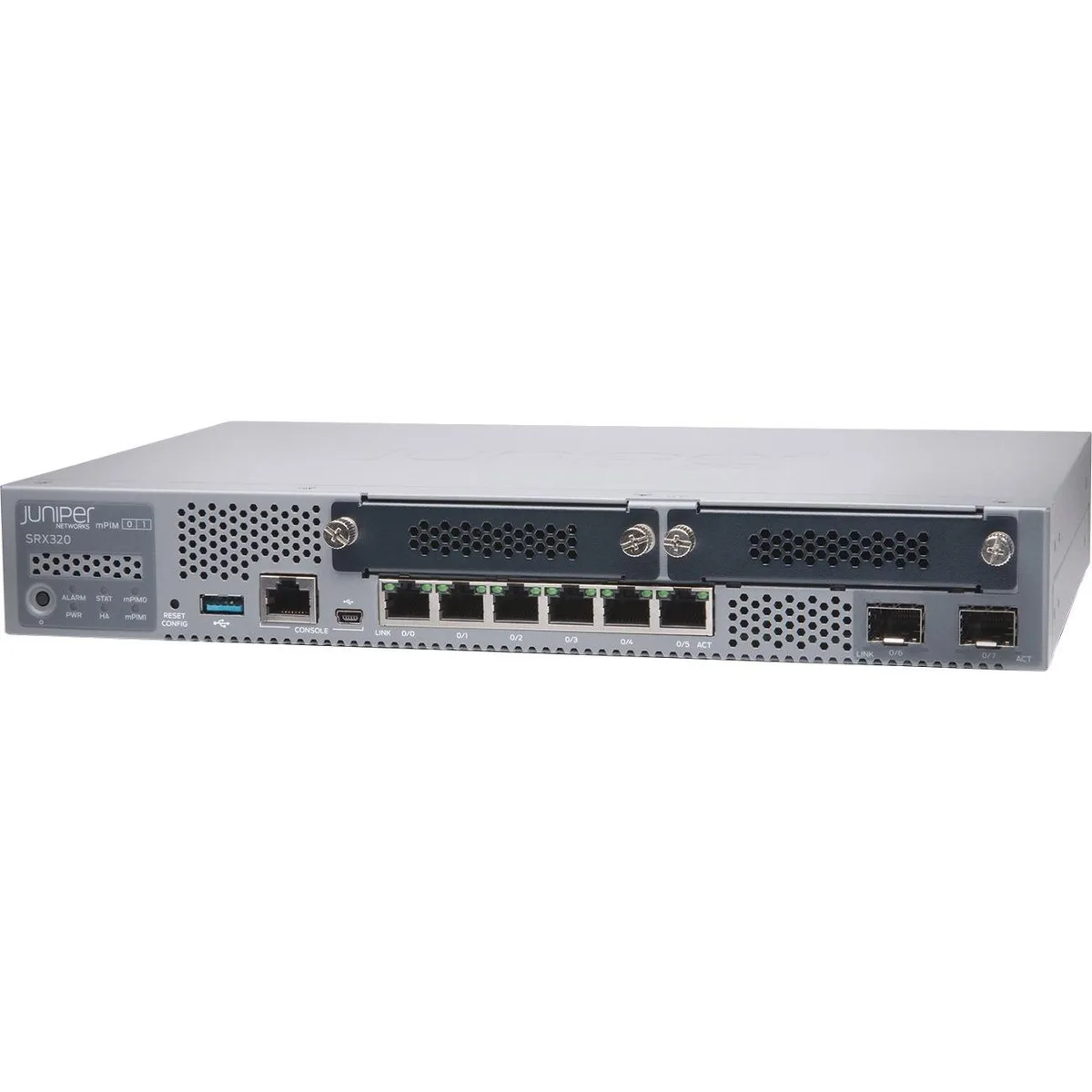

Small silver desktop firewall appliance with front ports and vents

HPE Juniper Networking

HPE Juniper Networking SRX320-SYS-JB firewall appliance

SKU CH-1X97-MTP05 MPN SRX320-SYS-JB

Desktop firewall appliance delivering up to 1.9 Gbps firewall throughput and 336 Mbps IPSec VPN with eight 1 GbE ports, 4 GB RAM and 8 GB storage in a compact unit

  • Form FactorDesktop
  • ProtocolsROUTING PROTOCOLS IPv4, IPv6, ISO, Connectionless Network Se
  • VPNTunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, Auto
  • Power InputPower Supply: AC (external)
  • FeaturesPERFORMANCE AND SCALE Routing with packet mode (64 B packet
  • Dimensions11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm)
  • Consolidated security, routing, switching and WAN in a compact desktop form factor
  • Up to 1.9 Gbps firewall throughput for high-speed threat inspection
  • 336 Mbps IPSec VPN performance for secure site-to-site connectivity
  • Eight onboard 1 GbE ports provide flexible LAN and WAN options
  • 4 GB RAM and 8 GB storage support advanced services and logging

Desktop firewall for small branches

The HPE Juniper Networking SRX320-SYS-JB is a desktop firewall appliance that consolidates security, routing, switching and WAN connectivity for small branch or retail offices. It runs Junos Software Base and provides firewall, NAT, IPSec VPN, routing, MPLS and switching functions in a single unit. The device includes eight onboard 1 GbE ports, 4 GB of system memory and 8 GB of storage. Rack-mount hardware is not included.

Sustained throughput figures

Under packet-mode routing the appliance delivers 300 Kpps with 64 byte packets, 800 Mbps with IMIX traffic and 1,500 Mbps with 1,518 byte packets. Stateful firewall capacity reaches up to 1.9 Gbps while IPSec VPN throughput peaks at 336 Mbps. These numbers reflect continuous load performance rather than short burst measurements. The external AC power supply supports ongoing operation.

Eight 1 GbE ports total

The platform provides exactly eight 1 GbE interfaces for LAN, WAN and DMZ connectivity, with no additional expansion slots listed. Buyers needing higher port density, faster uplink speeds or redundant power supplies will need a different model. The compact desktop form factor measures 11.81 x 1.73 x 7.52 inches and weighs 3.28 pounds.

Highlights

  • Consolidated security, routing, switching and WAN in a compact desktop form factor
  • Up to 1.9 Gbps firewall throughput for high-speed threat inspection
  • 336 Mbps IPSec VPN performance for secure site-to-site connectivity
  • Eight onboard 1 GbE ports provide flexible LAN and WAN options
  • 4 GB RAM and 8 GB storage support advanced services and logging

Specifications

BrandJuniper Networks
SeriesSRX3000
ModelSRX320
Part NumberSRX320-SYS-JB
Form FactorDesktop
ProtocolsROUTING PROTOCOLS
IPv4, IPv6, ISO, Connectionless Network Service (CLNS)
Static routes
RIP v1/v2
OSPF/OSPF v3
BGP with Route Reflector
IS-IS
Multicast: Internet Group Management Protocol (IGMP) v1/v2, Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM), Session Description Protocol (SDP), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Source Discovery Protocol (MSDP), Reverse Path Forwarding (RPF)
Encapsulation: VLAN, Point-to-Point Protocol (PPP), Frame Relay, High-Level Data Link Control (HDLC), serial, Multilink Poin
VPNTunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/ IPv6/ Dual Stack)
Juniper Secure Connect: Remote access / SSL VPN
Configuration payload: Yes
IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB
IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384
Authentication: Pre-shared key and public key infrastructure (PKI) (X.509)
IPSec (Internet Protocol Security): Authentication Header (AH) / Encapsulating Security Payload (ESP) protocol
IPSec Authentication Algorithms: hmac-md5, hmac-sha-196, hmac-sha-256
IPSec
Power InputPower Supply: AC (external)
FeaturesPERFORMANCE AND SCALE
Routing with packet mode (64 B packet size) in Kpps: 300
Routing with packet mode (IMIX packet size) in Mbps: 800
Routing with packet mode (1,518 B packet size in Mbps: 1,500
Stateful firewall (64 B packet size) in Kpps: 200
Stateful firewall (IMIX packet size) in Mbps: 600
Stateful firewall (1,518 B packet size) in Mbps: 1,900
IPSec VPN (IMIX packet size) in Mbps: 116
IPSec VPN (1,400 B packet size) in Mbps: 336
Application visibility and control in Mbps: 500
Recommended IPS in Mbps: 200
Next-generation firewall in Mbps: 226
Secure Web Access firewall in Mbps:
Dimensions11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm)
Weight3.28 lb (1.51 kg)
Shipping weight1.36 kg
Package size406 × 356 × 127 mm
