10L glass short-path distillation kit with dual heads, heating mantle, and two receivers

HNZXIB

HNZXIB SPDS-10L 10L Short-Path Distillation Kit 110V

SKU CH-C513-8DNTB MPN SPDS-10L

A 10 L short-path distillation kit with dual heads, vacuum-jacketed adapter, magnetic-stirring heating mantle and GG17 borosilicate glass for extraction, purification and crystallisation

  • TypeShort-Path Distillation
  • Capacity10L
  • Voltage110V
  • Dual-headed design doubles distillation output for higher throughput
  • GG17 high borosilicate glass resists thermal shock and chemical attack
  • Vacuum-jacketed adapter with four Vigreux stages improves separation efficiency
  • 1500 W heating mantle with 80 W magnetic stirring ensures rapid, uniform heating
  • Achieves 0.098 Mpa vacuum depth for low-temperature distillation

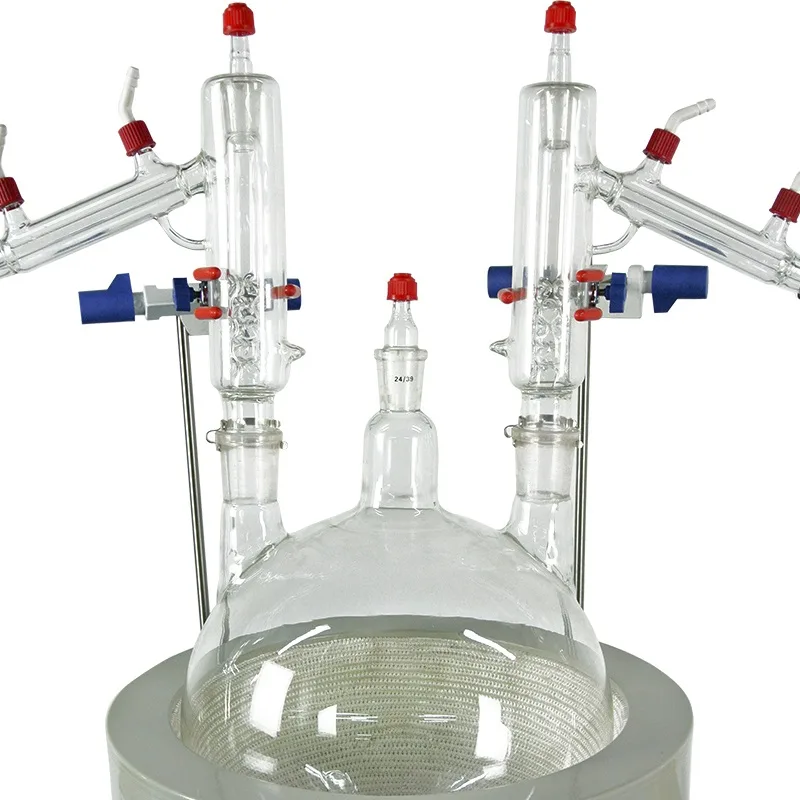

10L Dual-Head Distillation Kit

The HNZXIB SPDS-10L is a 10-litre short-path distillation system built for laboratory enrichment, crystallisation, drying and solvent recycling. It serves university research, bio-pharmaceutical work and petrochemical processing where dual-headed output doubles throughput. The kit includes two receivers and a vacuum-jacketed adapter with four Vigreux stages. All glassware is GG17 high borosilicate for chemical stability and durability.

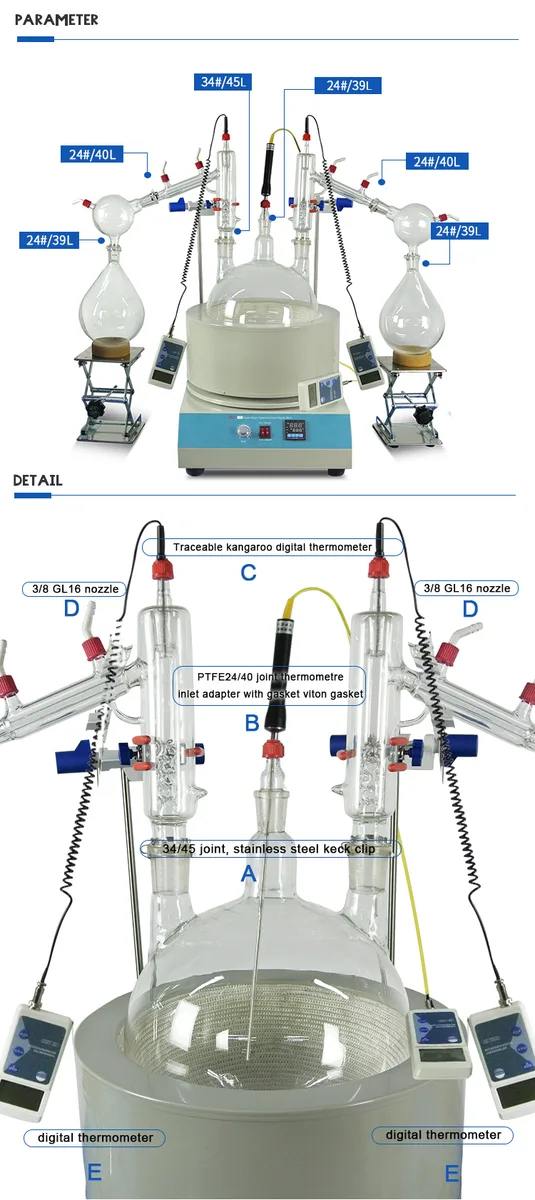

Glassware, Mantle and Vacuum Requirements

The apparatus centres on a 10L heating mantle that integrates magnetic stirring and digital temperature control. It requires a 110V or 220V supply to deliver 1500W heating power and 80W stirring power. A vacuum source capable of reaching 0.098 MPa is needed to operate the short path. No cold trap is included, so users must provide one if their process demands vapour capture before the pump.

Thermals, Noise and Power Draw

The mantle uses alkali-free glass-fibre insulation around a sealed resistance wire, giving a large heating area with fast warm-up. On first heat the liner may emit white smoke and turn brown as production oils burn off; this is normal. In routine operation the 1500W heater and 80W stirrer run without open flame. The magnetic stirrer and vacuum pump are the main audible sources; the mantle itself runs silently.

Highlights

  • Dual-headed design doubles distillation output for higher throughput
  • GG17 high borosilicate glass resists thermal shock and chemical attack
  • Vacuum-jacketed adapter with four Vigreux stages improves separation efficiency
  • 1500 W heating mantle with 80 W magnetic stirring ensures rapid, uniform heating
  • Achieves 0.098 Mpa vacuum depth for low-temperature distillation

Specifications

TypeShort-Path Distillation
Capacity10L
Voltage110V

Questions about this item

What vacuum level does the kit reach during continuous distillation?

The system pulls down to 0.098 MPa, which is the practical limit for sustained short-path runs.

How much heat and noise does the 1500 W mantle produce in all-day operation?

The 1500 W heating mantle runs on 110 V with an 80 W magnetic stirrer; it generates noticeable warmth and a low motor hum during extended use.

Which chiller capacity must I already have to condense the dual-head vapour flow?

You need a recirculating chiller rated for at least 1500 W heat removal to handle the dual distillation heads.
