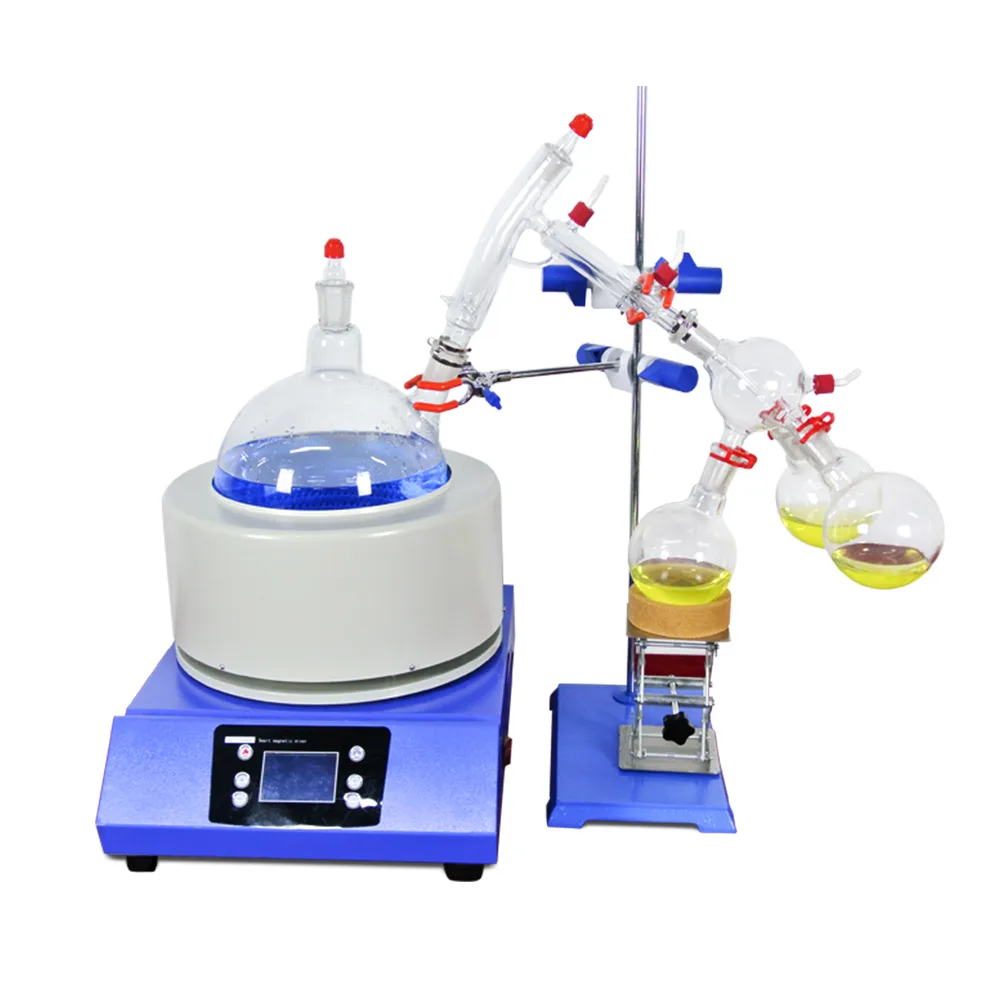

Complete 5L short path distillation kit with glassware, heating mantle, vacuum pump and chiller on benchtop

HNZXIB

HNZXIB SPD-5L One-stop 5L Short Path Distillation Kit 110V

SKU CH-6GGB-WZFGE MPN SPD-5L

A complete 5 L short-path distillation kit with a 40 W magnetic stirring mantle, 900 W heating, 60 L/min vacuum pump and a 5 L chiller reaching −15 °C with ±0.2 °C precision

  • TypeShort-Path Distillation
  • Capacity5L
  • Voltage110V
  • 5 L distillation capacity for larger batch processing
  • Borosilicate GG17 glass construction resists thermal shock and chemicals
  • Vacuum-jacketed adapter with four Vigreux stages improves separation efficiency
  • Detachable 10 mm hose barbs reduce connection stress during operation
  • Included chiller reaches -15 °C with ±0.2 °C stability for precise condensation control

5L Short-Path Distillation Kit

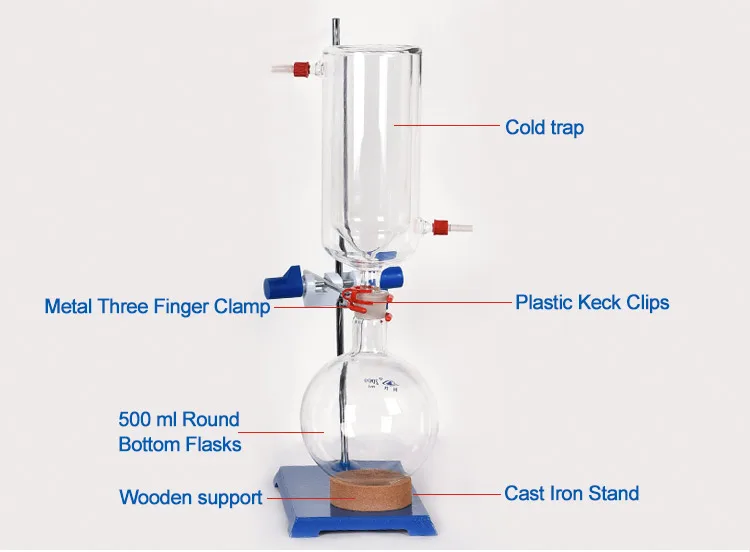

This 5L short-path distillation kit is built for laboratory technicians who need a complete, ready-to-run system for thermal separation work. It bundles a distillation head, cold trap, stirring heating mantle, desktop vacuum pump and refrigerated circulator so the workflow stays in one integrated package.

Thermal Load and Vacuum Performance

The heating mantle delivers 900W of heating power alongside a 40W stirring motor, while the chiller provides a no-load minimum of -15°C and a refrigerant capacity range of 1328-319W with ±0.2°C precision. The double-tap vacuum pump reaches 0.098 MPa vacuum degree at 60 L/min flow and 8 m lift, with each tap rated at 10 L/min.

Upgrade Path and Limitations

This kit replaces a piecemeal assembly of glassware, pump and chiller for users moving to a 5L capacity at 110V/60Hz. It is not suited for operators who require larger batch volumes, 220V supply without a separate order, or a chiller capable of sub -15°C temperatures under load.

Highlights

  • 5 L distillation capacity for larger batch processing
  • Borosilicate GG17 glass construction resists thermal shock and chemicals
  • Vacuum-jacketed adapter with four Vigreux stages improves separation efficiency
  • Detachable 10 mm hose barbs reduce connection stress during operation
  • Included chiller reaches -15 °C with ±0.2 °C stability for precise condensation control

Specifications

TypeShort-Path Distillation
Capacity5L
Voltage110V

Questions about this item

How do I connect the chiller to the distillation head without leaking?

Slide the supplied 10 mm hose barbs onto the chiller outlet and the condenser inlet, then secure each joint with a worm-drive clamp; the barbs detach for cleaning but must be fully seated before tightening.

Which consumable on the vacuum pump needs periodic replacement?

The SHZ-D(III) pump uses a 15 L water tank as its sealing fluid; drain and refill with fresh distilled water when the level drops or the vacuum falls below 0.098 MPa.

What temperature limit does the chiller hit first during a long run?

The DLSB-5/10 reaches its no-load minimum of -15 °C; once the bath stabilises there, refrigeration capacity drops to the lower end of the 1328-319 W range and can no longer offset the mantle’s 900 W heat load.
