Desktop short-path distillation kit with glassware, vacuum pump and chiller unit

HNZXIB

HNZXIB SPD-5L 5L Short Path Distillation Water Circulating Vacuum Pump Cooling Chiller 110V

SKU CH-AM1Y-YGFJP MPN SPD-5L

A 5 L short-path distillation kit with electric heating mantle, magnetic stirring, double-tap vacuum pump and -15 °C chiller for solvent recovery

  • TypeShort-Path Distillation
  • Capacity5L
  • Voltage110V
  • 5 L distillation capacity for larger batch processing
  • 110 V power supply compatible with standard North American outlets
  • 098 MPa vacuum degree for efficient low-pressure separation
  • 15 °C minimum chiller temperature for effective condensation
  • 20 L/min chiller flow rate for consistent cooling performance

5L Short-Path Distillation System

The HNZXIB SPD-5L is a complete laboratory kit for short-path distillation with a 5L capacity. It integrates a heating mantle, a double-tap vacuum pump and a refrigerated circulating chiller. All components operate on 110V/60Hz power. The system is designed for solvent separation and purification tasks in a desktop format.

Suited for solvent recovery

Chemists who need an all-in-one 5L short-path setup with integrated vacuum and cooling will find the matching components convenient. Buyers who require a larger processing volume, a different voltage supply, or standalone glassware without the pump and chiller should look at other configurations.

5L borosilicate glass with vacuum-jacketed adapter

The distillation vessel uses heavy-duty GG17 borosilicate glass and includes a vacuum-jacketed adapter with four Vigreux stages. Detachable 3/8" hose barbs connect the chiller and pump. The chiller reaches a no-load minimum of -15°C with ±0.2°C precision, while the pump achieves 0.098 MPa vacuum degree.

Highlights

  • 5 L distillation capacity for larger batch processing
  • 110 V power supply compatible with standard North American outlets
  • 098 MPa vacuum degree for efficient low-pressure separation
  • 15 °C minimum chiller temperature for effective condensation
  • 20 L/min chiller flow rate for consistent cooling performance

Specifications

TypeShort-Path Distillation
Capacity5L
Voltage110V

Questions about this item

How can I confirm the short-path distillation kit is running correctly after assembly?

Verify the vacuum gauge reads 0.098 MPa, the chiller maintains temperature within ±0.2 °C of the set point, and the heating mantle delivers 900 W with 40 W stirring power.

What components arrive in the box and which items must be sourced separately?

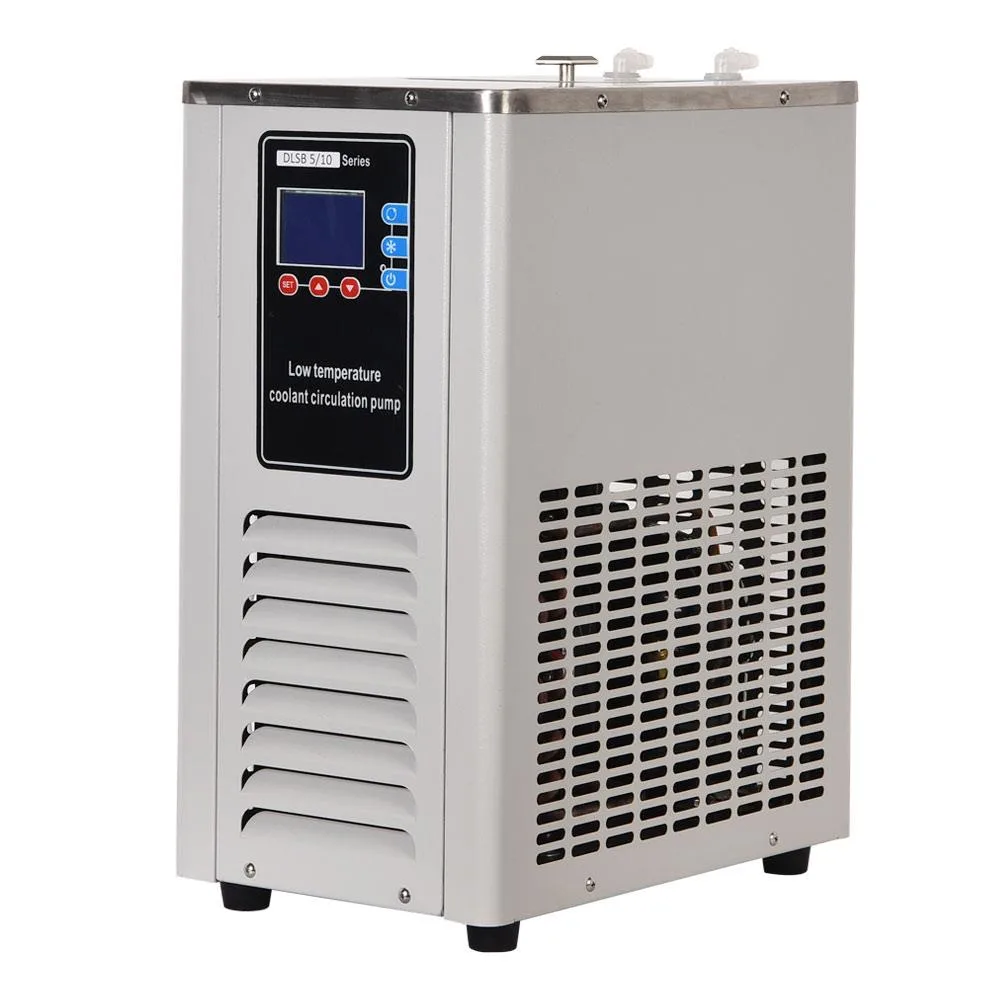

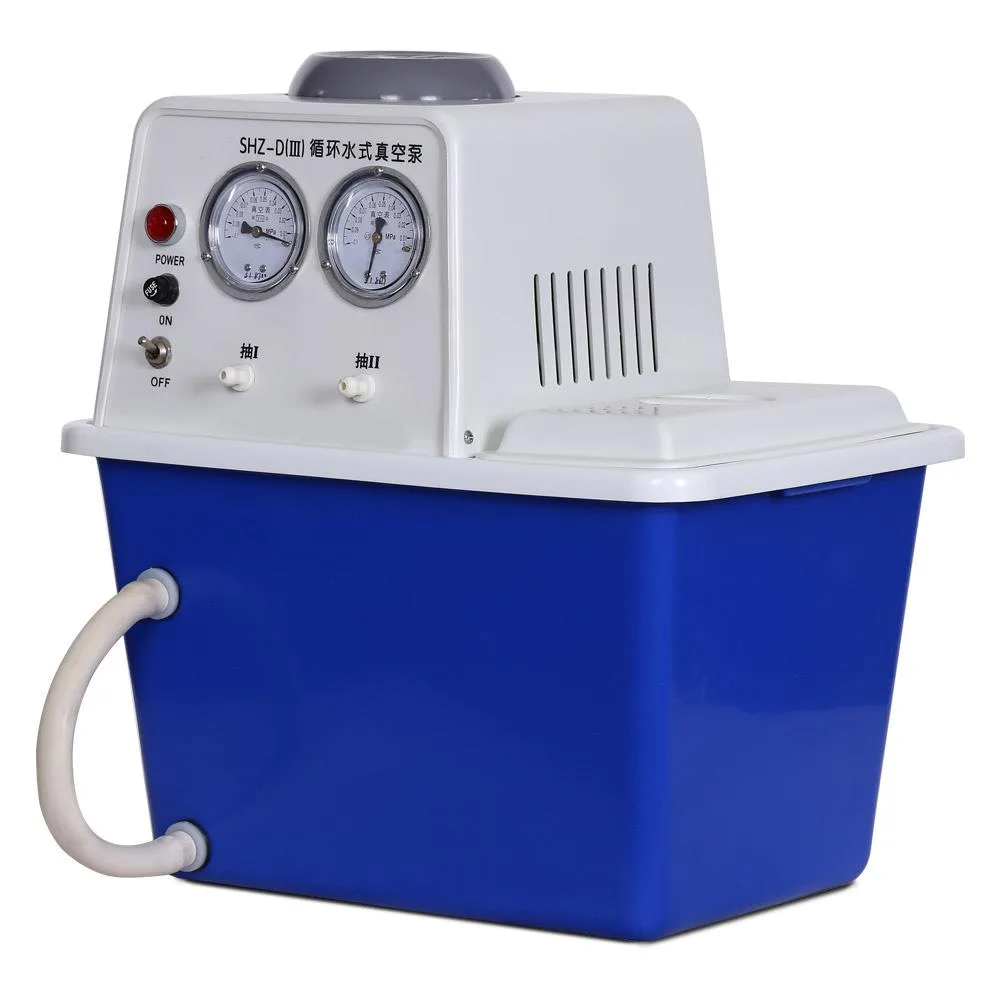

The package includes the SPD-5L glassware set, SHZ-D(III) double-tap vacuum pump, and DLSB-5/10 chiller; hoses, clamps, and process fluids are not supplied.

Which voltage version of the SPD-5L system should I select for a 110 V laboratory supply?

Choose the 110 V/60 Hz configuration; the pump, chiller, and heating mantle are all rated for 110 V operation.
