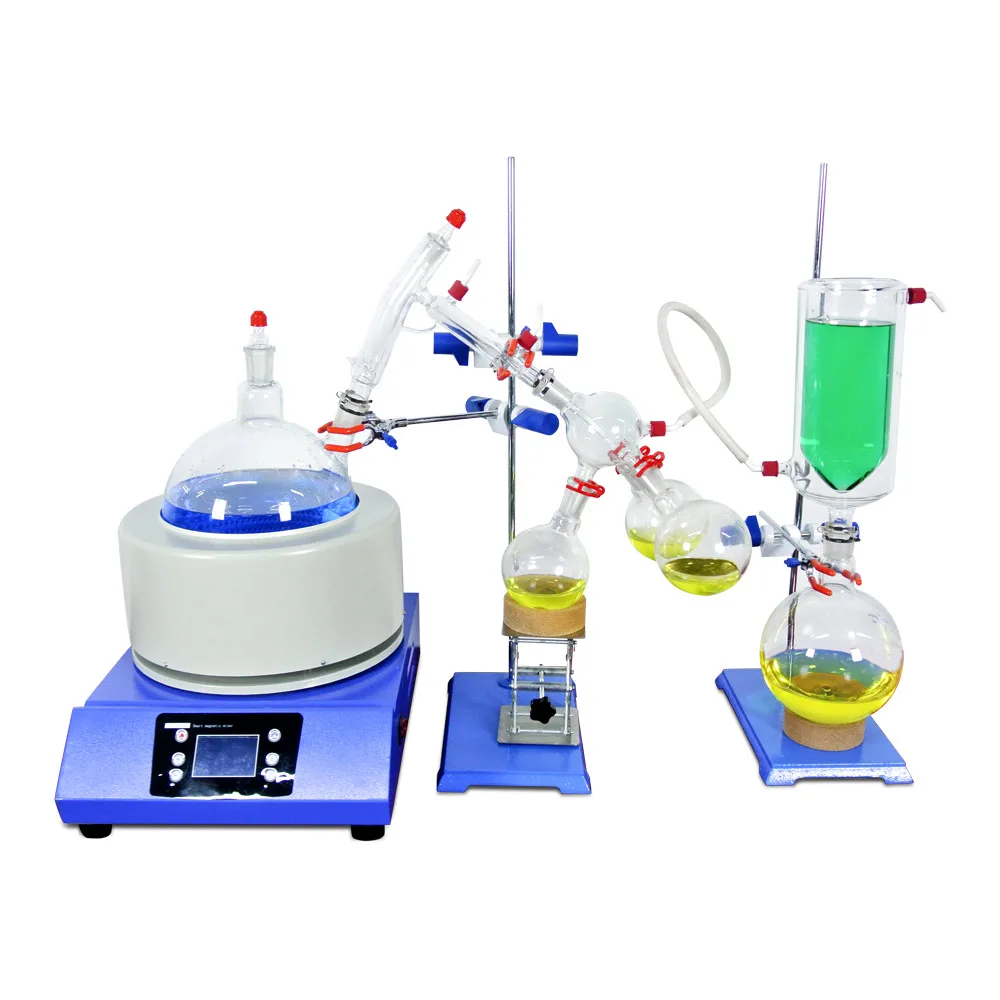

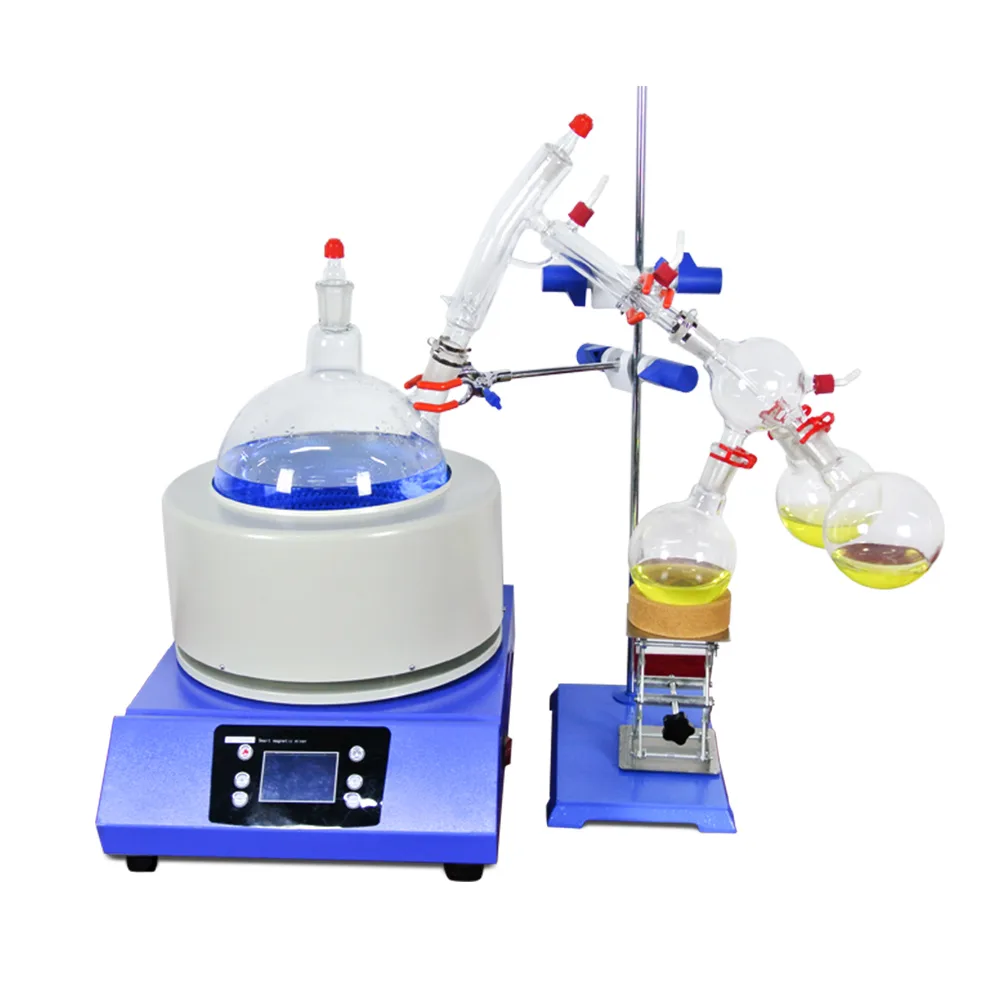

5L short path distillation kit with glassware, rotary vane vacuum pump and chiller unit

HNZXIB

HNZXIB SPD-5L 5L Short Path Distillation Rotary Vane Vacuum Pump Refrigerated Circulating Cooling Chiller 110V

SKU CH-ZEXB-P8CV2 MPN SPD-5L

A 5 L short-path distillation kit with rotary vane vacuum pump and refrigerated chiller operating on 110 V power

  • TypeShort-Path Distillation
  • Capacity5L
  • Voltage110V
  • 5L short-path distillation capacity for efficient processing
  • 2-stage rotary vane vacuum pump reaches 0.098 MPa vacuum
  • Chiller maintains -15°C minimum temperature with ±0.2°C precision
  • Borosilicate GG17 glass with 4 Vigreux stages ensures durability
  • Detachable 10mm hose barbs maximise operational safety

Complete Distillation System

The HNZXIB SPD-5L combines a 5L short-path distillation kit, a two-stage rotary vane vacuum pump and a refrigerated circulating chiller on 110V power. Borosilicate GG17 glassware includes a vacuum-jacketed adapter with four Vigreux stages and detachable 10mm hose barbs. The package arrives in a wooden case and is covered by a one-year warranty.

Suited For Solvent Recovery

Chemists who need a matched 5L distillation train with integrated vacuum and cooling will find the components pre-selected for compatibility. Buyers requiring larger batch volumes, different voltage supply or a different vacuum depth should evaluate other configurations.

Deciding Specification

The chiller reaches a no-load minimum temperature of -15°C with a refrigeration capacity of 1328-319W and a flow of 20L/min, determining whether the system can condense your target vapours at the required rate.

Highlights

  • 5L short-path distillation capacity for efficient processing
  • 2-stage rotary vane vacuum pump reaches 0.098 MPa vacuum
  • Chiller maintains -15°C minimum temperature with ±0.2°C precision
  • Borosilicate GG17 glass with 4 Vigreux stages ensures durability
  • Detachable 10mm hose barbs maximise operational safety

Specifications

TypeShort-Path Distillation
Capacity5L
Voltage110V

Questions about this item

What vacuum level does the 2XZ-2 pump reach without gas ballast?

The pump achieves 6×10⁻² Pa without gas ballast and 1.33 Pa with it, matching the 0.098 MPa system vacuum spec.

What are the chiller's dimensions and hose barb size for bench fit?

Chiller measures 500×370×540 mm; the distillation kit includes detachable 3/8 in (10 mm) plastic hose barbs.

What is the correct sequence to start the 110 V system without tripping the breaker?

Power the chiller first to reach -15 °C, then start the vacuum pump, and finally engage the 900 W heating mantle and 40 W stirrer.
