5L short-path distillation kit with glassware and heating mantle

HNZXIB

HNZXIB SPD-5L 5L Short Path Distillation Kit Cold Trap 110V Stirring Heating Mantle

SKU CH-KP7V-0ZSPW MPN SPD-5L

A 5-litre short-path distillation kit with cold trap, 110 V heating mantle and magnetic stirring for laboratory separation and solvent recycling

  • TypeShort-Path Distillation
  • Capacity5L
  • Voltage110V
  • 5 L capacity handles large batch processing
  • GG17 high borosilicate glass resists thermal shock and chemicals
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • Magnetic stirring mantle with 900 W heating and 40 W stirring ensures uniform temperature
  • 110 V / 60 Hz power supply ready for standard North American outlets

5L Short-Path Distillation Kit

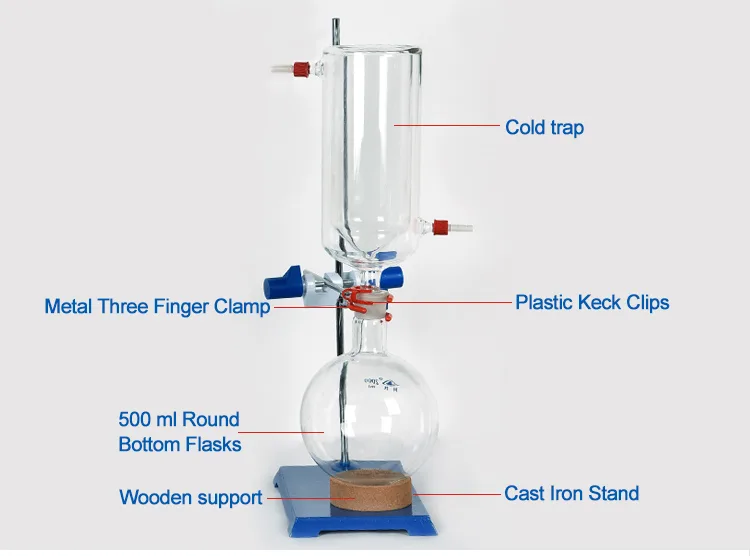

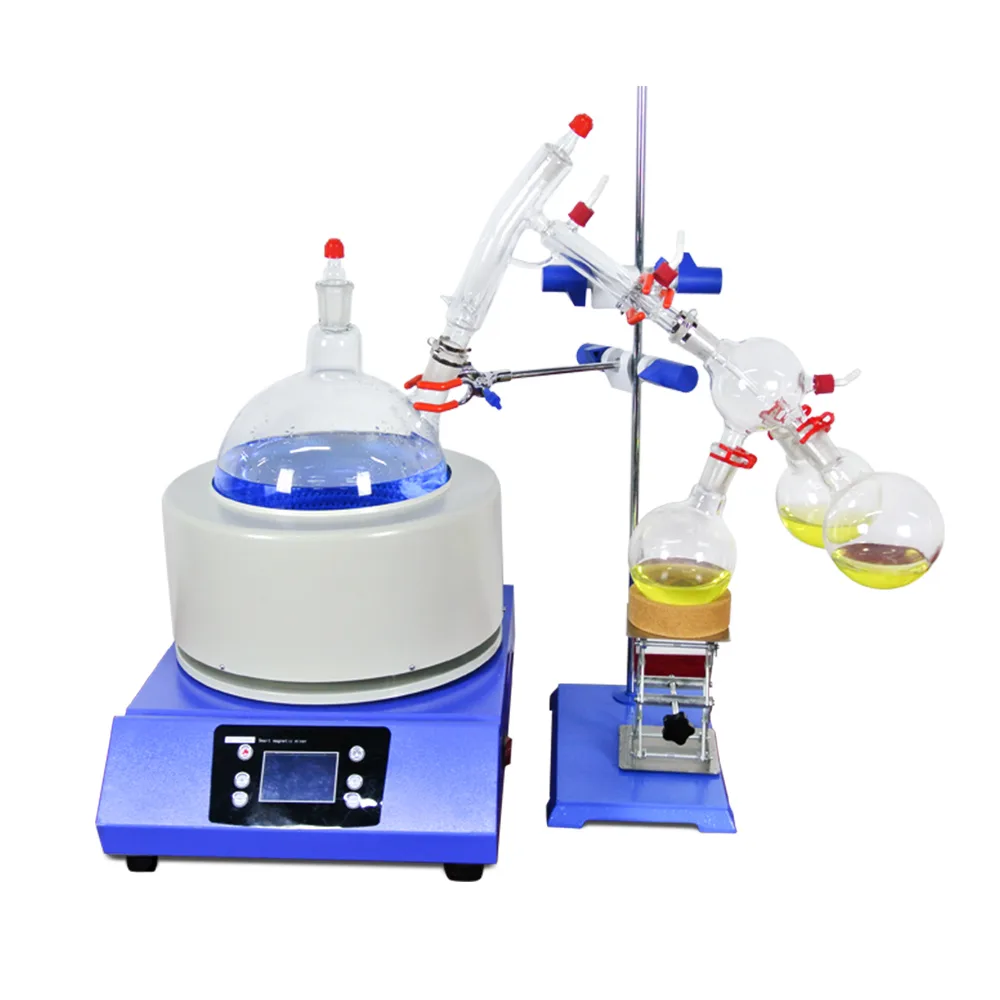

The HNZXIB SPD-5L kit provides a 5-litre short-path distillation system built for laboratory enrichment, crystallisation, drying, separation and solvent recycling. It includes a vacuum-jacketed distillation adapter with four Vigreux stages, a cold trap and an 110 V heating mantle with magnetic stirring. The apparatus suits university, bio-pharmaceutical and petrochemical workflows that require high-purity fraction collection.

110 V Power and Vacuum Limits

The heating mantle runs on 110 V at 60 Hz and draws 900 W for heating plus 40 W for stirring. The system is rated to a vacuum degree of 0.098 Mpa, which defines the practical lower-pressure boundary for distillation runs. Glassware joints and the cold trap must maintain this vacuum level; performance will vary if seals or pump capacity fall short of the specification.

GG17 Borosilicate Glass and Mantle Construction

All glass components use GG17 high borosilicate glass for chemical stability, electrical insulation and mechanical strength. The mantle liner is woven from high-temperature alkali-free glass fibre with the resistance wire sealed inside a hemispherical heater. Initial heating releases white smoke and odor as manufacturing compounds burn off, turning the liner from white to brown — a normal one-time occurrence.

Highlights

  • 5 L capacity handles large batch processing
  • GG17 high borosilicate glass resists thermal shock and chemicals
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • Magnetic stirring mantle with 900 W heating and 40 W stirring ensures uniform temperature
  • 110 V / 60 Hz power supply ready for standard North American outlets

Specifications

TypeShort-Path Distillation
Capacity5L
Voltage110V

Questions about this item

Should I pick the 110V or 220V version of the 5L kit?

The kit you are viewing runs on 110V/60Hz; a 220V heating mantle is offered as an alternative if your lab uses that supply.

What does the 900W heating power mean for daily runs?

It gives a large heating area and fast heat-up so the 5L flask reaches working temperature quickly.

How does the 0.098Mpa vacuum rating affect the distillation?

That vacuum depth lowers boiling points, letting you separate heat-sensitive compounds at lower temperatures.
