5L short-path distillation kit with glassware and heating mantle

HNZXIB

HNZXIB SPD-5L 5L Short Path Distillation Kit 110V Stirring Heating Mantle Factory Price Laboratory Equipment

SKU CH-8W7R-C3DTZ MPN SPD-5L

A 5-litre short-path distillation kit with a 110 V heating mantle that delivers 900 W heating and 40 W magnetic stirring

  • TypeShort-Path Distillation
  • Capacity5L
  • Voltage110V
  • 5 L capacity handles large batch distillation
  • 110 V / 60 Hz power matches standard lab supply
  • 900 W heating mantle with magnetic stirring for fast uniform heat
  • GG17 high borosilicate glass resists thermal shock and chemicals
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency

5L Short-Path Distillation Kit

The HNZXIB SPD-5L is a 5L short-path distillation kit designed for laboratory enrichment, crystallisation, drying, separation, drug processing and solvent recycling. It serves university research, bio-pharmaceutical and petrochemical applications requiring efficient thermal separation.

GG17 Borosilicate Glass & 110V Mantle

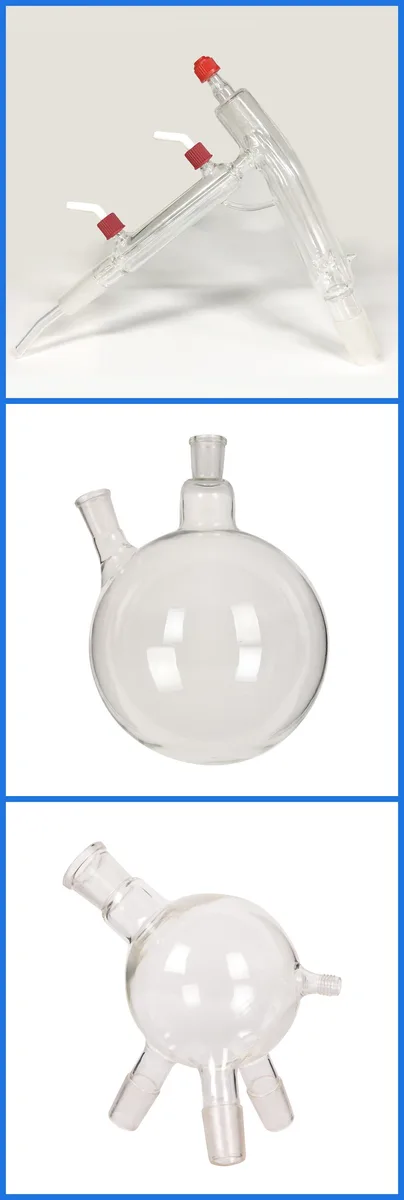

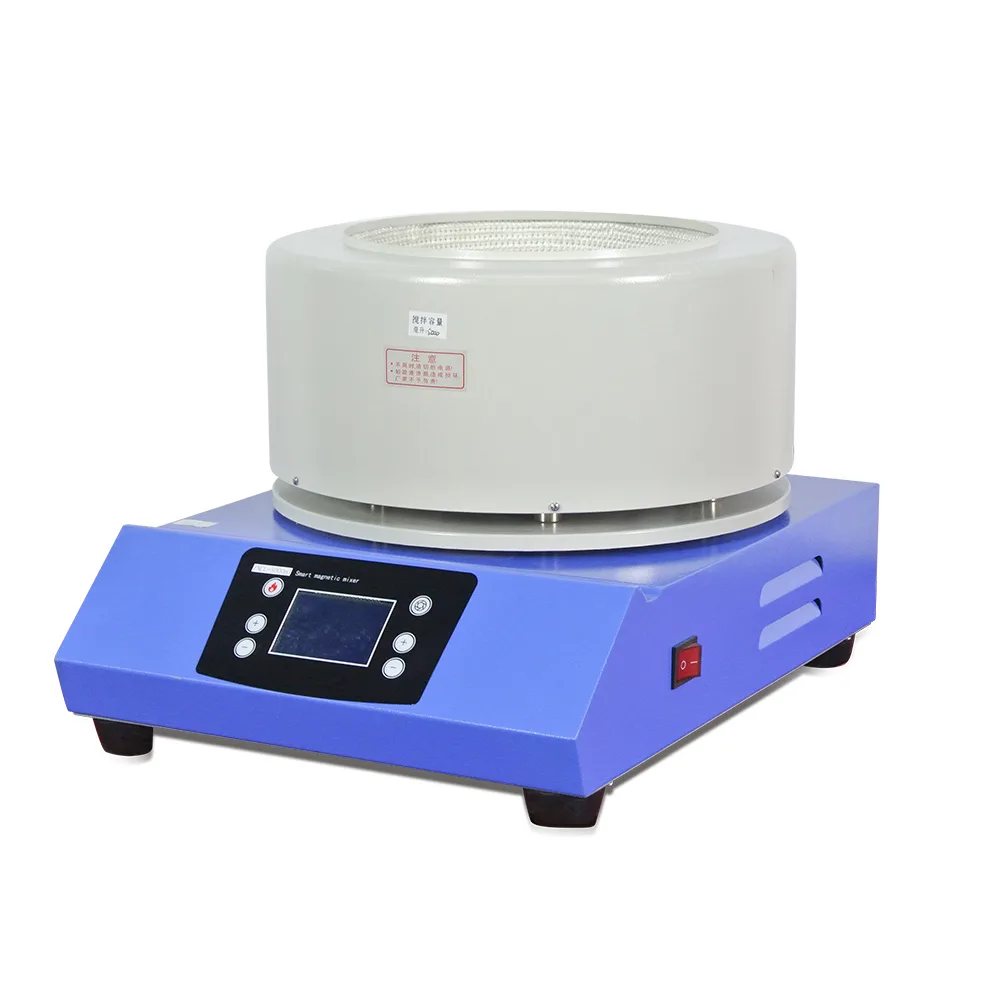

The kit uses high-quality GG17 high borosilicate glass for chemical stability and mechanical durability. A vacuum-jacketed distillation adapter with four Vigreux stages connects to a 5L heating mantle that provides magnetic stirring and intelligent digital display. The mantle operates at 110V/60Hz with 900W heating power and 40W stirring power, using alkali-free glass fibre insulation for sealed resistance wires. No cold trap is included.

Replaces Basic Flask Setups

This system replaces simple flask-and-condenser arrangements when higher vacuum degree (0.098M pa) and integrated stirring are needed for faster, more consistent fraction collection. The jump is worth it for labs that require the combined heating, stirring and vacuum-jacketed adapter in a single 5L package. First-time heating may produce white smoke and liner discolouration from glass-fibre compounds, which is normal.

Highlights

  • 5 L capacity handles large batch distillation
  • 110 V / 60 Hz power matches standard lab supply
  • 900 W heating mantle with magnetic stirring for fast uniform heat
  • GG17 high borosilicate glass resists thermal shock and chemicals
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency

Specifications

TypeShort-Path Distillation
Capacity5L
Voltage110V

Questions about this item

What does the 110V/60Hz power supply cap the heating and stirring power at?

The kit runs on 110V/60Hz and delivers 900W heating power and 40W stirring power.

What physical clearance and mounting does the 5L kit with vacuum-jacketed adapter and 4 Vigreux stages require?

The 5L flask, vacuum-jacketed distillation adapter with four Vigreux stages, and 110V heating mantle need bench space for a wooden-case-sized footprint and a standard 110V outlet.

How is the SPD-5L assembled and what first-heat step is often missed?

Assemble the glassware — flask, adapter with four Vigreux stages, and condenser — mount the mantle, connect 110V power, then run the mantle empty on first heat; the liner will smoke and turn brown as glass-fibre residues burn off, which is normal.
