Complete 5L short path distillation kit with glassware, vacuum pump, chiller and heating mantle

HNZXIB

HNZXIB SPD-5L 5L Short Path Distillation Kit 110V

SKU CH-RVJ0-E9PFF MPN SPD-5L

A 5 L short-path distillation system with vacuum-jacketed adapter, four Vigreux stages, 900 W heating mantle, 40 W magnetic stirring, 0.098 MPa vacuum pump, and –15 °C chiller, all on 110 V power

  • TypeShort-Path Distillation
  • Capacity5L
  • Voltage110V
  • Complete 5L distillation system with pump and chiller
  • Vacuum-jacketed adapter with 4 Vigreux stages for efficient separation
  • Borosilicate GG17 glass resists thermal shock and corrosion
  • Magnetic stirring mantle heats to 900 W with digital control
  • Chiller reaches -15 °C with ±0.2 °C precision

5L Short-Path Distillation Kit

The HNZXIB SPD-5L is a complete 5-litre short-path distillation system supplied new for laboratory use. It includes the distillation glassware, a cold trap, a stirring heating mantle, a desktop vacuum pump and a refrigerated circulator. All components operate on a 110V 60Hz supply, making the kit suitable for labs with standard North American mains voltage.

Sustained-load behaviour

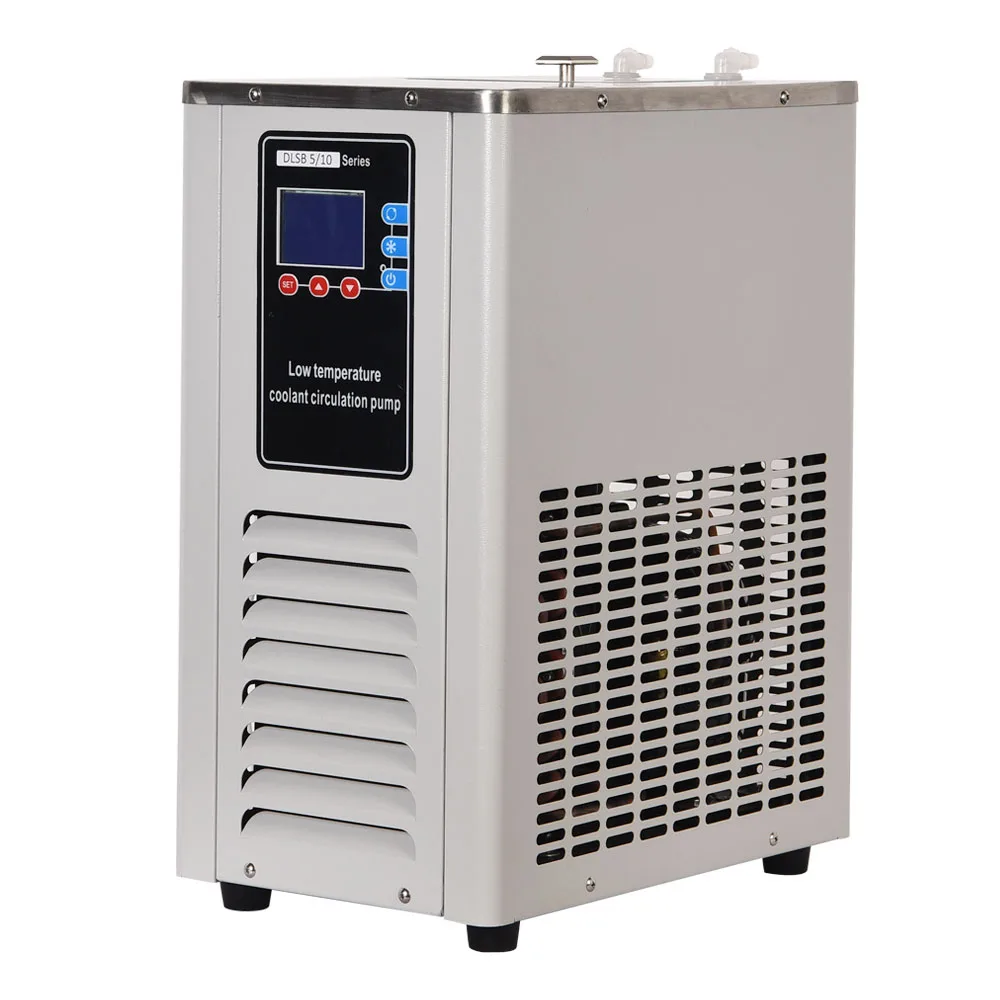

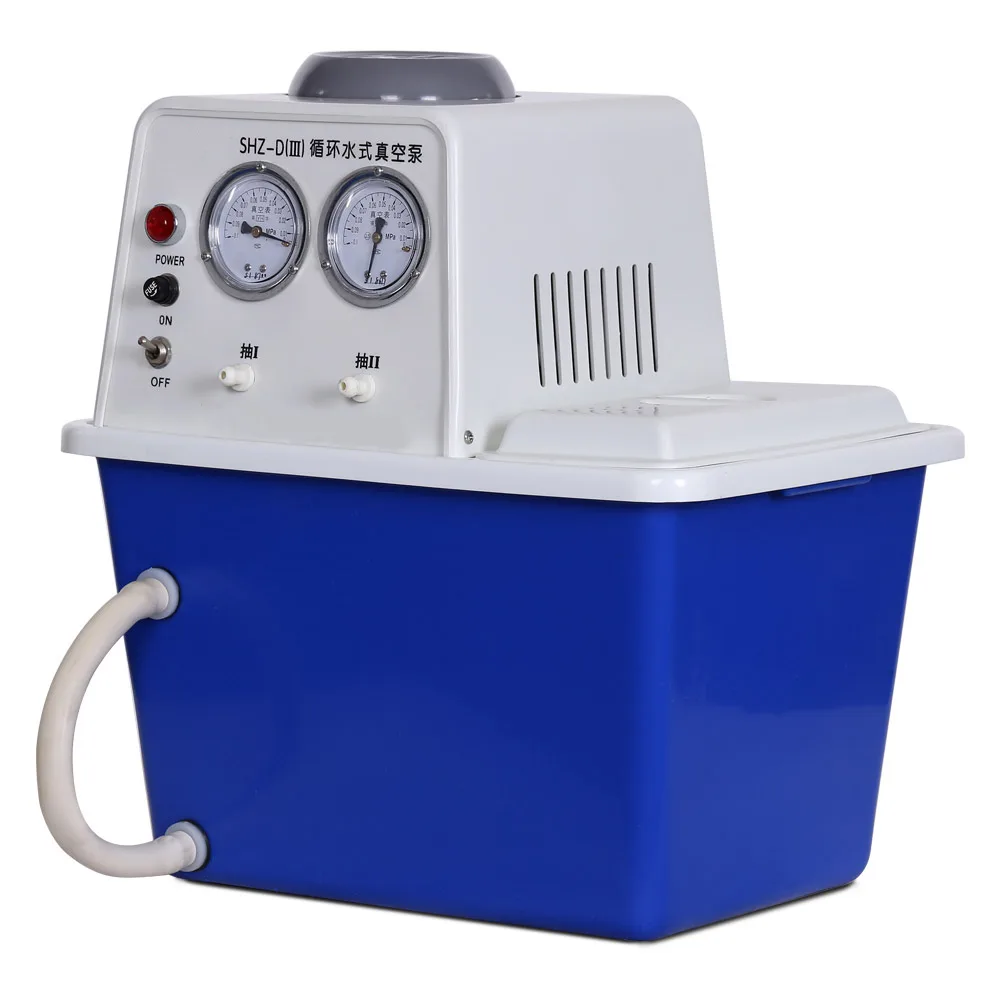

The heating mantle delivers 900W of power with a 40W magnetic stirrer and intelligent digital display for continuous operation. The vacuum pump achieves a vacuum degree of 0.098 MPa with a flow of 60 L/min and 8 m lift, while each tap provides a sucking rate of 10 L/min. The chiller maintains a no-load minimum temperature of -15°C with a refrigerant capacity of 1328-319W, flow of 20 L/min and temperature precision of ±0.2 °C under a 25°C ambient environment.

Installation and common issues

The kit ships in wooden-case packaging and typically arrives within 7-14 working days. Detachable plastic 3/8” (10mm) hose barbs allow straightforward connection of the vacuum and cooling circuits, and the vacuum-jacketed adapter with four Vigreux stages assembles onto the borosilicate GG17 glassware. Users must ensure adequate ventilation for the chiller dimensions of 500*370*540 mm and verify that the 110V supply matches their facility; a 220V option exists but is not included in this package.

Highlights

  • Complete 5L distillation system with pump and chiller
  • Vacuum-jacketed adapter with 4 Vigreux stages for efficient separation
  • Borosilicate GG17 glass resists thermal shock and corrosion
  • Magnetic stirring mantle heats to 900 W with digital control
  • Chiller reaches -15 °C with ±0.2 °C precision

Specifications

TypeShort-Path Distillation
Capacity5L
Voltage110V

Questions about this item

How much heat does the 900 W heating mantle add to the lab when the SPD-5L runs all day?

The mantle draws 900 W and the stirrer adds 40 W, so nearly 1 kW of heat enters the room during continuous operation.

Which chiller hose size matches the 10 mm barbs on the distillation adapter?

The kit includes detachable 3/8 in (10 mm) plastic hose barbs that connect directly to the DLSB-5/10 chiller lines.

Will the SHZ-D(III) vacuum pump reach its 0.098 MPa rating with my existing 5 L flask?

Yes, the double-tap pump is specified at 0.098 MPa and 10 L/min per tap, matching the 5 L short-path flask capacity.
