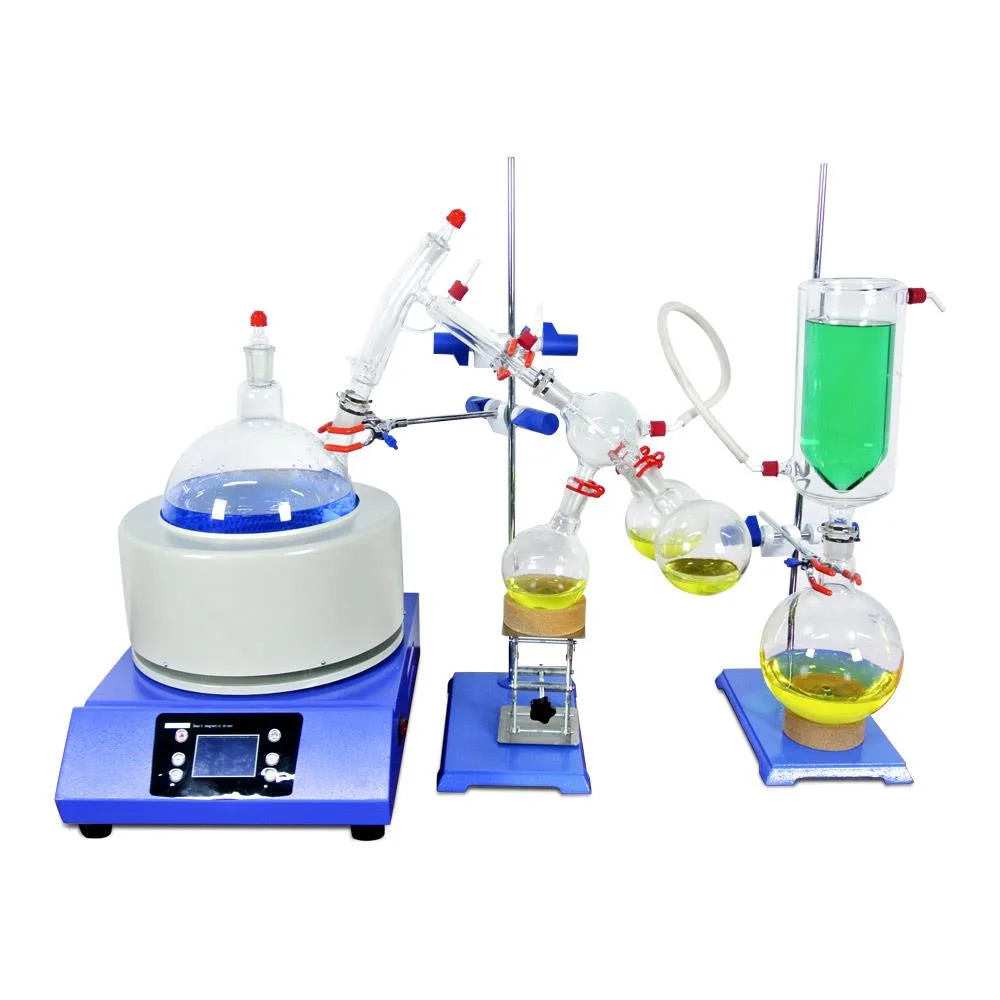

Complete 2L short-path distillation kit with glassware, heating mantle, vacuum pump and chiller on bench

HNZXIB

HNZXIB SPD-2L 2L Short-Path Distillation Rotary Vane Vacuum Pump Refrigerated Circulating Pump 110V

SKU CH-50JY-ZFEPD MPN SPD-2L

A 2L short-path distillation kit with rotary-vane vacuum pump, refrigerated circulating chiller, and magnetic-stir heating mantle on 110V power

  • TypeShort-Path Distillation
  • Capacity2L
  • Voltage110V
  • 2L capacity processes larger batches per run
  • 450 W heating mantle reaches temperature quickly
  • 1400 rpm rotary-vane pump achieves 0.098 Mpa vacuum
  • 4 Vigreux stages improve separation efficiency
  • 110 V 60 Hz power suits standard lab outlets

2L Short-Path Distillation Kit

This SPD-2L kit combines a 2L short-path distillation setup with a rotary vane vacuum pump and a refrigerated circulating chiller for laboratory use. It operates on 110V 60Hz power and includes a heating mantle with magnetic stirring and digital display. The glassware uses high-quality borosilicate GG17 for chemical resistance.

Suited for solvent recovery and essential-oil work

The system suits labs needing integrated distillation, vacuum and cooling in one package. Buyers who require a higher vacuum level than 0.098 Mpa or a larger capacity than 2L should look at other equipment. The included vacuum pump is rated for 220V or 380V operation, so separate power arrangements may be needed.

0.098 Mpa vacuum depth decides fit

The achieved vacuum of 0.098 Mpa determines whether this kit meets your process requirements. If your application demands deeper vacuum, this unit will not be sufficient. Verify the vacuum specification against your protocol before purchase.

Highlights

  • 2L capacity processes larger batches per run
  • 450 W heating mantle reaches temperature quickly
  • 1400 rpm rotary-vane pump achieves 0.098 Mpa vacuum
  • 4 Vigreux stages improve separation efficiency
  • 110 V 60 Hz power suits standard lab outlets

Specifications

TypeShort-Path Distillation
Capacity2L
Voltage110V

Questions about this item

Should I choose the 2L distillation kit or a different capacity?

The SPD-2L kit is built around a 2L borosilicate glass distillation head with four Vigreux stages and a matching 2L heating mantle rated at 450W; select this size when your batch volume fits a two-litre flask.

What does the 0.098 MPa vacuum figure mean when the system is running?

That value is the rated vacuum degree of the short-path distillation assembly, indicating the pressure level the glassware and pump combination are designed to reach during operation.

The pump label says 220 V but the kit is sold as 110 V — how does that work?

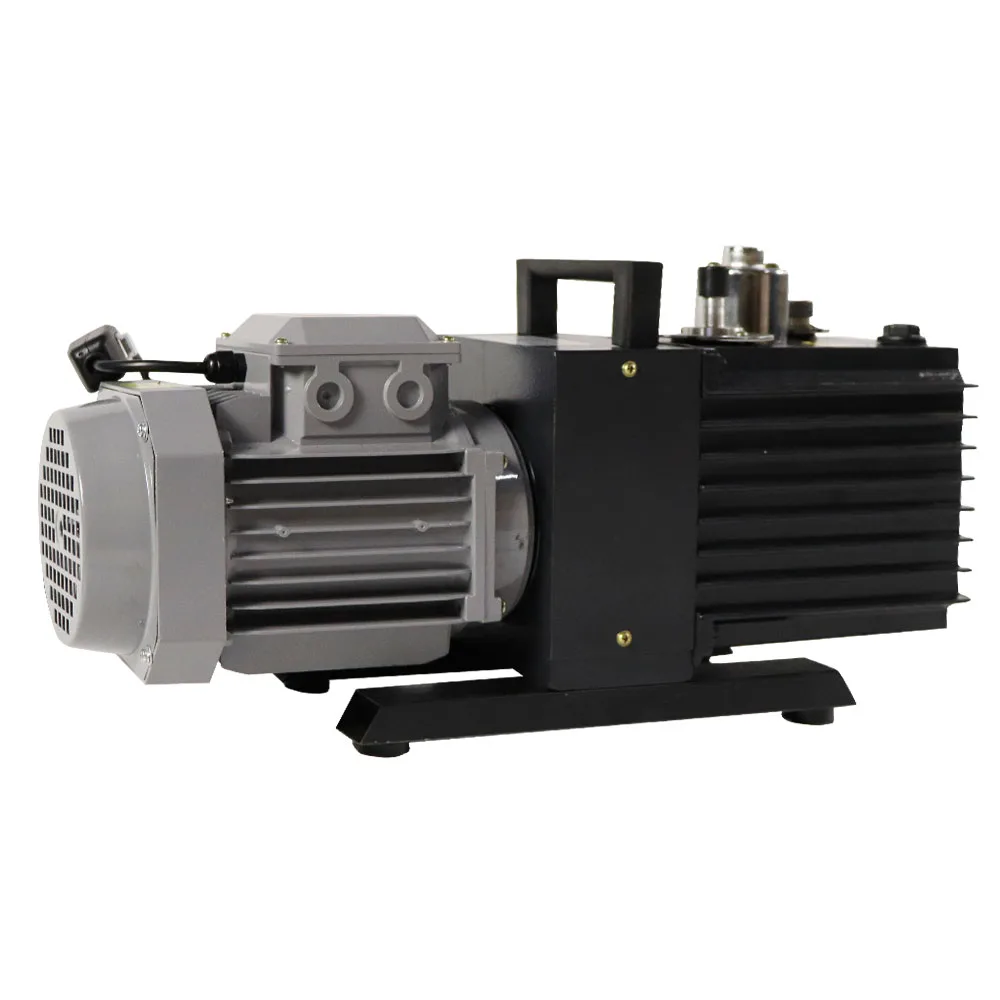

The included rotary-vane pump (model 2XZ-2) is specified for 220 V or 380 V three-phase supply, so a step-up transformer or a dedicated 220 V circuit is required to run the pump alongside the 110 V heating mantle.
