2-litre short-path distillation kit with borosilicate glassware, vacuum-jacketed adapter, heating mantle and cold trap

HNZXIB

HNZXIB SPD-2L 2L Short-Path Distillation Kit 220V Laboratory Equipment

SKU CH-71JW-WN9MV MPN SPD-2L

A 2-litre short-path distillation kit with a vacuum-jacketed adapter, magnetic-stir heating mantle and GG17 borosilicate glass for laboratory separation and solvent recycling

  • TypeShort-Path Distillation
  • Capacity2L
  • Voltage220V
  • High borosilicate GG17 glass ensures chemical stability
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • 2 L heating mantle with magnetic stirring and digital display enables precise temperature control
  • 450 W heating power and 20 W stirring power deliver fast heat-up and uniform mixing
  • Achieves 0.098 Mpa vacuum degree for effective solvent recovery

2L Short-Path Distillation Kit

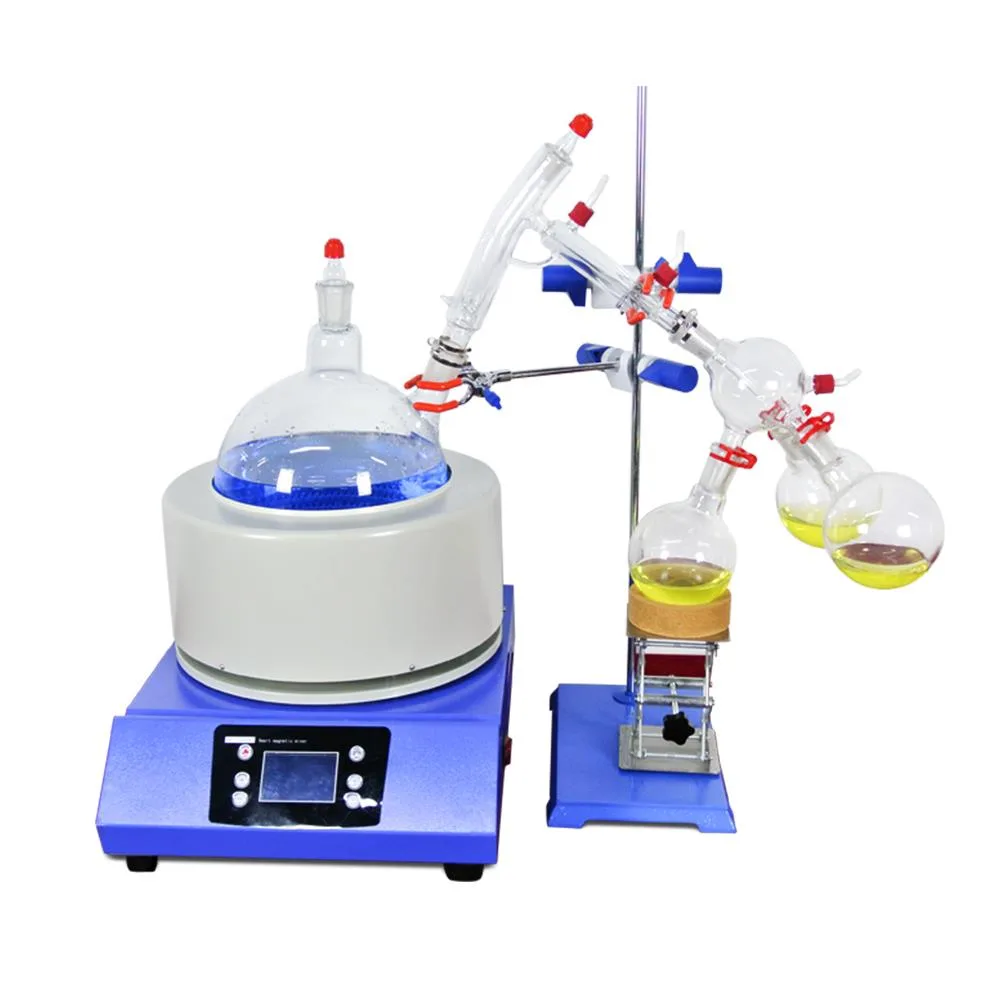

The HNZXIB SPD-2L is a 2-litre short-path distillation apparatus designed for laboratory enrichment, crystallisation, drying, separation and solvent recycling. It operates on a 220V 50Hz supply and uses GG17 high borosilicate glass for chemical stability and durability. The system suits university, bio-pharmaceutical and petrochemical workflows.

Vacuum-Jacketed Adapter and Heating Mantle

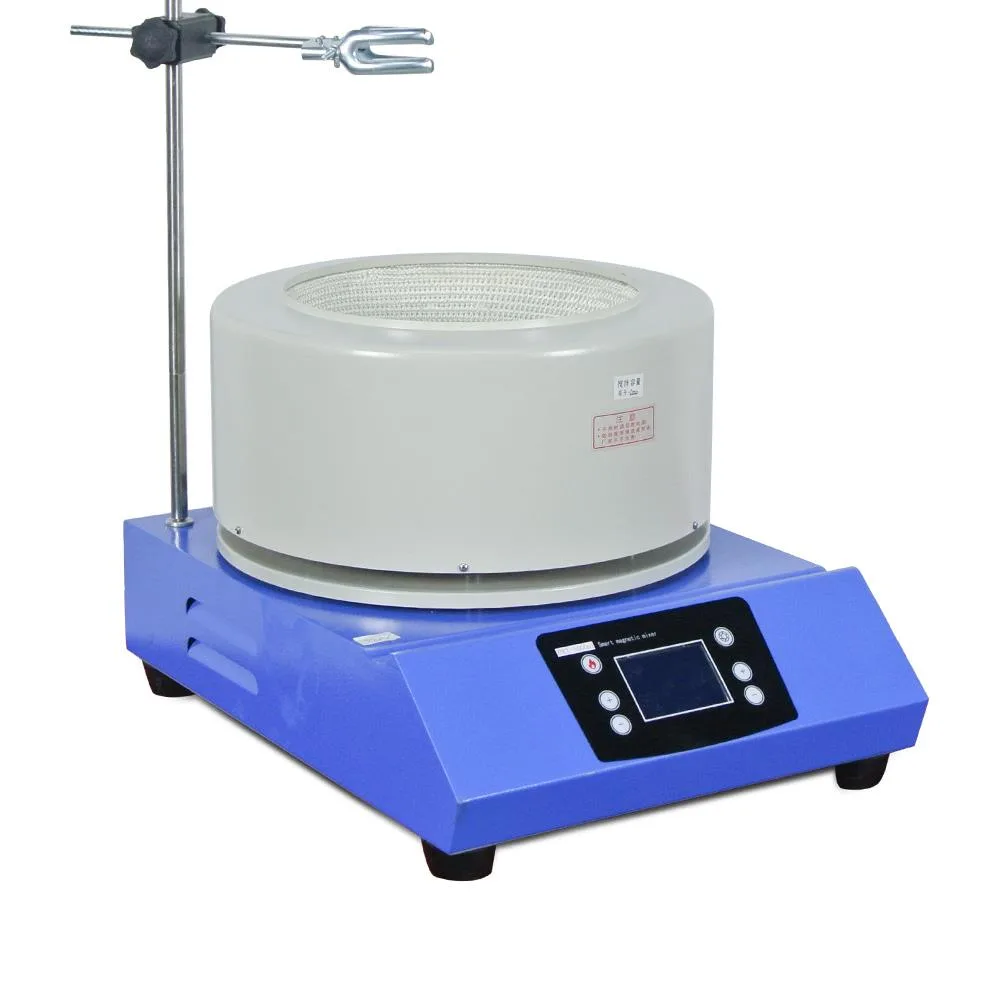

A vacuum-jacketed distillation adapter with four Vigreux stages connects to a 2L heating mantle that integrates magnetic stirring and an intelligent digital display. The mantle delivers 450W heating power and 20W stirring power, while the liner uses high-temperature alkali-free glass fibre insulation. First use produces white smoke and a colour change from white to brown as manufacturing residues burn off.

2L Capacity and Vacuum Performance

The 2L vessel handles batch volumes up to its rated capacity and achieves a vacuum degree of 0.098M pa for reduced-pressure distillation. The 450W heater provides rapid temperature rise, and the magnetic stirrer ensures uniform mixing during operation. Larger batch volumes or deeper vacuum levels would require a higher-capacity kit.

Highlights

  • High borosilicate GG17 glass ensures chemical stability
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • 2 L heating mantle with magnetic stirring and digital display enables precise temperature control
  • 450 W heating power and 20 W stirring power deliver fast heat-up and uniform mixing
  • Achieves 0.098 Mpa vacuum degree for effective solvent recovery

Specifications

TypeShort-Path Distillation
Capacity2L
Voltage220V

Questions about this item

What glass components in the SPD-2L kit might need replacement if broken?

The kit uses GG17 high borosilicate glass for the distillation adapter with four Vigreux stages and the 2L flask; any of these glass pieces can be replaced individually if damaged.

Which component reaches its limit first during a long distillation run?

The vacuum degree is rated at 0.098 MPa, so the system vacuum is the first parameter that defines the operating limit under sustained use.

How much heat and noise does the 450W heating mantle produce when running all day?

The 450W mantle with 20W magnetic stirring generates steady heat for continuous operation; the sealed resistance wire and glass-fibre insulation keep external surface temperatures moderate and operation quiet.
