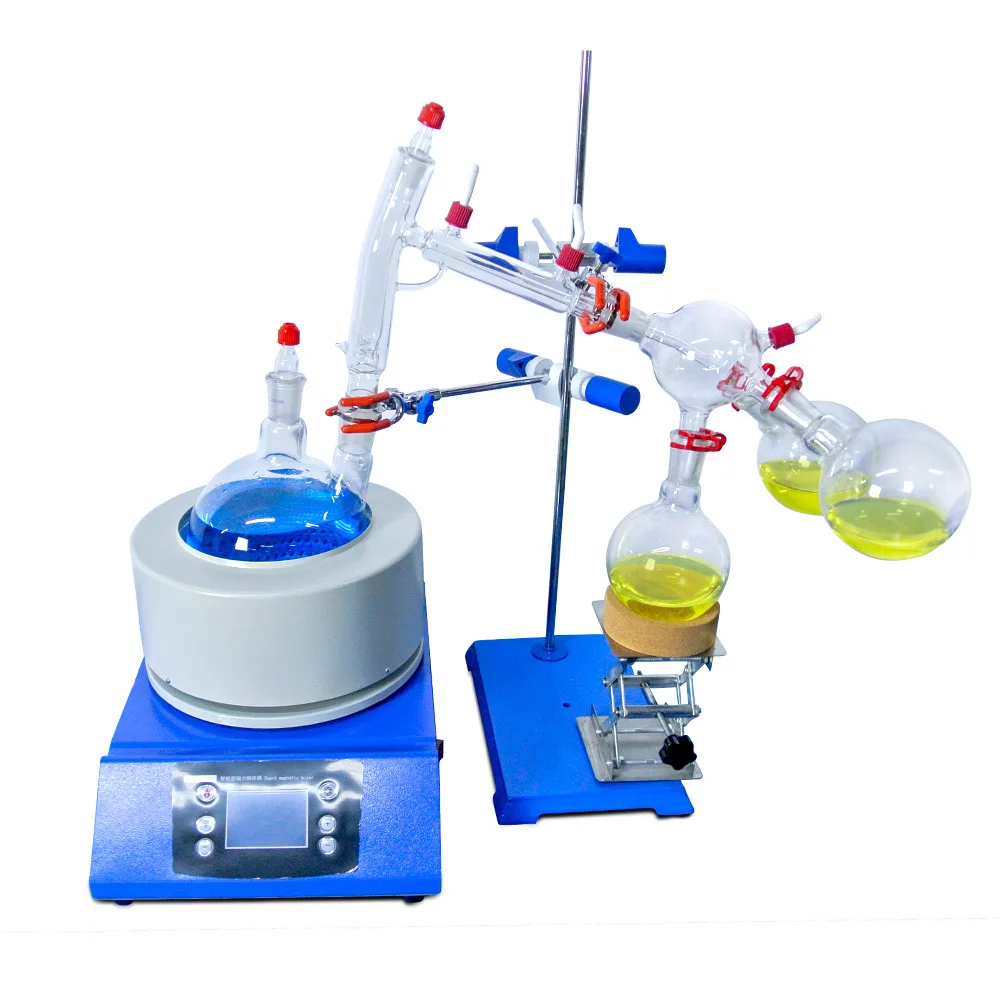

Desktop short-path distillation kit with glassware, heating mantle, vacuum pump and chiller

HNZXIB

HNZXIB SPD-2L 2L Short-Path Distillation Instruments 220V Desktop Kit

SKU CH-G5JC-S3BMM MPN SPD-2L

A 2 L short-path distillation kit with GG17 glass, vacuum-jacketed adapter, magnetic-stirring heating mantle, double-tap vacuum pump and refrigerated circulator for 220 V operation

  • TypeShort-Path Distillation
  • Capacity2L
  • Voltage220V
  • 2L capacity for larger batch processing
  • Borosilicate GG17 glass resists thermal shock and chemicals
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • Magnetic stirring mantle with digital display enables precise temperature control

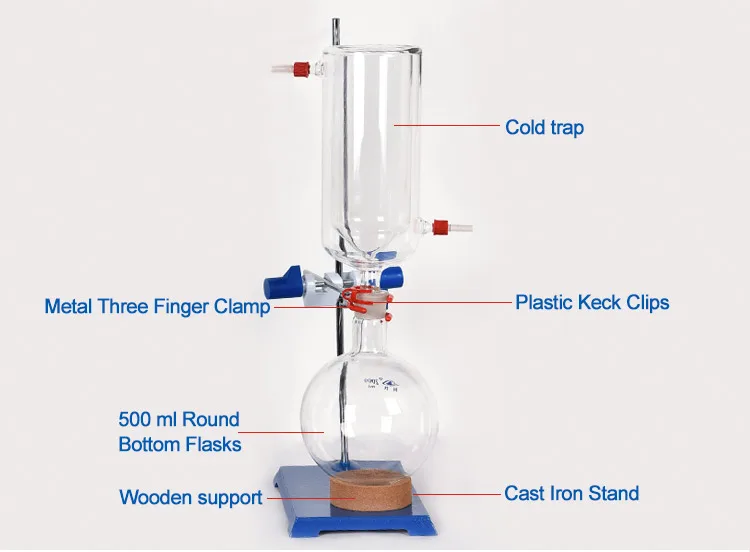

  • Complete kit includes vacuum pump, chiller and cold trap for immediate operation

2L Short-Path Distillation Kit

This 2L short-path distillation kit operates on 220V power and includes the SPD-2L unit, a double-tap vacuum pump, a cold trap, a stirring heating mantle and a refrigerated circulator. It is built for laboratory workflows that require continuous distillation under vacuum. Borosilicate GG17 glass and a vacuum-jacketed adapter with four Vigreux stages support reproducible separation.

Verify 220V supply and bench space

Confirm that your facility provides a stable 220V 50Hz circuit before ordering. The pump runs at 60 L/min flow with 10 L/min per tap and reaches 0.098 Mpa vacuum. The chiller tank holds 15 L and the heating mantle draws 450 W. Wooden-case packaging adds bulk, so allow room for unloading and assembly.

Replaces smaller glassware and single-tap pumps

The kit upgrades from bench-top glassware sets that lack integrated vacuum, chilling and stirring. The jump is worth it when throughput demands a 2L capacity, dual-tap vacuum control and active temperature management in one coordinated system. It is not suited for users who need only occasional micro-scale distillation or who operate on 110V mains.

Highlights

  • 2L capacity for larger batch processing
  • Borosilicate GG17 glass resists thermal shock and chemicals
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • Magnetic stirring mantle with digital display enables precise temperature control
  • Complete kit includes vacuum pump, chiller and cold trap for immediate operation

Specifications

TypeShort-Path Distillation
Capacity2L
Voltage220V

Questions about this item

What glassware and instruments ship in the box, and what must I source separately?

The kit includes the SPD-2L 2L short-path distillation head with vacuum-jacketed adapter and 4 Vigreux stages, a SHZ-D(III) double-tap vacuum pump (15 L tank, 180 W, 60 L/min flow, 0.098 MPa max vacuum), and a DLSB5/10 refrigerated circulator; all run on 220 V/50 Hz.

Which capacity and voltage version should I select for a 2 L batch on 220 V mains?

Choose the SPD-2L model rated 220 V/50 Hz with 2 L capacity, 450 W heating power and 20 W stirring power; the matching pump and chiller are also 220 V units supplied in the same kit.

What does the 0.098 MPa vacuum rating mean when the system is running?

Both the distillation head and the SHZ-D(III) pump specify a maximum vacuum degree of 0.098 MPa, so the assembled system can reach that level; each pump tap delivers 10 L/min sucking rate to maintain it during operation.
