Desktop short-path distillation kit with glassware, heating mantle, chiller and vacuum pump

HNZXIB

HNZXIB SPD-2L 2L Short Path Distillation 110V laboratory supply

SKU CH-NV94-EQSMD MPN SPD-2L

A 2-litre short-path distillation kit with 450 W heating mantle, magnetic stirring, vacuum-jacketed adapter and 60 L/min vacuum pump for 110 V labs

  • TypeShort-Path Distillation
  • Capacity2L
  • Voltage110V
  • 2 L capacity processes larger batches per run
  • 110 V 60 Hz power suits standard North American outlets
  • Borosilicate GG17 glass resists thermal shock and chemical attack
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • Detachable 10 mm hose barbs simplify safe fluid connections

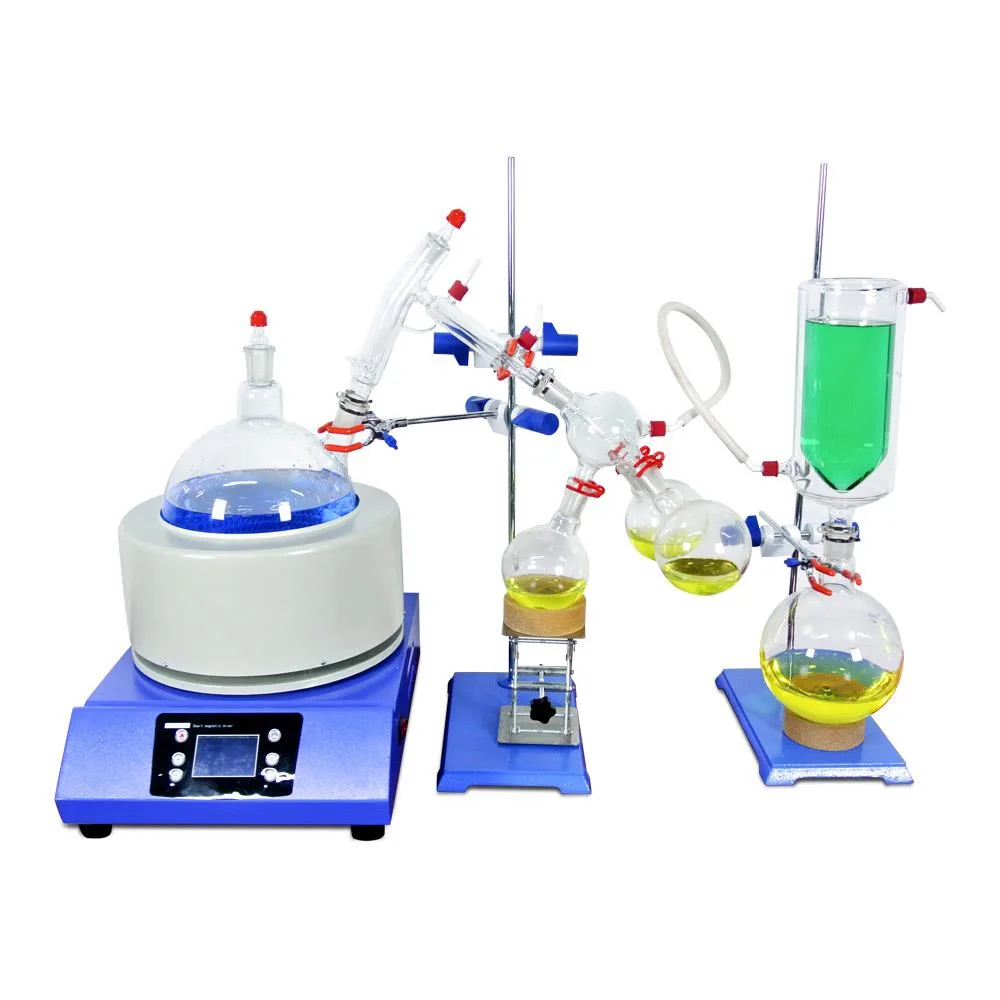

2L Short-Path Distillation System

The HNZXIB SPD-2L is a desktop short-path distillation kit designed for laboratory fractional distillation workflows. It integrates a 2L borosilicate GG17 glass assembly with a magnetic stirring heating mantle and digital temperature control. The system operates on a 110V/60Hz power supply for standard North American laboratory circuits.

Vacuum-Jacketed Adapter and Cold Trap

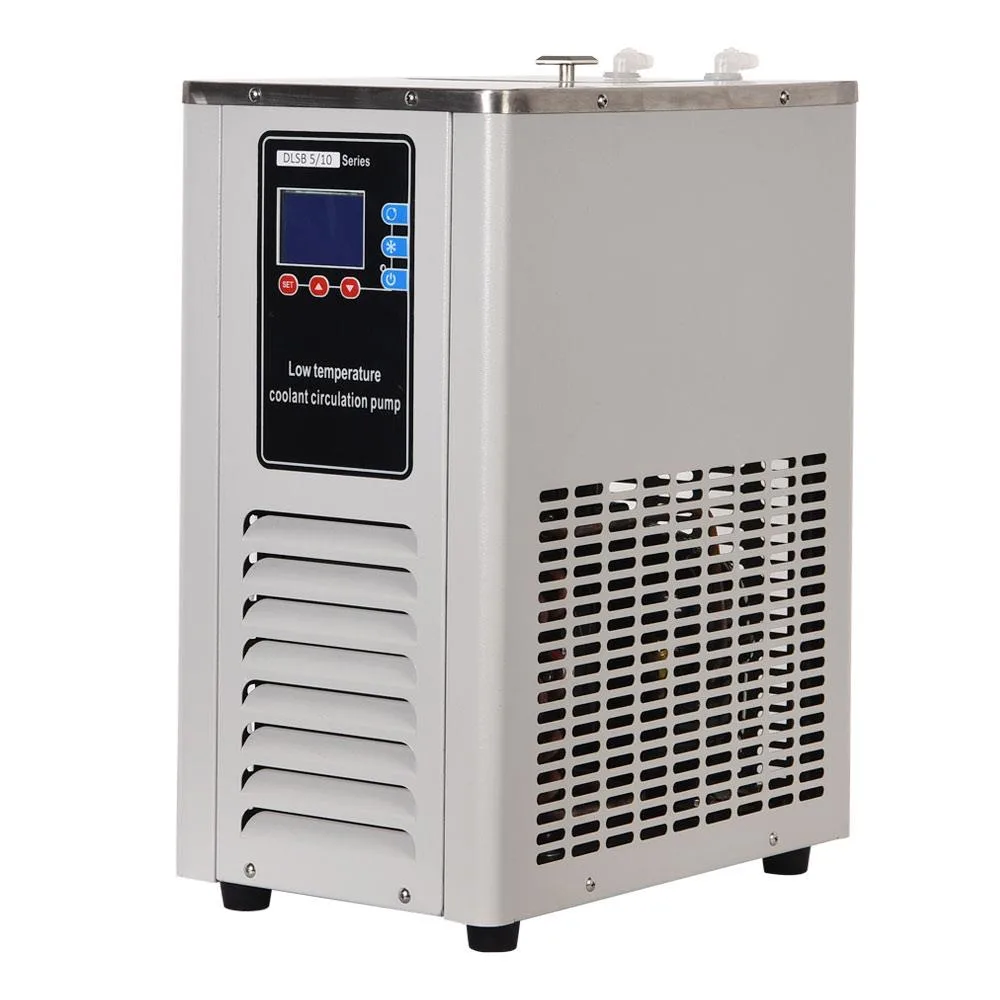

The bundled vacuum-jacketed distillation adapter includes four Vigreux stages to improve separation efficiency during operation. A circulating vacuum pump rated at 60 L/min flow and 8 m lift achieves a vacuum degree of 0.098 MPa. The package also supplies a refrigerated circulating chiller with a 15 L tank and detachable 3/8" hose barbs for coolant connections.

2L Capacity with 450W Heating Power

The 2L flask capacity suits small-batch essential oil, fragrance, or cannabinoid distillation runs requiring precise thermal control. Heating power of 450W and stirring power of 20W provide sufficient energy for moderate boiling points under deep vacuum. The glass fiber insulated mantle reduces heat loss, though the 15 L chiller tank limits continuous duty cycles for high-throughput production.

Highlights

  • 2 L capacity processes larger batches per run
  • 110 V 60 Hz power suits standard North American outlets
  • Borosilicate GG17 glass resists thermal shock and chemical attack
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation efficiency
  • Detachable 10 mm hose barbs simplify safe fluid connections

Specifications

TypeShort-Path Distillation
Capacity2L
Voltage110V

Questions about this item

Does the 450 W heating mantle or the 180 W vacuum pump need routine part replacement?

The glassware and magnetic stir bar are the only consumables; the mantle has no user-serviceable heater element and the SHZ-D(III) pump uses a sealed diaphragm that runs without oil changes.

Which specification caps continuous distillation runs first?

The 15 L chiller tank limits session length; once the circulating fluid absorbs 450 W of heat it must be cooled or swapped before vacuum drops below 0.098 MPa.

How loud and hot does the 110 V system get during an all-day run?

The pump produces a steady 60 L/min flow hum and the mantle surface reaches operating temperature, so expect noticeable fan noise and warm exhaust air in a small lab.
