20L short-path distillation kit with glassware, cold trap and 110V heating mantle

HNZXIB

HNZXIB SPD-20L 20L Short Path Distillation Kit 110V

SKU CH-XHNS-NQ31V MPN SPD-20L

20 L short-path distillation kit with vacuum-jacketed adapter, four Vigreux stages, 110 V heating mantle and magnetic stirring

  • TypeShort-Path Distillation
  • Capacity20L
  • Voltage110V
  • 20 L capacity handles large batch distillation
  • GG17 high borosilicate glass resists thermal shock
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation
  • 110 V heating mantle with magnetic stirring ensures uniform heating
  • 1800 W heating power reaches temperature quickly

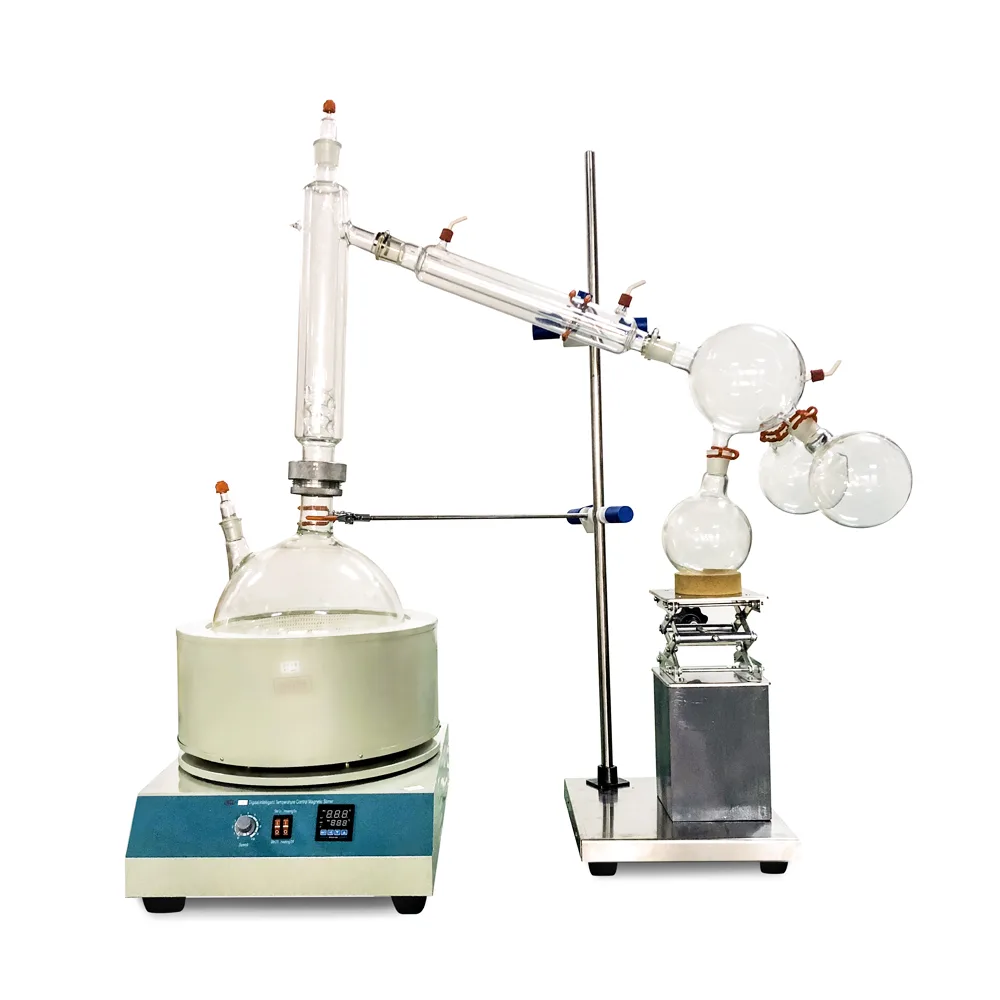

20L Short-Path Distillation Kit

The HNZXIB SPD-20L is a 20-litre short-path distillation system built for laboratory enrichment, crystallisation, drying and solvent recycling. It ships with a vacuum-jacketed adapter, a cold trap and an 110 V heating mantle that includes magnetic stirring. The apparatus targets university, bio-pharmaceutical and petrochemical workflows where thermal separation under reduced pressure is required.

GG17 Borosilicate Glass Assembly

All glassware uses GG17 high borosilicate glass for chemical stability and mechanical strength. The vacuum-jacketed distillation head incorporates four Vigreux stages to improve vapour fractionation. The heating mantle liner is woven from high-temperature alkali-free glass fibre; initial heating produces white smoke and turns the liner brown as manufacturing residues burn off, which is normal.

1800 W Heating Mantle Under Load

The mantle delivers 1800 W of heating power and 80 W of stirring power from a 110 V, 60 Hz supply. Vacuum capability reaches 0.098 MPa for sustained low-pressure operation. The sealed resistance wire and hemispherical heater design maintain insulation performance during extended runs, while the intelligent digital display allows continuous monitoring of temperature and stirring speed.

Highlights

  • 20 L capacity handles large batch distillation
  • GG17 high borosilicate glass resists thermal shock
  • Vacuum-jacketed adapter with 4 Vigreux stages improves separation
  • 110 V heating mantle with magnetic stirring ensures uniform heating
  • 1800 W heating power reaches temperature quickly

Specifications

TypeShort-Path Distillation
Capacity20L
Voltage110V

Questions about this item

How can I verify the distillation kit is operating correctly after assembly?

The digital display on the heating mantle shows the actual temperature while the magnetic stirrer runs at 80 W, and the vacuum gauge should read 0.098 Mpa once the system reaches full vacuum.

What components are included and what must I supply myself?

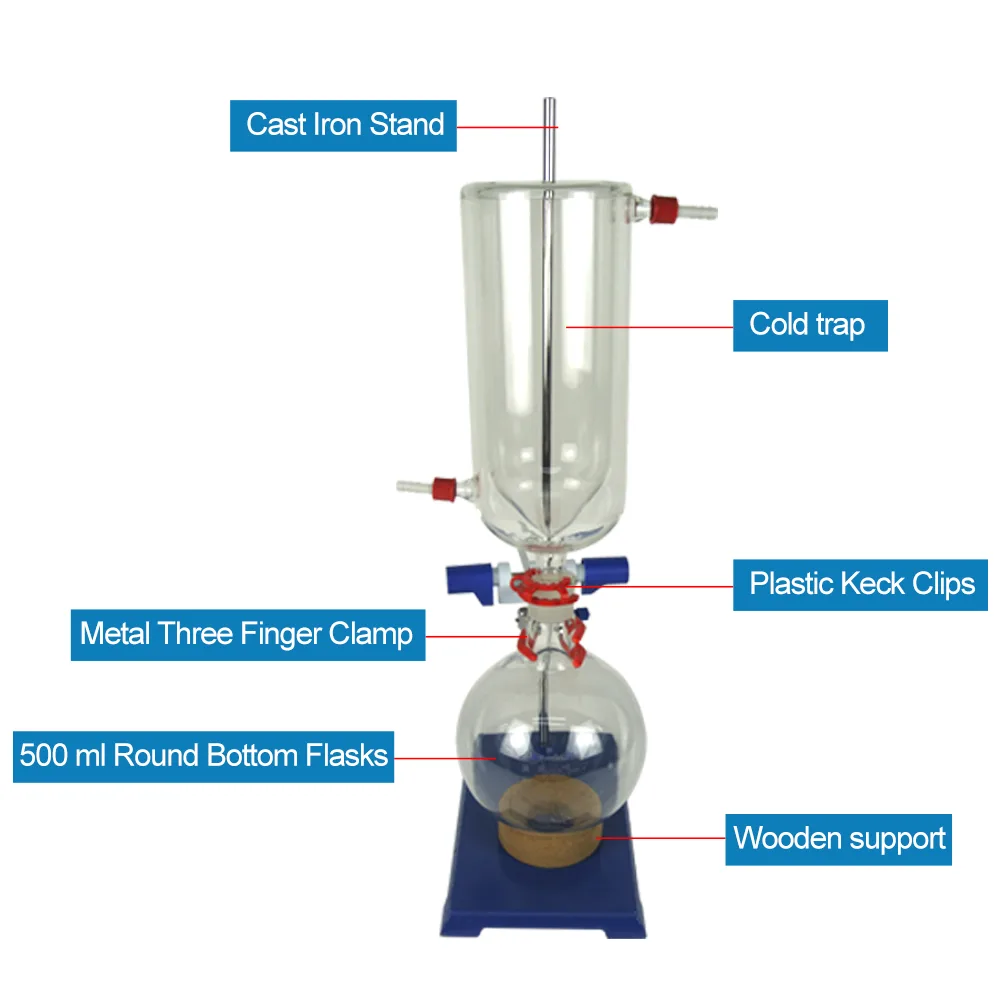

The kit includes the GG17 borosilicate glassware with a vacuum-jacketed adapter featuring four Vigreux stages, a 20 L heating mantle with magnetic stirring, and a cold trap; you will need to provide a vacuum pump, receiving flasks, and any solvents or samples.

Which voltage version should I select for a standard US laboratory circuit?

Choose the 110 V / 60 Hz model, which draws 1800 W for heating and matches typical North American outlets; the 220 V version is offered for regions with that supply voltage.
