20 L jacketed glass reactor on stainless steel frame with motor and PTFE agitator

HNZXIB

HNZXIB S-20L 20L 110V Jacketed Glass Reactor laboratory supply

SKU CH-7TY3-64MJV MPN S-20L

20L jacketed glass reactor with 110V electric stir motor, PTFE agitator, and vacuum-capable double-layer design for heating or cooling reactions

  • TypeGlass Reactor
  • Capacity20L
  • Voltage110V
  • 20 L capacity handles large-batch synthesis
  • 110 V 50/60 Hz supply fits standard lab mains
  • 0–600 rpm gear motor with 1200 g·cm torque ensures thorough mixing
  • GG17 high-borosilicate glass resists thermal shock and chemical attack
  • SUS304 stainless-steel frame provides rigid, corrosion-resistant support

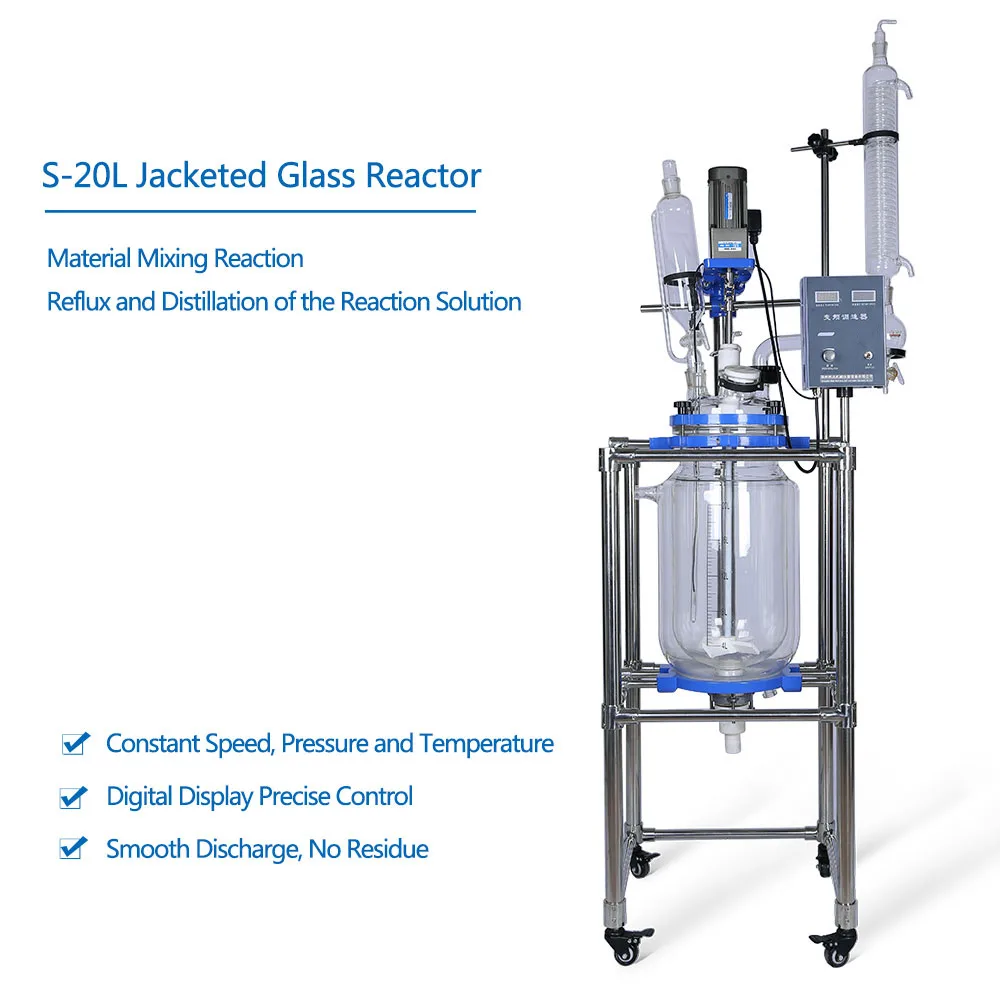

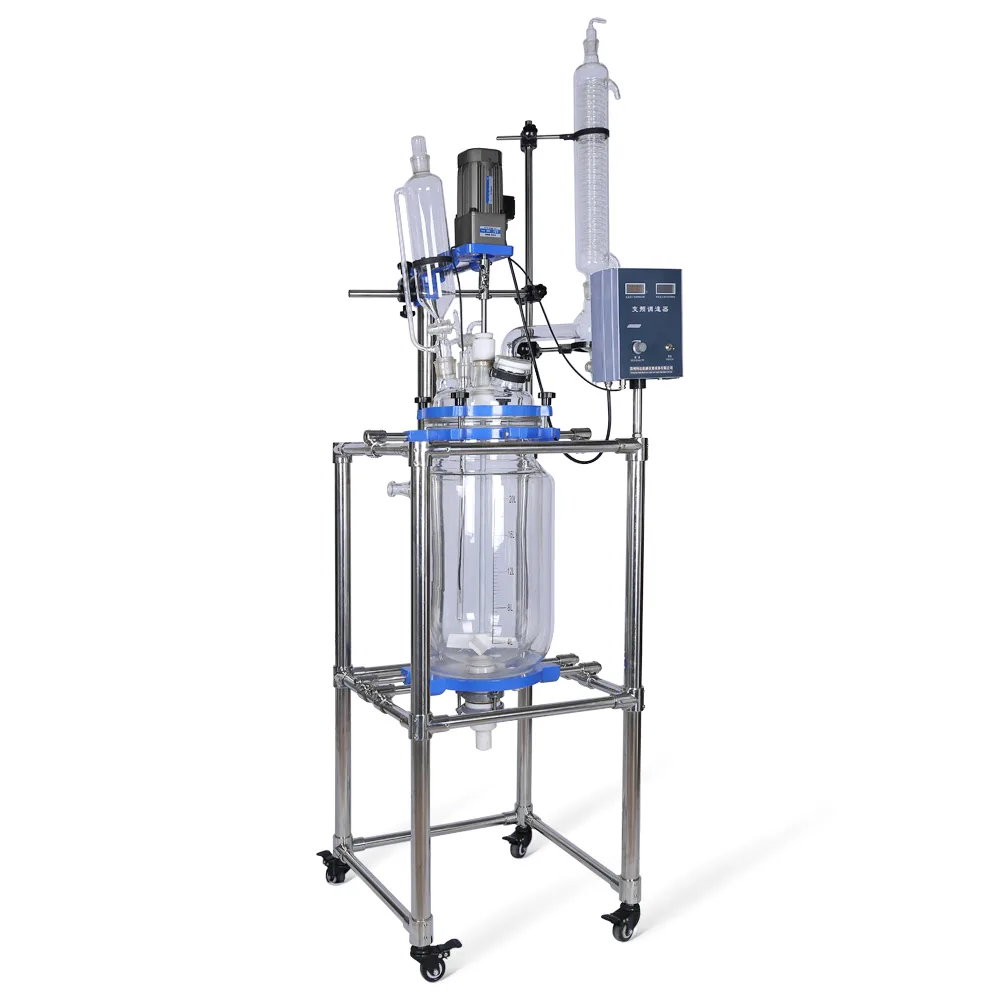

20L Jacketed Glass Reactor

The HNZXIB S-20L is a 20-litre double-layer glass vessel designed for laboratory synthesis, biopharmaceutical work and new-material preparation. It operates on a 110V 50/60Hz supply and uses GG17 high-borosilicate glass for chemical resistance and high transparency.

Electric Stir Motor with PTFE Agitator

A 120W gear motor drives a 12mm PTFE stirring shaft through a universal joint at speeds from 0 to 600 rpm, with a maximum of 1300 rpm and 1200 g·cm torque. The stainless-steel SUS304 frame supports the assembly, while a reserved glass thermometer casing and LCD display allow direct temperature monitoring of the reaction solution.

Vacuum and Thermal-Cycling Limits

The inner layer runs under vacuum or negative pressure for stirring reactions, while the jacket circulates heat-transfer fluid — hot oil, water or freezing liquid — for heating or cooling. A bottom drain valve simplifies product removal, and the large bottle mouth eases cleaning, but the unit provides no internal temperature control beyond the external circulating medium.

Highlights

  • 20 L capacity handles large-batch synthesis
  • 110 V 50/60 Hz supply fits standard lab mains
  • 0–600 rpm gear motor with 1200 g·cm torque ensures thorough mixing
  • GG17 high-borosilicate glass resists thermal shock and chemical attack
  • SUS304 stainless-steel frame provides rigid, corrosion-resistant support

Specifications

TypeGlass Reactor
Capacity20L
Voltage110V

Questions about this item

How often should the PTFE agitator and universal joint be inspected or replaced on the S-20L?

The PTFE agitator and universal joint should be inspected regularly for wear or chemical degradation; replacement timing depends on the specific solvents and temperatures used in each run.

What is the maximum continuous stirring speed before torque drops off on the S-20L?

The motor delivers 1200 g·cm torque up to 600 rpm; speeds up to 1300 rpm are possible but with reduced torque for lighter viscosities.

How much heat does the 120 W motor add to the jacketed vessel during all-day operation?

The 120 W stir motor contributes a modest heat load; the double-layer jacket with circulating fluid is designed to remove reaction heat quickly, keeping the inner solution at the set temperature.
