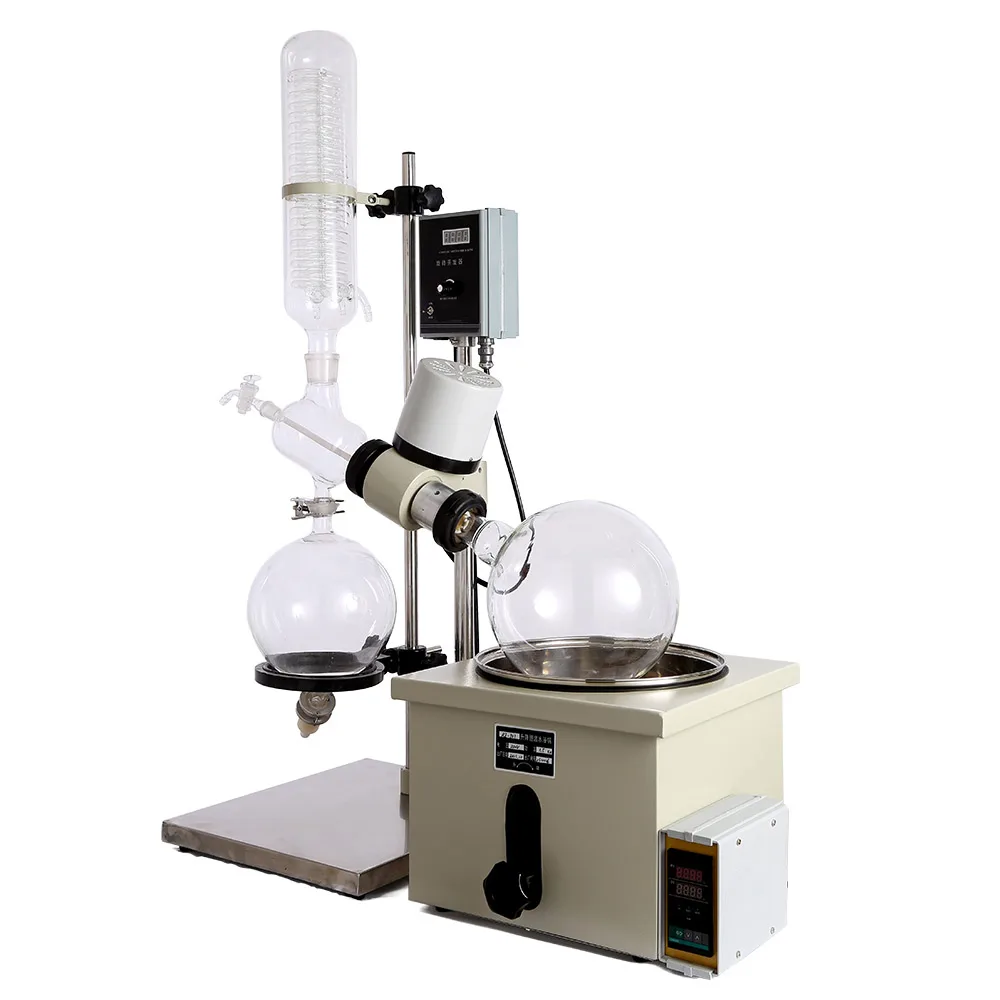

Stainless steel frame with vertical glass condenser, 5L evaporating flask and 3L receiving flask, digital speed display

HNZXIB

HNZXIB RE-501 5L Rotary Evaporator 110V

SKU CH-CYDR-SWXQ4

A 5 L rotary evaporator with digital speed control up to 120 r/min, 1500 W water-oil bath, manual screw lift and PTFE-fluoro rubber sealing for efficient solvent recovery

  • TypeRotary Evaporator
  • Capacity5L
  • Voltage110V
  • 5 L evaporating flask handles large batch volumes
  • Digital 0–120 r/min speed control with 40 W motor for precise rotation
  • ±1 °C bath accuracy from 1500 W heater ensures stable distillation
  • PTFE and fluoro-rubber seals resist corrosion at 0.098 Mpa vacuum
  • Manual screw lift with 150 mm travel simplifies flask positioning

5L rotary evaporator for laboratory distillation

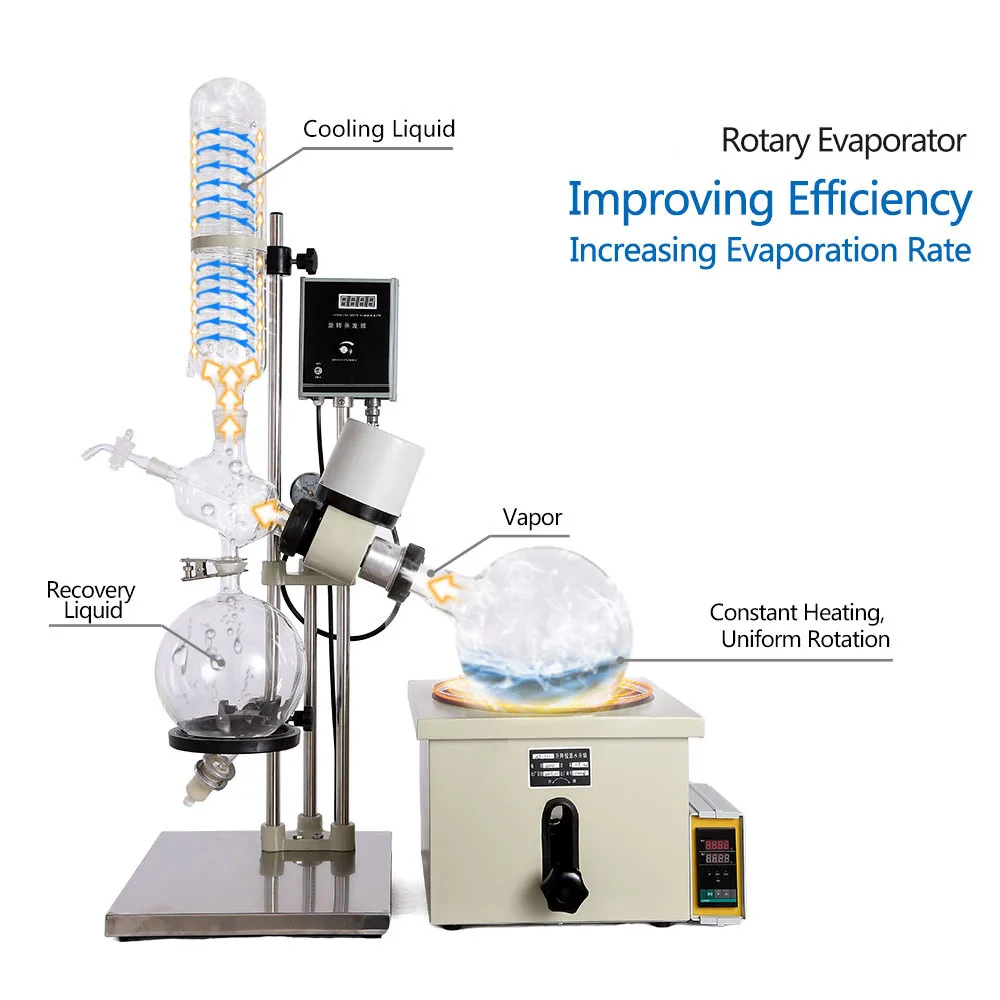

The RE-501 is a 5L rotary evaporator designed for solvent concentration and purification in laboratory environments. It operates on 110V 60Hz power with a US plug, and a 220V option is available. The system combines a rotating flask, heated bath and glass condenser to handle heat-sensitive biological materials.

Sustained evaporation at controlled temperature

A 40W motor provides stepless speed regulation from 0 to 120 r/min with digital display, while the 1500W water or oil bath maintains temperature accuracy within ±1°C. The double backflow condenser and PTFE with fluoro rubber seals sustain a vacuum degree of 0.098Mpa for continuous recovery into the 3L receiving flask.

Corrosion-resistant glassware

High borosilicate glassware resists chemical attack, and the stainless steel and aluminum alloy chassis with special plastic components adds further corrosion resistance. A screw rod manual lift offers 0 to 150mm of vertical travel, and the bath measures 28cm diameter by 17cm depth for stable heating.

Highlights

  • 5 L evaporating flask handles large batch volumes
  • Digital 0–120 r/min speed control with 40 W motor for precise rotation
  • ±1 °C bath accuracy from 1500 W heater ensures stable distillation
  • PTFE and fluoro-rubber seals resist corrosion at 0.098 Mpa vacuum
  • Manual screw lift with 150 mm travel simplifies flask positioning

Specifications

TypeRotary Evaporator
Capacity5L
Voltage110V

Questions about this item

How much motor power does the RE-501 draw during continuous operation?

The motor is rated at 40 W with stepless speed regulation from 0 to 120 r/min, so power draw stays low even when running all day.

What bath and glassware are required before the RE-501 can operate?

You need a 28 cm diameter water or oil bath and high-borosilicate glassware — a 5 L evaporating flask, 3 L receiving flask and the double-backflow condenser are all included.

Can the manual screw-lift and 150 mm travel accommodate my existing bench setup?

The screw-rod lift provides 0–150 mm of manual height adjustment, letting you position the flask over most standard baths and bench clearances.
