Large stainless steel rotary evaporator with 50L glass flasks vertical condenser handwheel lift water bath digital control panel

HNZXIB

HNZXIB RE-5002 50L Rotary Evaporator 220V

SKU CH-2WM1-RMVHR

A 50 L rotary evaporator with digital speed control up to 90 r/min, a vertical double condenser offering 1.5 m² cooling surface, and a 7000 W water bath for solvent separation

  • TypeRotary Evaporator
  • Capacity50L
  • Voltage220V
  • 50 L capacity handles large-volume solvent recovery
  • 9 L/h evaporation rate accelerates concentration workflows
  • 7 000 W water bath reaches 99 °C for rapid heating
  • Digital 0–90 r/min speed control ensures precise rotation
  • PTFE sealing system maintains 0.098 MPa vacuum integrity

50L Rotary Evaporator for Industrial Solvent

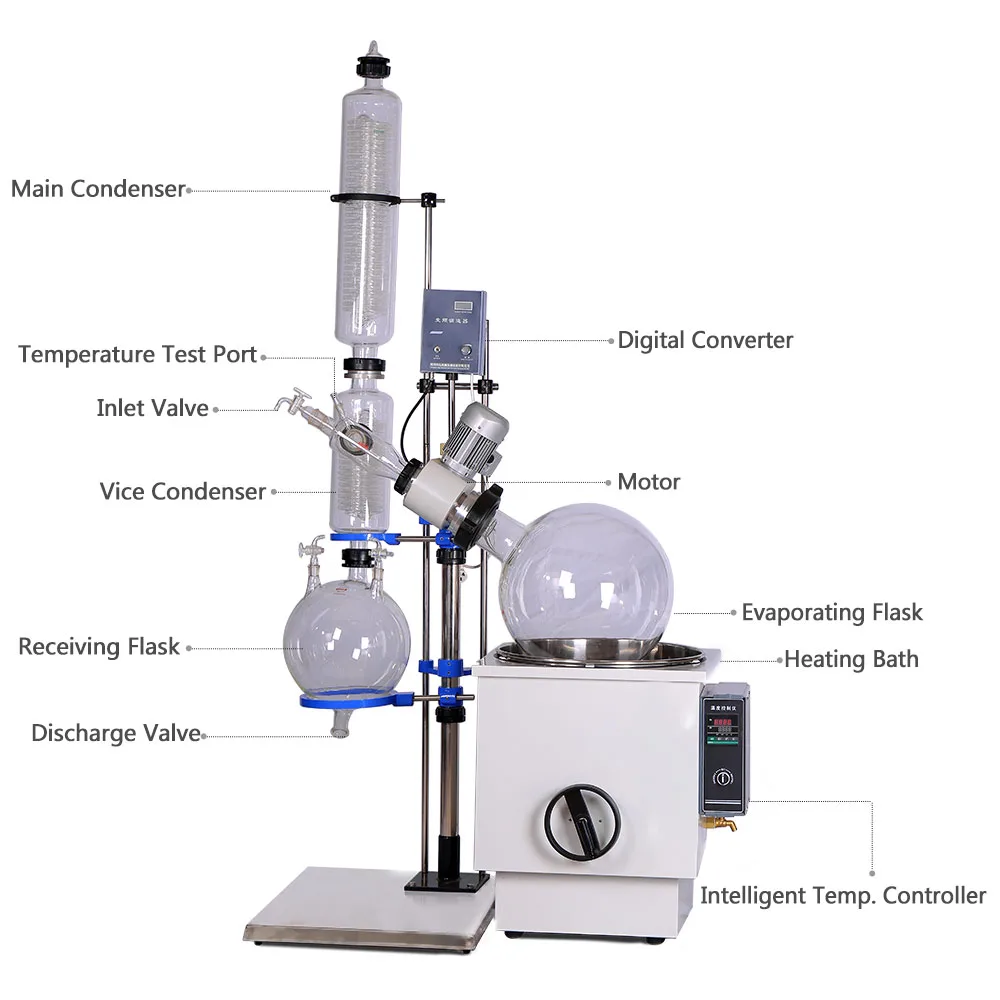

The HNZXIB RE-5002 is a 50L rotary evaporator designed for large-scale solvent separation and essential oil concentration in laboratory and plant environments. It operates on a 220V supply with a 7000W heating bath and a 250W motor driving rotation speeds up to 90 r/min. The vertical double condenser provides a 1.5m² cooling surface for high recovery rates.

Upgrade from Smaller Benchtop Units for Continuous

This system replaces smaller benchtop rotavaps when evaporation throughput must exceed 9 L/H for water-based solvents. The jump is justified when batch volumes approach the 50L flask capacity and continuous operation demands the digital speed display and PTFE sealing system for consistent vacuum performance at 0.098Mpa. It is not suited for labs needing only occasional small-volume distillation.

Handwheel or Electric Hoist Lifting with Air

Installation is simplified by the handwheel lifting mechanism or optional electric hoist for the water bath, allowing easy flask positioning without heavy lifting. The unit ships in a wooden case and requires the user to provide an air switch as no plug is fitted. Electrical planning is critical: 110V operation draws up to 64A, so 380V three-phase supply is recommended where available.

Highlights

  • 50 L capacity handles large-volume solvent recovery
  • 9 L/h evaporation rate accelerates concentration workflows
  • 7 000 W water bath reaches 99 °C for rapid heating
  • Digital 0–90 r/min speed control ensures precise rotation
  • PTFE sealing system maintains 0.098 MPa vacuum integrity

Specifications

TypeRotary Evaporator
Capacity50L
Voltage220V

Questions about this item

What size evaporating and receiving flasks does the RE-5002 use?

Both the evaporating flask and the receiving flask are 50L, matching the unit's stated capacity.

How is the RE-5002 connected to power, and what common mistake should be avoided?

The unit ships with no plug; it must be wired to a dedicated air switch. Do not attempt to run it on a standard 110V outlet, as current can reach 64A.

Which sealing components will need periodic replacement on the RE-5002?

The PTFE sealing system maintains the 0.098Mpa vacuum; plan to replace PTFE seals and gaskets as they wear to preserve vacuum performance.
