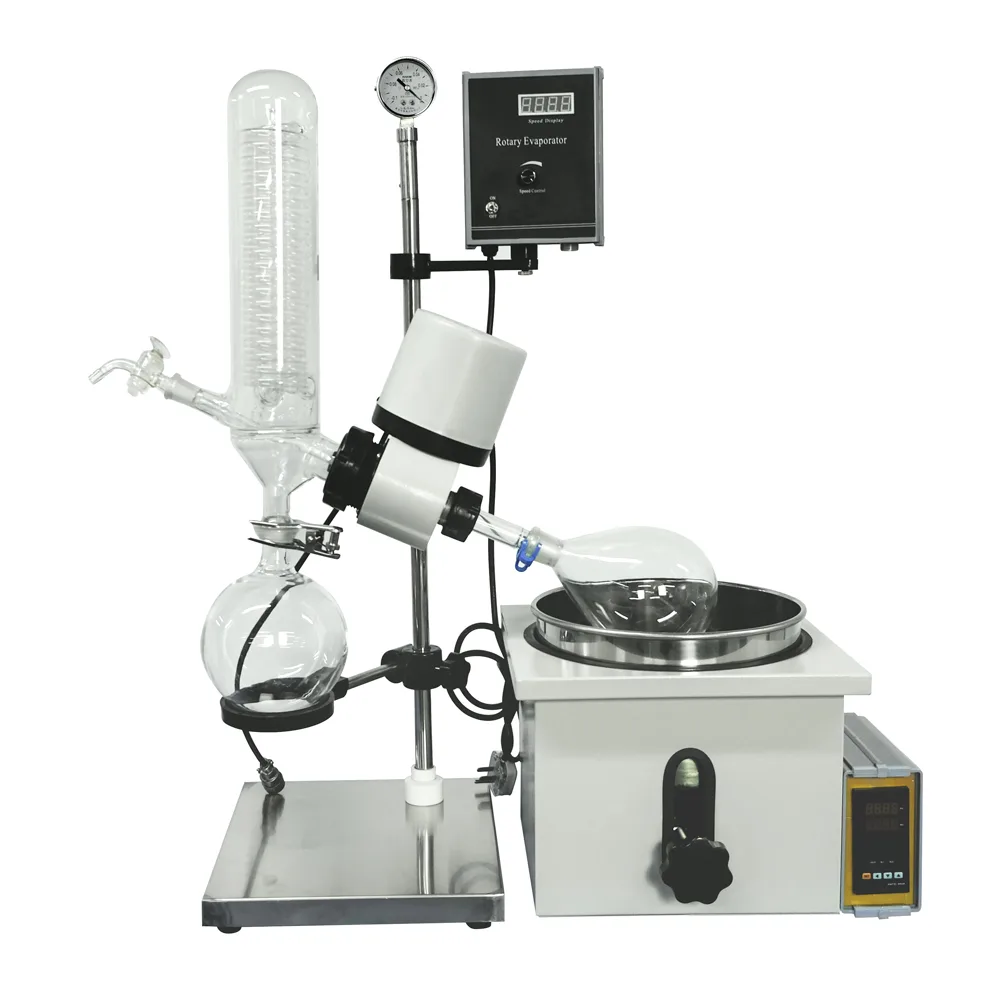

2L rotary evaporator with glass condenser, water bath and vacuum pump on metal frame

HNZXIB

HNZXIB RE-201D 2L Rotary Evaporator 110V

SKU CH-V0JG-3K786

A 2 L rotary evaporator with digital speed control up to 120 r/min, manual bath lift of 150 mm, 1200 W heating, PTFE and fluoro-rubber seals.

  • TypeRotary Evaporator
  • Capacity2L
  • Voltage110V
  • 2 L capacity handles mid-scale distillation batches
  • 0–120 rpm digital speed control optimises evaporation rate
  • ±1 °C bath accuracy protects heat-sensitive compounds
  • PTFE and fluoro-rubber seals resist aggressive solvents
  • Turnkey package includes vacuum pump and chiller

2L Rotary Evaporator System

The HNZXIB RE-201D is a 2-litre rotary evaporator supplied as a turnkey combination with a SHZ-D(III) vacuum pump and a DLSB5/10 chiller. It operates on 110V/60Hz power with a US plug and features a manual screw lift for the water or oil bath. The unit is designed for laboratory distillation, concentration and purification tasks where gentle heating is required.

Capacity and evaporation headroom

The evaporating flask holds 2 litres with a 24# conical ground joint, while the receiving flask accommodates 1 litre. Digital speed control runs from 0 to 120 r/min and the bath provides 1200W heating with ±1°C accuracy. Vacuum reaches 0.098Mpa for efficient solvent recovery, though the fixed 2L flask size limits batch volume and the manual lift restricts height adjustment to 150mm.

Thermals, noise and power draw

The 1200W bath and 40W motor draw modest power on a standard 110V circuit. High borosilicate glassware and PTFE/fluoro rubber seals resist corrosion during extended runs. The double backflow condenser and circulating chiller manage solvent vapours effectively, while the stainless steel and aluminium chassis keeps the assembly stable. Wooden crate packaging protects the glass components during transit.

Highlights

  • 2 L capacity handles mid-scale distillation batches
  • 0–120 rpm digital speed control optimises evaporation rate
  • ±1 °C bath accuracy protects heat-sensitive compounds
  • PTFE and fluoro-rubber seals resist aggressive solvents
  • Turnkey package includes vacuum pump and chiller

Specifications

TypeRotary Evaporator
Capacity2L
Voltage110V

Questions about this item

Will the 110V RE-201D work on the same circuit as my older 110V chiller?

Yes, the RE-201D runs on 110V/60Hz with a US plug, matching standard North American lab circuits used by older equipment.

How can I verify the vacuum pump is pulling the rated 0.098Mpa after setup?

Watch the vacuum gauge on the SHZ-D(III)2TAP pump; it should read 0.098Mpa when the system is sealed and the pump is running.

Does the turnkey crate include the 2L evaporating flask and 1L receiving flask, or must I order them separately?

The crate ships with the RE-201D, SHZ-D(III)2TAP vacuum pump, DLSB5/10 chiller, a 2L 24# evaporating flask and a 1L ball-joint receiving flask.
