5 L rotary evaporator on metal frame with vertical glass condenser, stainless steel bath and electric lift

HNZXIB

HNZXIB R1005 5L Rotary Evaporator 220V

SKU CH-9J5B-GZ2MN MPN R1005

A 5 L rotary evaporator with electric lift, digital speed control from 20 to 140 RPM, vertical double-coil condenser and a double-tap vacuum pump, operating on 220 V

  • TypeRotary Evaporator
  • Capacity5L
  • Voltage220V
  • 5 L capacity handles larger batches
  • Electric lift with 100 mm stroke for easy flask handling
  • Digital frequency conversion gives 20–140 rpm stepless speed control
  • PTFE and fluorine rubber double seal maintains high vacuum
  • Vertical double-coil condenser for efficient solvent recovery

5 L rotary evaporator for laboratory distillation

The HNZXIB R1005 is a 5 L rotary evaporator designed for solvent recovery and concentration in laboratory settings. It operates on a 220 V supply and includes a water-circulating vacuum pump. The system suits chemists and technicians who need efficient evaporation for biological samples that decompose at high temperatures.

Bundled vacuum pump enables continuous collection

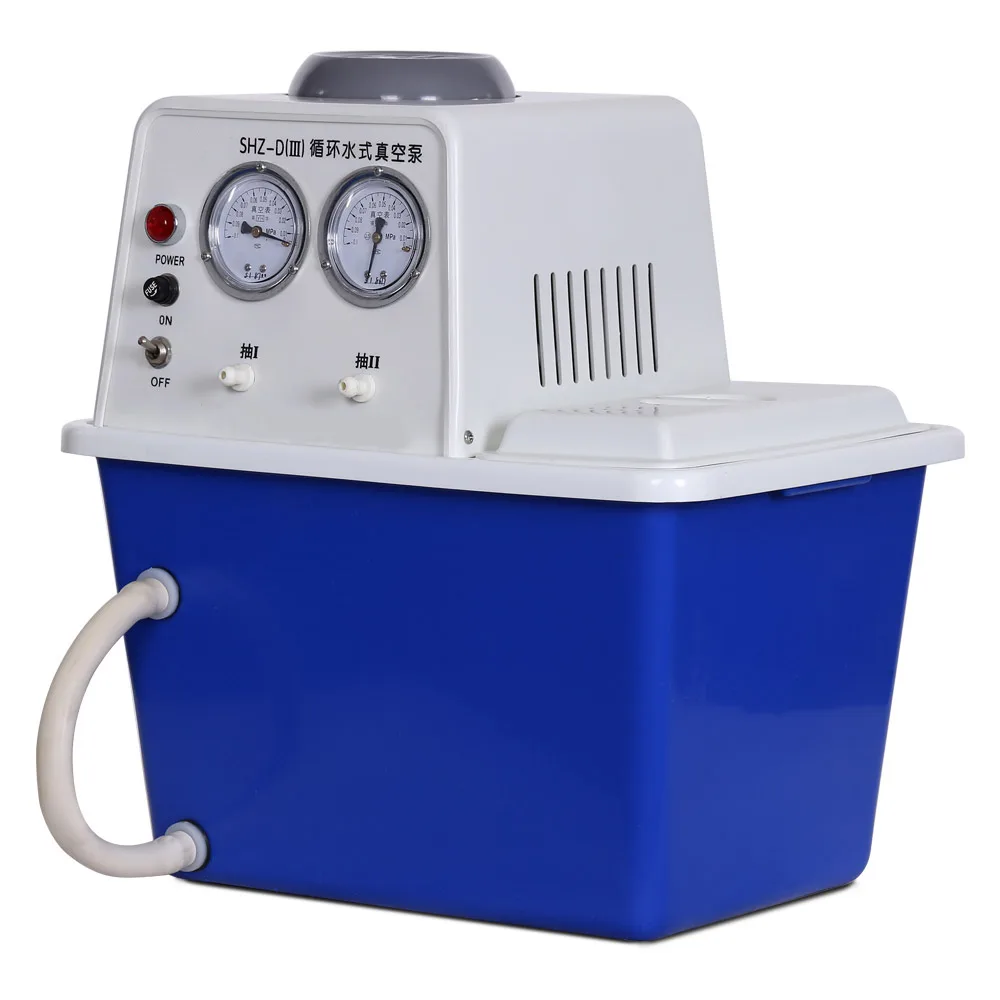

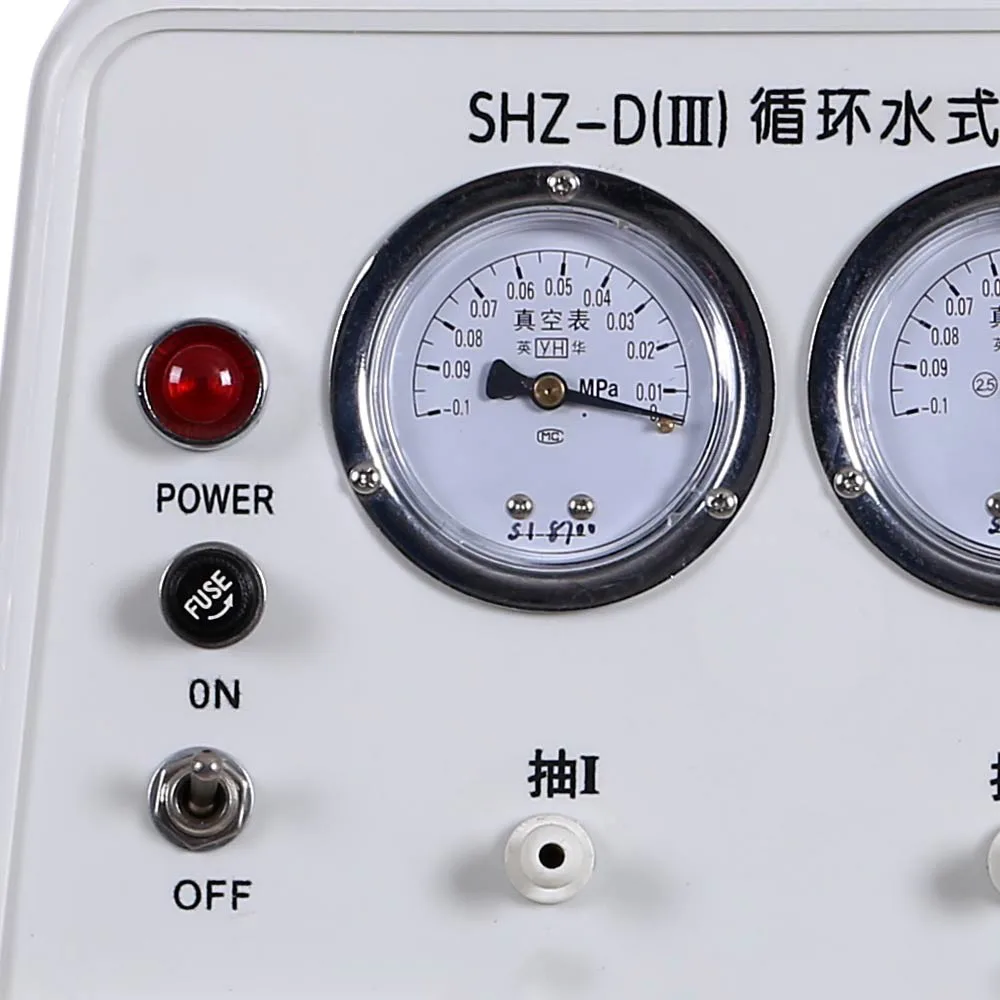

The package combines the R1005 rotavap with an SHZ-D(III) double-tap water circulating vacuum pump. This pairing allows continuous collection without breaking vacuum during distillation. A PTFE discharge valve provides corrosion resistance and prevents contamination of the recovered solvent.

Electric lift and digital speed control for daily

The main unit offers electric lifting with a 100 mm stroke and digital frequency-conversion speed regulation from 20 to 140 RPM. A vertical double-coil condenser and stainless-steel water bath support the 2.0 kW total power draw. The apparatus measures 660×400×1020 mm and functions in ambient temperatures from 5 to 35 °C.

Highlights

  • 5 L capacity handles larger batches
  • Electric lift with 100 mm stroke for easy flask handling
  • Digital frequency conversion gives 20–140 rpm stepless speed control
  • PTFE and fluorine rubber double seal maintains high vacuum
  • Vertical double-coil condenser for efficient solvent recovery

Specifications

TypeRotary Evaporator
Capacity5L
Voltage220V

Questions about this item

How often should the PTFE and fluorine rubber double rotating seal be replaced?

The patented Teflon and fluorine rubber double rotating seal is designed to maintain high vacuum; replacement interval depends on solvent exposure and operating hours rather than a fixed schedule.

What limits continuous operation at the maximum 140 RPM and 2.0 kW power draw?

The electric lift stroke of 0 to 100 mm and the digital frequency conversion speed control define the mechanical and thermal envelope during sustained runs.

How much heat does the 2.0 kW system add to a lab running all day at 35 °C ambient?

At full 2.0 kW load the evaporator and its water bath release roughly 2 kW of heat into the room, raising the cooling demand accordingly.
